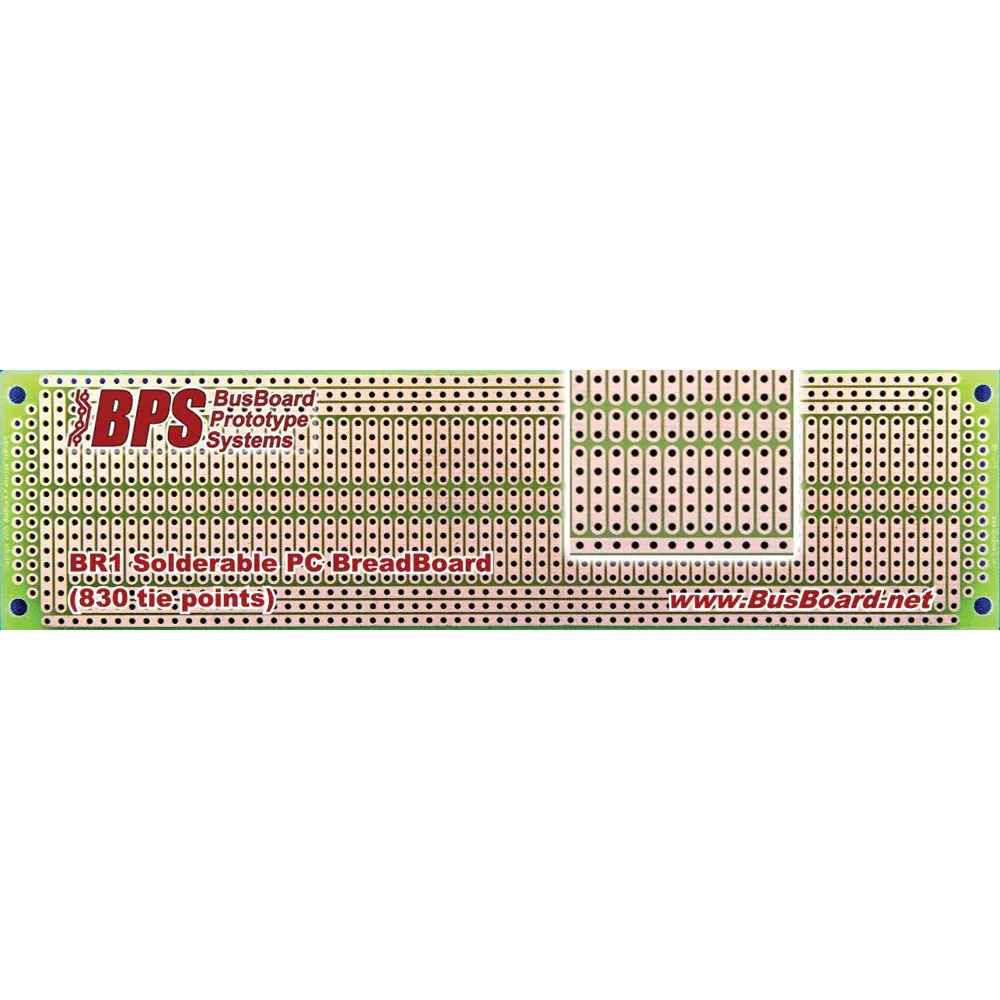

The BR1 Solderable PC BreadBoard enables you to transfer your circuit and wires from a plug-in breadboard without recutting wires or changing your layout. The BR1 has the same pattern and spacing as a standard 830-point solderless plug-in breadboard. It has a standard 5-hole strip for each IC pin, just like solderless breadboards. However, it has the advantage that soldered joints provide a more reliable long-term connection than solderless contacts.

The BR1 has four power rails like solderless breadboards, plus two bonus rails for power or signals. There are bonus two-hole pads along the centerline allowing DIL (dual in-line) headers to be used.

BPS prototyping boards use high-quality FR4 glass epoxy PCBs for long life, with an anti-tarnish protective coating for easy soldering. BPS boards are lead-free and RoHS compatible.

Features:

  • Same pattern and spacing as a standard 830 connection point solderless plug-in breadboard.
  • Single-sided high-quality FR4 glass-epoxy circuit board.
  • 1oz/ft² copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
  • 1226 holes, 0.042" holes are drilled on 0.1" (2.54mm) centers. 4 mounting holes.
  • 1.85" wide, 7.05" long, 1/16" thick (47 x 179 x 1.6mm).

Related Products:

Product Identification

Product Type:Solderable Breadboard

Dimensions & Appearance

Width:1.9 in.
Length:7.1 in.
Mounting Hole:0.14 in. (4)

Features

Sides:Single
Power / Ground Busses:6
Pitch:0.1 in., 2.54 mm
Hole Size:0.042 in.
Circuit Pattern:830-pt breadboard. Power/Ground rails. Bonus pads.
Thickness:0.0625 in.
Plating:Epoxy Glass
No. Of Holes:1226
,
