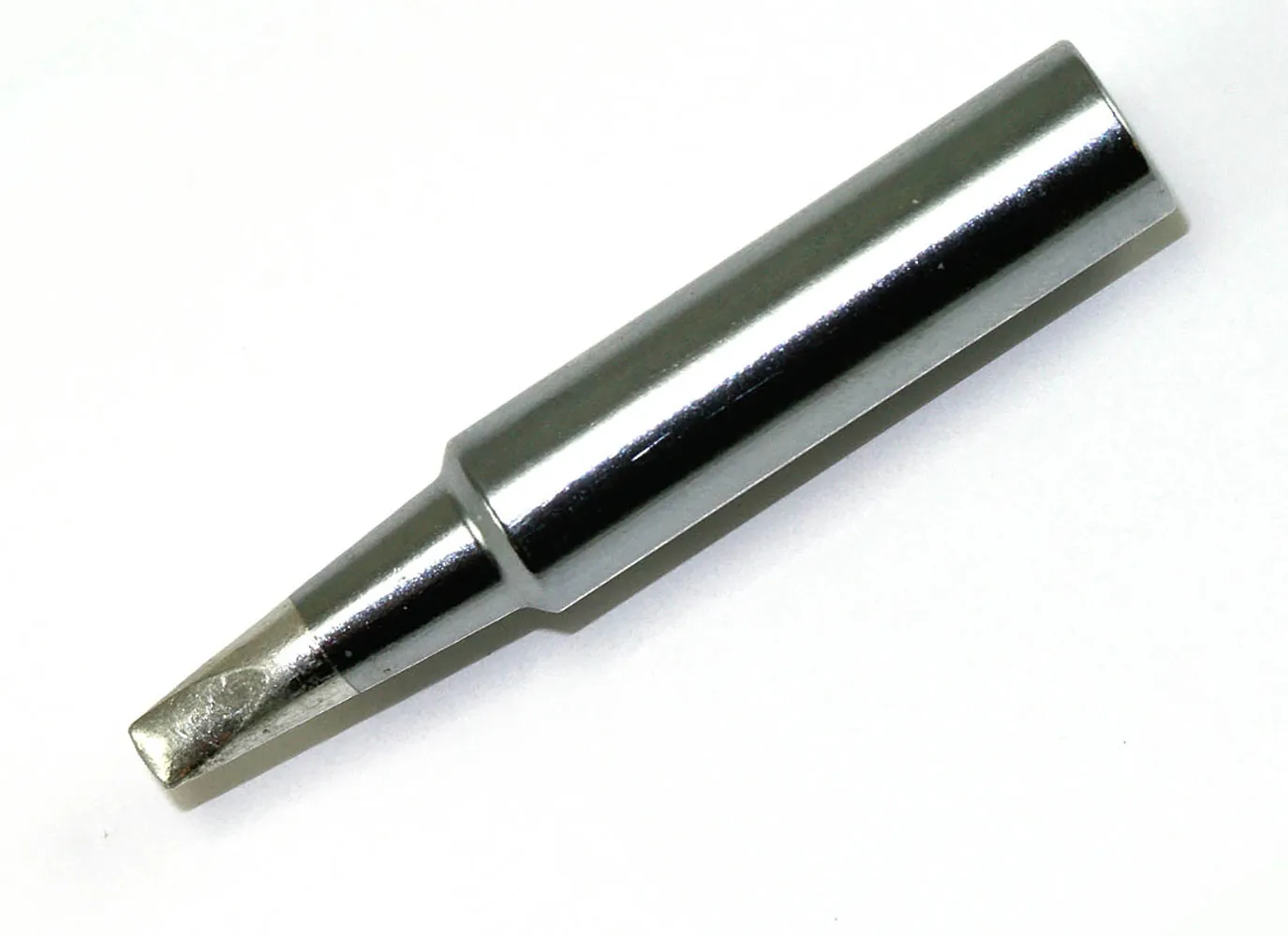

Solder Tip 2.4mm Chisel T18-Series for Hakko Stations

Specifications

  • T18 series
  • 2.4 mm wide chisel tip
  • Compatible with the following Hakko Soldering Stations and Systems:
    • Hakko FX-888 Soldering Station
    • Hakko 913 ESD Safe Fume Extraction Iron (Requires a Fume Extraction System)
    • Hakko 907 Soldering Iron
    • Hakko 907-ESD Soldering Iron
    • Hakko 900M Soldering Iron
    • Hakko 900M-ESD Soldering Iron
    • Hakko 928 Soldering Station
    • Hakko 936 Soldering Station
    • Hakko 936-ESD Soldering Station
    • Hakko 937 Soldering Station
    • Hakko 703 Soldering Station
    NOTE: This tip replaces part number 900M-T-2.4D

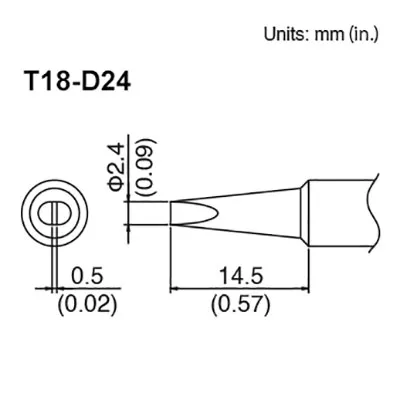

Dimensional Drawing

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Length:14.50 mm

Features

Tip Shape:Chisel
Tip Size:2.4 mm

Related products

For Use With:703, 900M, 900M-ESD, 907, 907-ESD,913, 928, 936, 936-ESD, 937, FX-888
,
