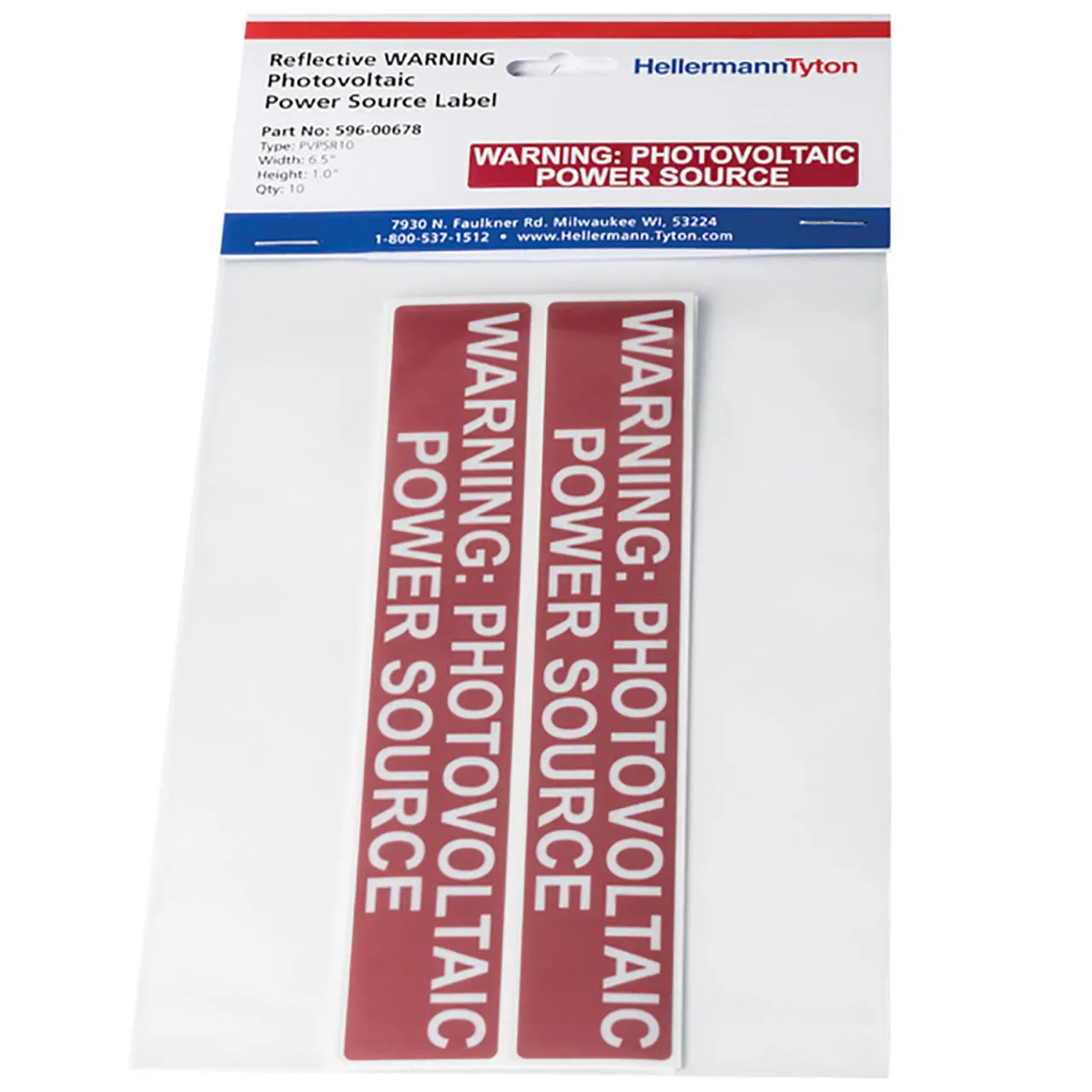

Solar Label, Reflective, Warning Photovoltaic Power Source, 6.5" x 1.0", VL, Red, 10 per Package

Features

• Made with UV-stable inks and materials for durability and weather resistance. Polyester is resistant to chemicals and solvents and will remain legible in dirty environments. Abrasion resistant for high-performance identification. Meets NEC and IFC standards for printed text, character height, color and outdoor UV stability to pass inspections.
• Product Type: Solar Identification

Technical Specifications

• Material: Type 505/281, UV stabilized, reflective vinyl with clear polyester laminate (505/281)
• Operating Temperature: -40°F to +174°F (-40°C to +79°C)
• Color: Red (RD)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Adhesive: Acrylic
• Adhesive Operating Temperature: -40°F to +174°F (-40°C to +79°C)
• Color of Print: White (WH)
• Focused Markets and Industries: Solar Energy Sector
• Height H (Imperial): 1.0"
• Height H (Metric): 25.40 mm
• Installation Temperature: +50°F (+10 °C)
• Labels per Column: 1
• Labels per Row: 1
• Thickness T (Imperial): 0.0025"
• Thickness T (Metric): 64.0 µm
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• Width of Liner WL (imperial): 1.125"
• Width of Liner WL (metric): 28.57 mm
• Width W (Imperial): 6.5"
• Width W (Metric): 165.1 mm
• CE Certified: No
• CSA Certified: No
• Halogen Free: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL-File Number + Logo: MH16736 [RU]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): Yes
• UPC: 089306368526

Overview

HellermannTyton makes it easier than ever for solar installers to meet PV labeling codes. Solar Label Convenience Packs allow installers to quickly and economically purchase high quality preprinted NEC code-compliant solar installation labels. Packaged in 10-count quantities to meet the needs of smaller scale solar installations and independent contractors, Solar Label Convenience Packs are available in HellermannTyton’s most popular preprinted NEC code-compliant solar label formats. Each Solar Label Convenience Pack contains 10 solar installation labels. Choose from a variety of regular and reflective preprinted labels. For enhanced durability, clear laminate overlay labels are also available in a convenience pack.
