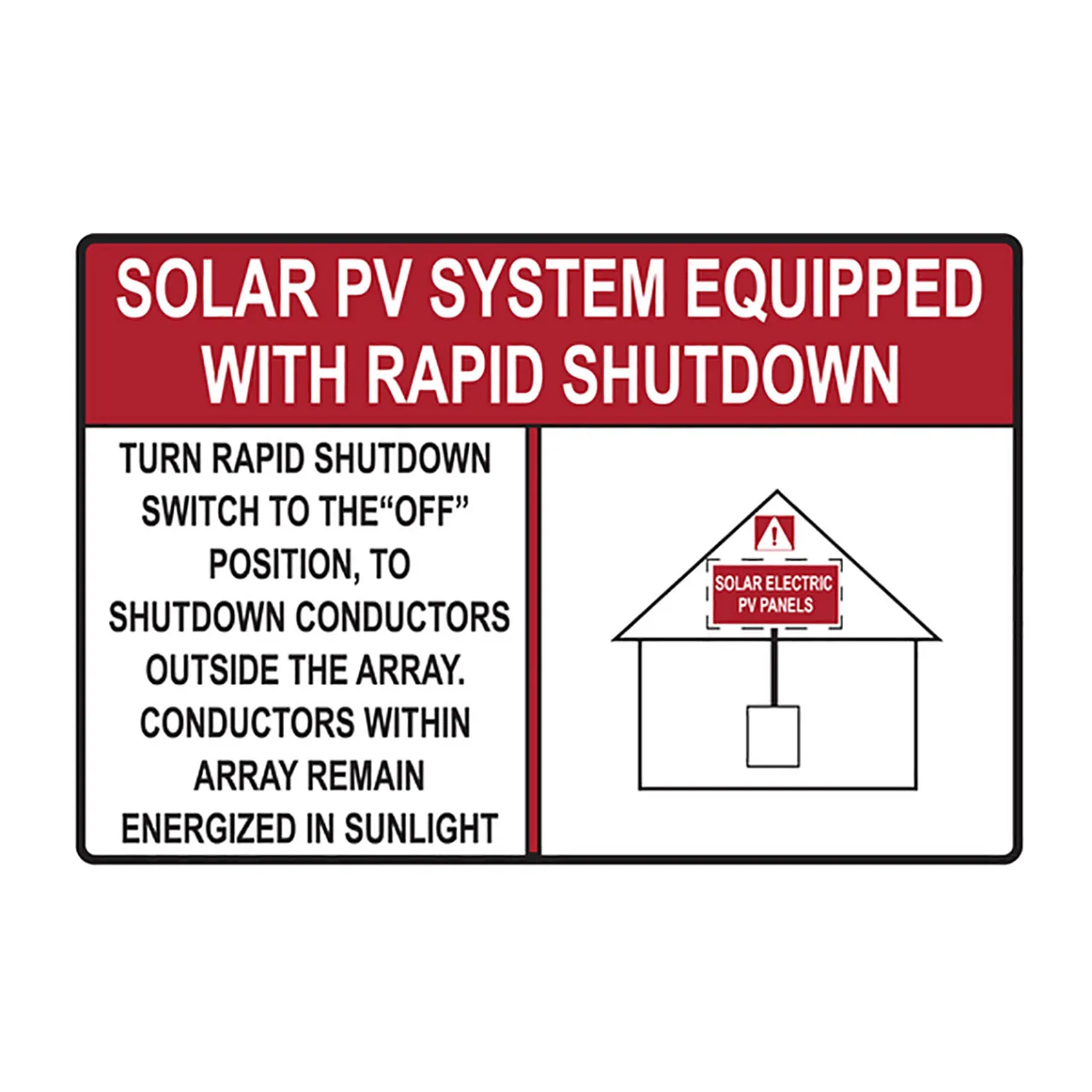

Solar Label, Reflective, SOLAR PV SYSTEM…SHUTDOWN, 6.0" x 4.0", VL, Red, 50/roll

Features

• Made with UV-stable inks and materials for durability and weather resistance. Reflective properties to meet applicable NEC code requirements for reflective identification. Supplied with an aggressive adhesive to ensure long life. Meets NEC & IFC standards for printed text, character height, color and outdoor UV stability to pass inspections.
• Product Type: Solar Identification

Technical Specifications

• Material: Type 505/281, UV stabilized, reflective vinyl with clear polyester laminate (505/281)
• Operating Temperature: -40°F to +174°F (-40°C to +79°C)
• Color: Red (RD)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Adhesive: Acrylic
• Adhesive Operating Temperature: -40°F to +302°F (-40°C to +150°C)
• Color of Print: White (WH)
• Height H (Imperial): 4.0"
• Height H (Metric): 101.60 mm
• Installation Temperature: +50°F (+10 °C)
• Labels per Column: 1
• Labels per Row: 1
• Self laminating: No
• Thickness T (Imperial): 0.0025"
• Thickness T (Metric): 64.0 µm
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• Width W (Imperial): 6.0"
• Width W (Metric): 152.4 mm
• CE Certified: No
• CSA Certified: No
• Halogen Free: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL-File Number + Logo: MH16736 [RU]; MH14382 [RU]; MH11410 [RU]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): Yes
• UPC: 089306397946

Overview

HellermannTyton Pre-Printed Solar Installation Labels are designed to meet the requirements of the National Electrical Code® (NEC®) and the International Fire Code (IFC) as well as being acceptable to the Authority Having Jurisdiction (AHJ). Labels are made with durable UV-stable materials and adhesives that are designed to stick to both baked enamel and powder-coated surfaces. Where applicable, labels are made using reflective materials for first responder safety. Some pre-printed labels are printable using a thermal transfer printer when variable voltage or series data must be printed and displayed.
