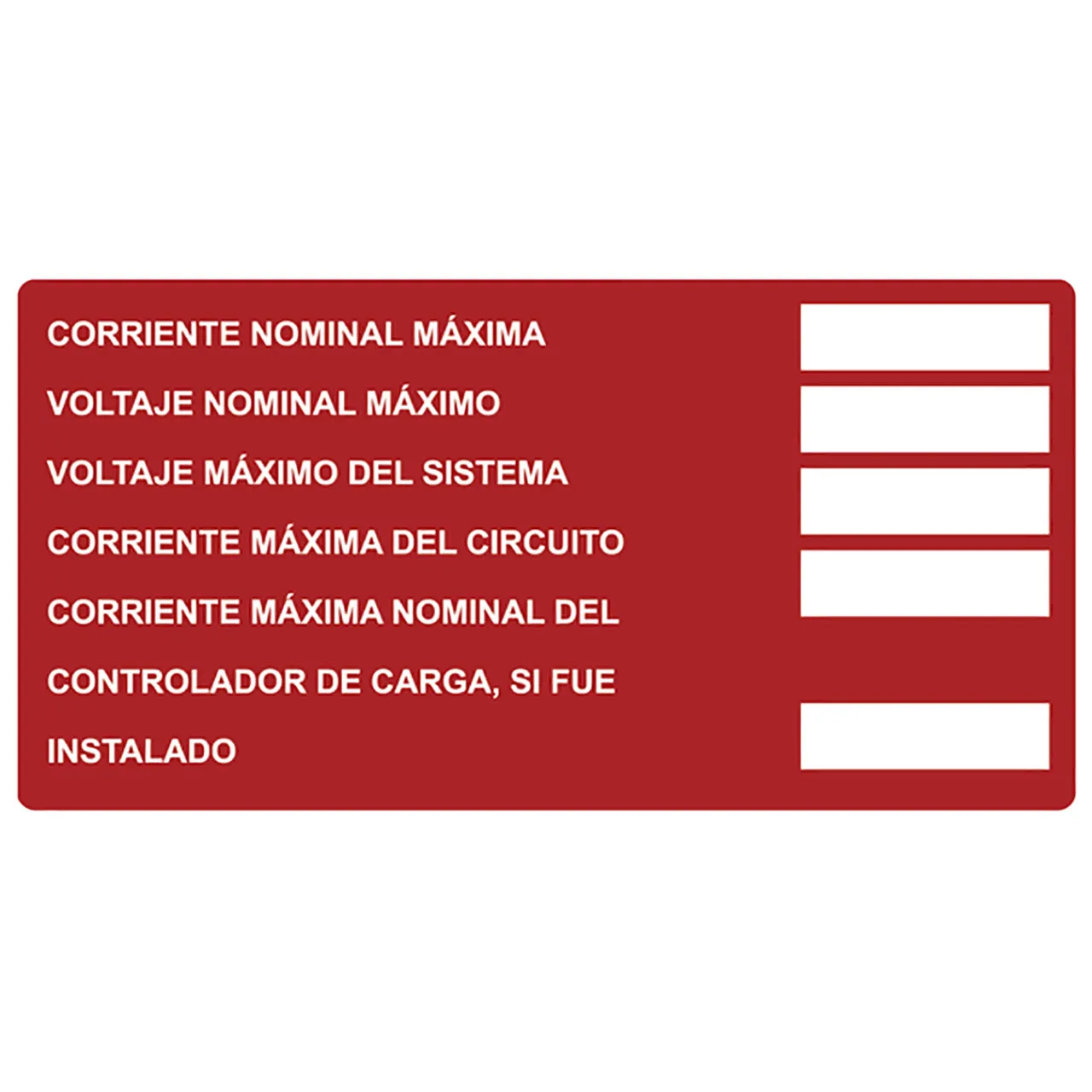

Solar Label, Printable, Spanish, DC Module, 4.0" x 2.0", PET, Red, 50/roll

Features

• Made with UV-stable inks and materials for durability and weather resistance. Reflective properties to meet applicable NEC® code requirements for reflective identification. Supplied with an aggressive adhesive to ensure long life. Meets NEC & IFC standards for printed text, character height, color and outdoor UV stability to pass inspections.
• Product Type: Solar Identification

Technical Specifications

• Material: Type 840/281, Polyester, UV-stabilized, clear polyester laminate (840/281)
• Operating Temperature: -40°F to +302°F (-40°C to +150°C)
• Color: Red (RD)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Adhesive: Acrylic
• Adhesive Operating Temperature: -40°F to +302°F (-40°C to +150°C)
• Color of Print: White (WH)
• Height H (Imperial): 2.0"
• Height H (Metric): 50.8 mm
• Installation Temperature: +50°F (+10 °C)
• Labels per Column: 1
• Labels per Row: 1
• Print Method: thermal transfer print
• Recommended Ribbon Type: TT822OUT
• Self laminating: No
• Thickness T (Imperial): 0.0025"
• Thickness T (Metric): 64.0 µm
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• Width W (Imperial): 4.0"
• Width W (Metric): 101.6 mm
• CE Certified: No
• CSA Certified: Yes
• Halogen Free: Yes
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL-File Number + Logo: MH16736 [RU]; MH14382 [RU]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): Yes
• UPC: 089306380573

Overview

Designed with cross-laminated UV stable materials, these variable print Solar Installation Labels are designed to accept printing from any standard thermal transfer printer using a resin-based ink ribbon for the best durability. Print your voltage information directly on the label and then laminate with an optional clear acrylic laminate material for added protection. These labels can be used to print disconnecting means and breaker series directly on the labels for a more professional result and a smoother inspection process.
