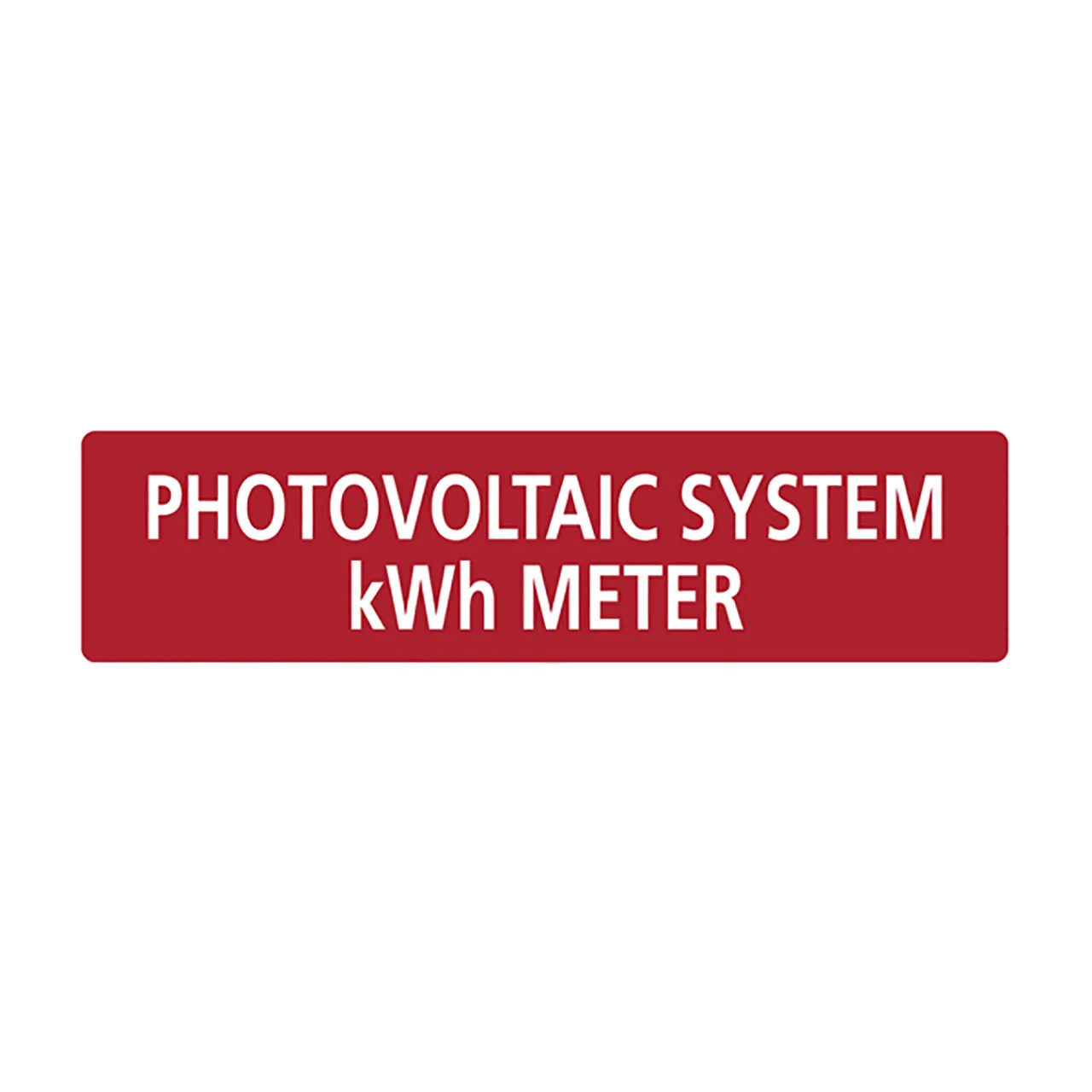

Solar Label, PHOTOVOLTAIC SYSTEM kWh METER, 4.0" x 1.0", VL, Red, 50/roll

Features

• Made with UV stable inks and materials for durability and weather resistance. The labels are supplied with aggressive adhesive to ensure long life. Solar Installation labels meet NEC & IFC standards for printed text, character height, color and outdoor UV stability to pass inspections.
• Product Type: Solar Identification

Technical Specifications

• Material: Vinyl (V)
• Operating Temperature: -40°F to +174°F (-40°C to +79°C)
• Color: Red (RD)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Adhesive: Acrylic
• Adhesive Operating Temperature: -40°F to +174°F (-40°C to +79°C)
• Height H (Imperial): 1.0"
• Height H (Metric): 25.40 mm
• Installation Temperature: +50°F (+10 °C)
• Labels per Column: 1
• Labels per Row: 1
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• Width W (Imperial): 4.0"
• Width W (Metric): 101.6 mm
• CE Certified: No
• CSA Certified: No
• Halogen Free: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL-File Number + Logo: MH11410 [RU]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306395768

Overview

Many times common solar label designs are specified even though they might not be required by code. HellermannTyton offers a selection of some of the most commonly requested labels for use on solar installations.
