Power-Rated Elbow Cover, 3/4", 1" Bend Radius, PVC, Ivory, 1 per Bag

Features

• Made with UV-stable inks and materials for durability and weather resistance. Reflective properties to meet applicable NEC code requirements for reflective identification. Supplied with an aggressive adhesive to ensure long life. Meets NEC & IFC standards for printed text, character height, color and outdoor UV stability to pass inspections.
• Product Type: Solar Identification

Technical Specifications

• Material: Type 840/281, Polyester, UV-stabilized, clear polyester laminate (840/281)
• Operating Temperature: -40°F to +302°F (-40°C to +150°C)
• Color: Red (RD)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor and Outdoor Use
• Adhesive: Acrylic
• Adhesive Operating Temperature: -40°F to +302°F (-40°C to +150°C)
• Color of Print: White (WH)
• Focused Markets and Industries: Solar Energy Sector
• Height H (Imperial): 4.0"
• Height H (Metric): 101.6 mm
• Installation Temperature: +50°F (+10 °C)
• Labels per Column: 1
• Labels per Row: 1
• Print Method: thermal transfer print
• Recommended Ribbon Type: TT822OUT
• Self laminating: No
• Thickness T (Metric): 64.0 µm
• Weight (Lbs) per 1 Content Unit without Packaging: 0
• Width W (Imperial): 2.0"
• Width W (Metric): 50.8 mm
• CE Certified: No
• CSA Certified: No
• Halogen Free: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL-File Number + Logo: MH16736 [RU]; MH14382 [RU]
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): Yes
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): Yes
• UPC: 089306359289

Overview

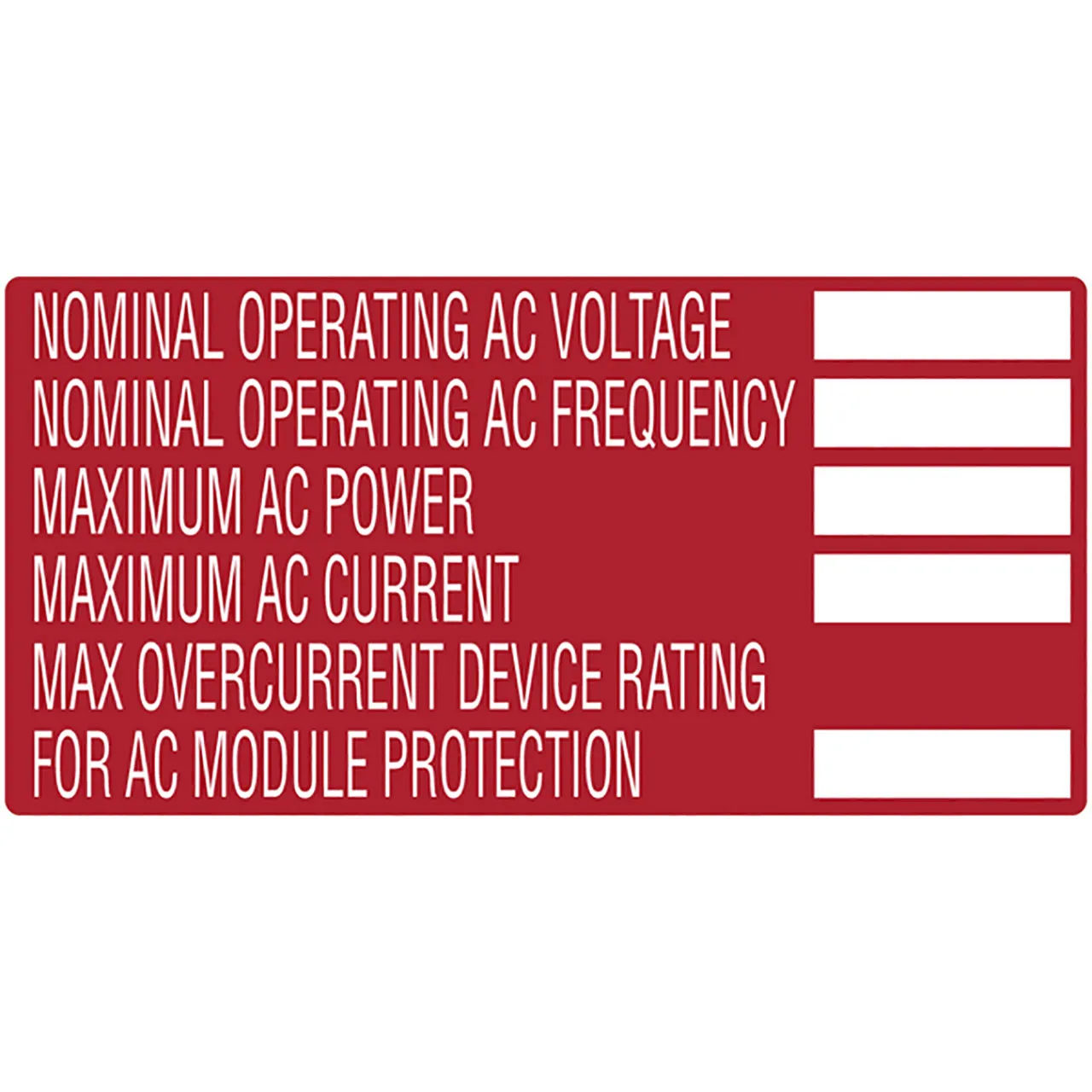

Designed in a one-across landscape format to fit into the compact TT130SMC thermal transfer printer, these labels allow for code-compliant marking of variable information including disconnecting means, breaker series and voltage data. Made with cross-laminated UV stable materials, labels are ideal for use in solar installation applications. Use with the TT130SMC or any HellermannTyton thermal transfer printer.
