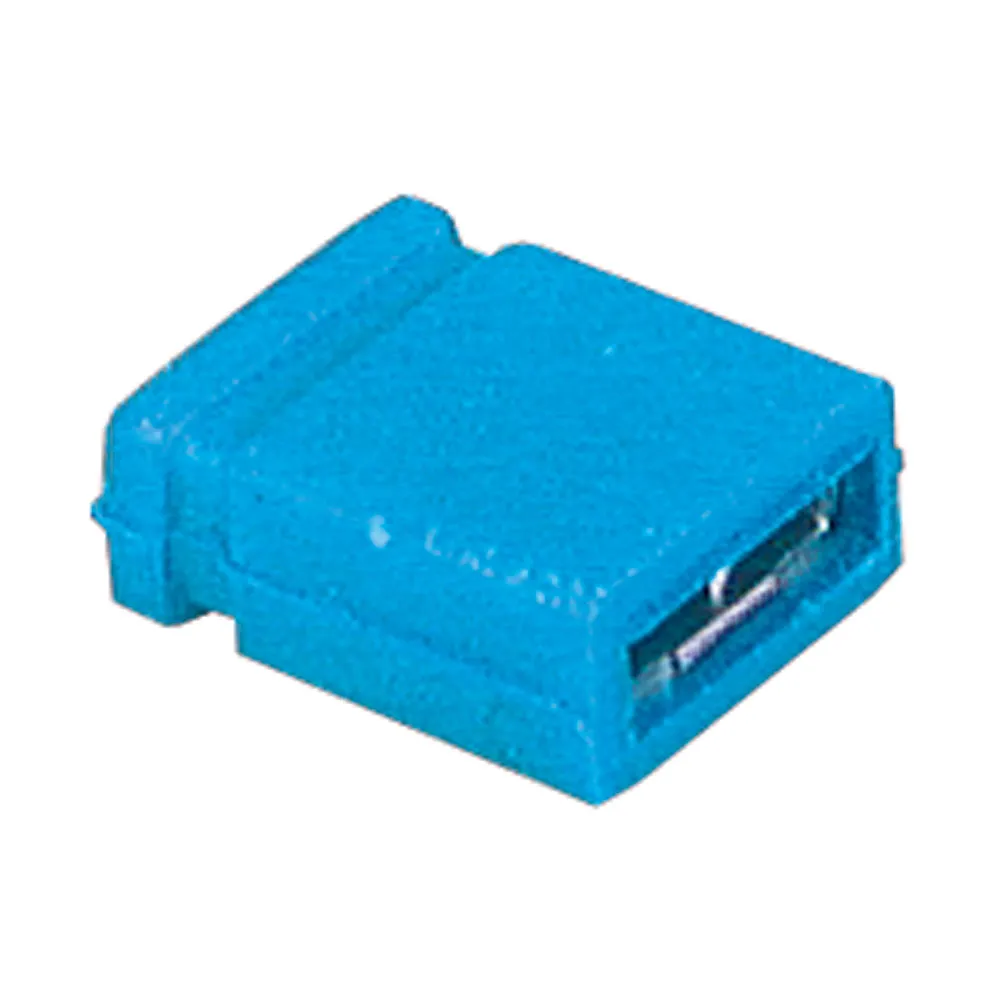

Socket Shorting Block Blue Closed

Specifications

  • RoHS compliant
  • Mates to .025" square posts on .100" centers
  • Shorts headers/jumper blocks, shunt jumper

Product Identification

Product Type:Closed Top

Dimensions & Appearance

Color:Blue
Depth:4.95 mm
Length:6.5 mm

Features

Number of Rows:1
Number of Contacts:2
Maximum Contact Resistance:20 mOhm
Pitch:0.100 in., 2.54 mm
Contact Plating:Gold Over Nickel
Contact Material:Phosphor Bronze
Housing Material:Polybutylene Terephthalate
Current Rating:3 A
,
