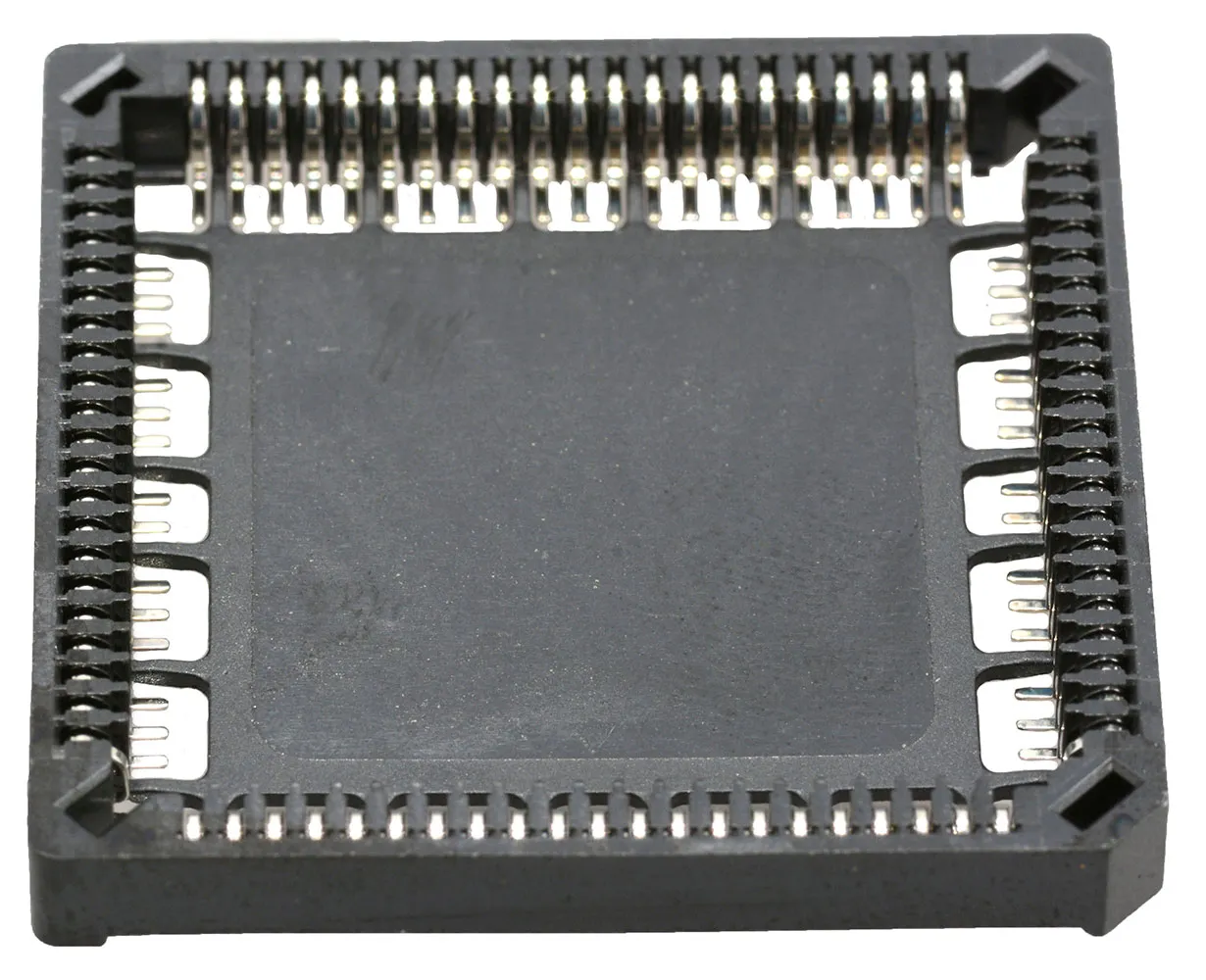

PLCC Socket 84 Position (4x21) Tin Surface Mount

Specifications

  • Socket Type: PLCC
  • Number of Positions or Pins (Grid): 84 (4 x 21)
  • Pitch - Mating: 0.050" (1.27 mm)
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness - Mating: 160 µin (4.06 µm)
  • Contact Material - Mating: Phosphor Bronze
  • Mounting Type: Surface Mount
  • Features: Board Guide, Closed Frame
  • Termination: Solder
  • Contact Finish - Post: Tin
  • Contact Material - Post: Phosphor Bronze
  • Housing Material: Thermoplastic, Glass Filled
  • Operating Temperature: -50°C to 105°C
  • Current Rating (Amps): 1 A
  • Contact Resistance: 15 mOhm

Product Identification

Product Type:PLCC Socket
Manufacturer Series:ValuePro

Dimensions & Appearance

Mounting:Surface Mount
Body Orientation:Straight

Features

Number of Contacts:84
,
