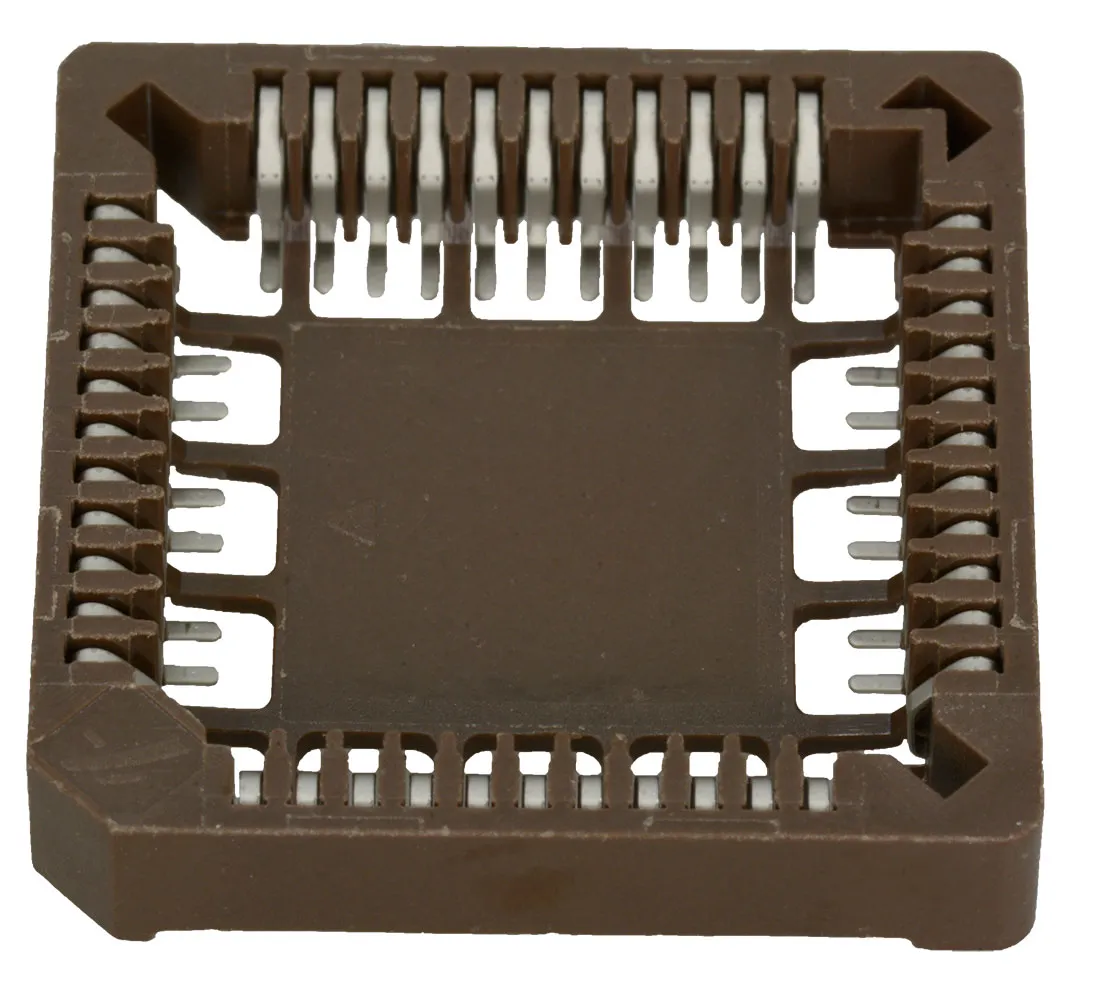

44-Pin Surface Mount Chip Carrier Socket


Specifications:

  • Operating temperature: -50°C to 105°C
  • Insulation material: polyphenylene sulfide
  • Insulation resistance: 10000mΩ
  • Maximum contact resistance: 15mΩ
  • Mounting: surface mount
  • Pitch: 1.27mm
  • Dimensions: 23.28mm (L) x 23.28mm (W) x 4.75mm (H)
  • Contact material: phosphor bronze
  • Contact plating: tin over nickel
  • Body orientation: straight
  • Number of contacts: 44
  • Termination method: solder

    • Product Identification

    Product Type:PLCC Socket
    Manufacturer Series:ValuePro

    Dimensions & Appearance

    Mounting:Surface Mount
    Body Orientation:Straight

    Features

    Number of Contacts:44
    ,
