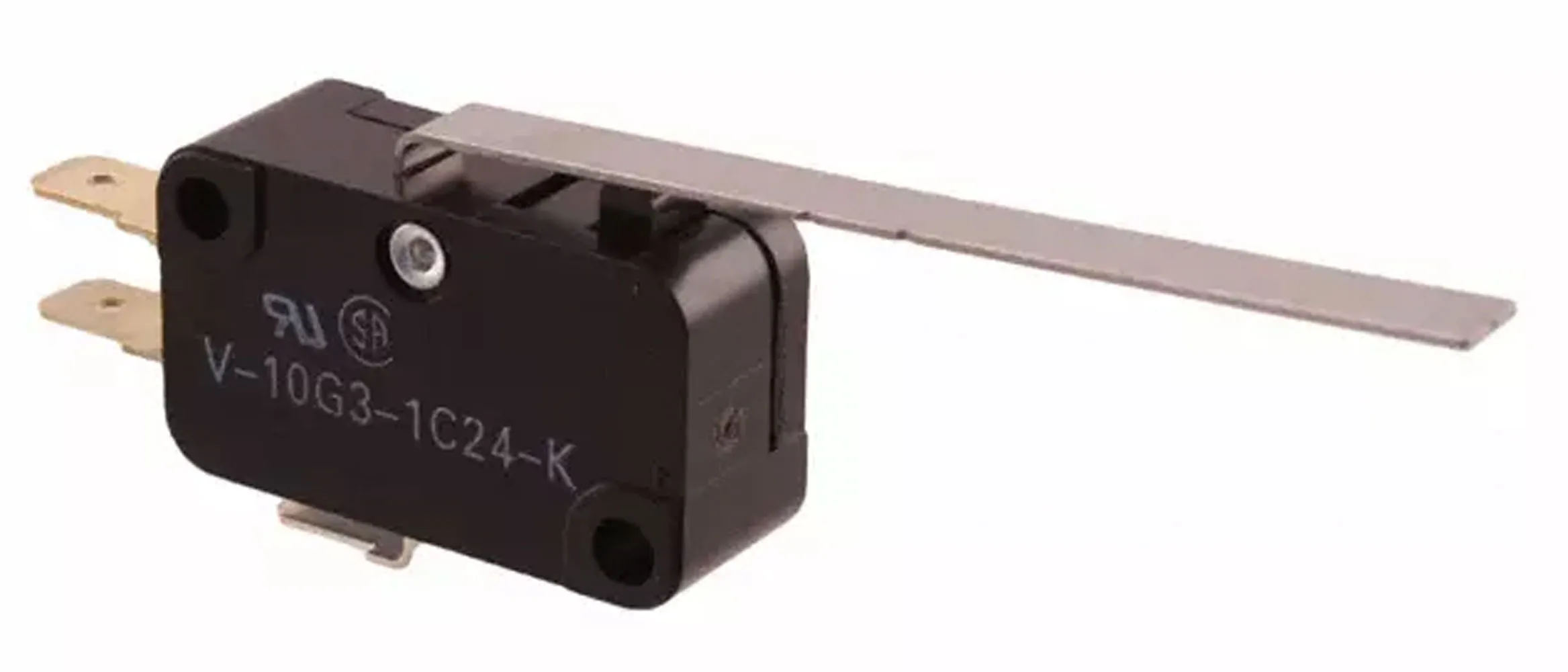

Basic Lever Switch

Specifications

  • Terminal type: .183" quick connect
  • Contact form: SPDT-NC
  • Dimensions: 1.1"L x 0.40"W x 0.63"H
  • Service life: 50 million cycles mechanical; 300,000 cycles electrical
  • Contact voltage: 0.1A@125VAC, 10A@250VAC
  • Long hinge lever (2.01"L)
  • 3 Terminals: common; normally open; normally closed

Product Identification

Product Type:Limit Switch

Features

Terminal Type:0.187" quick connect
Contact Rating:0.1A @ 125VDC, 10A @ 250VAC
Actuator Type:2" Hinge Lever
Contact Form:SPDT-NC
,
