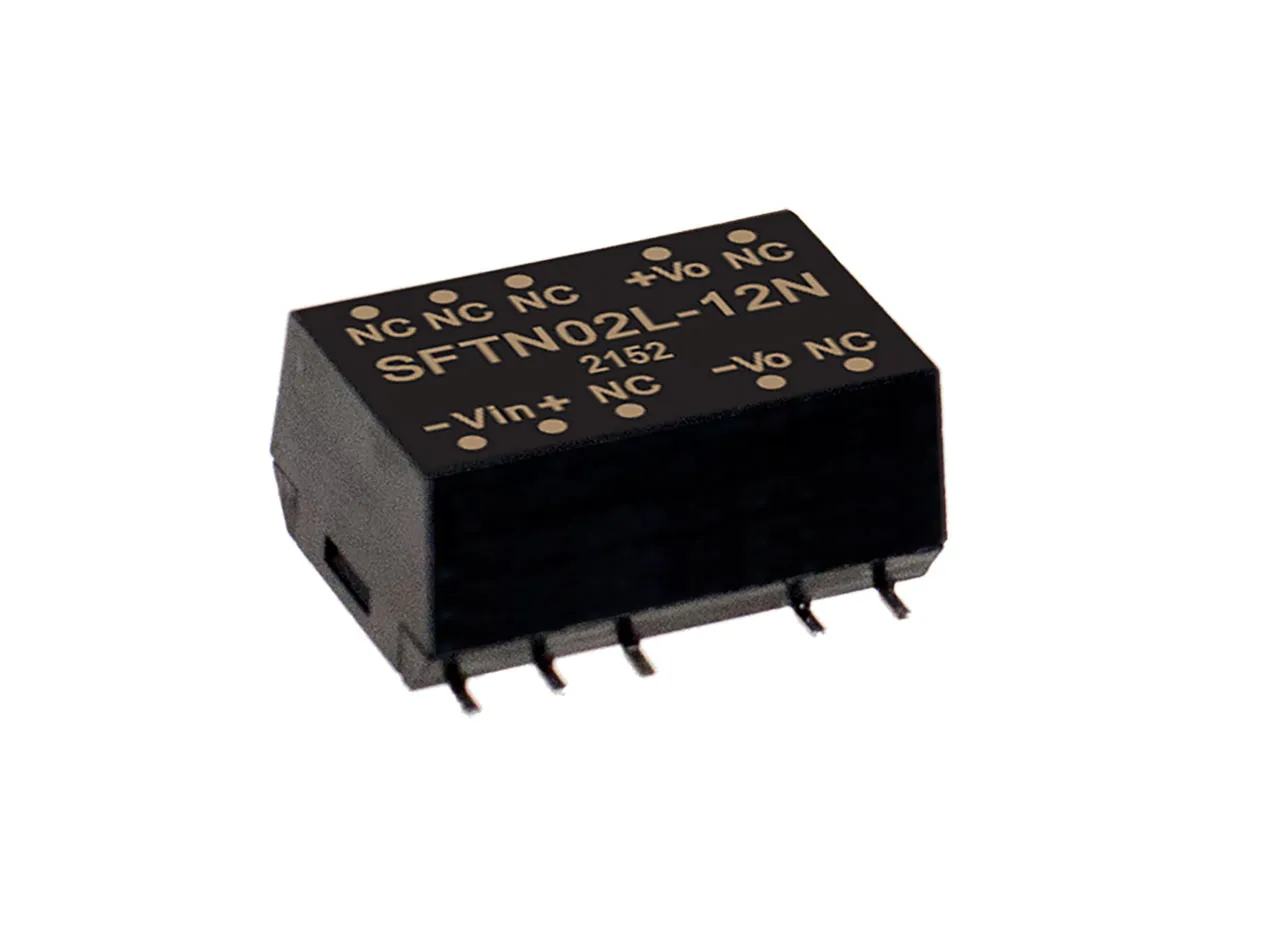

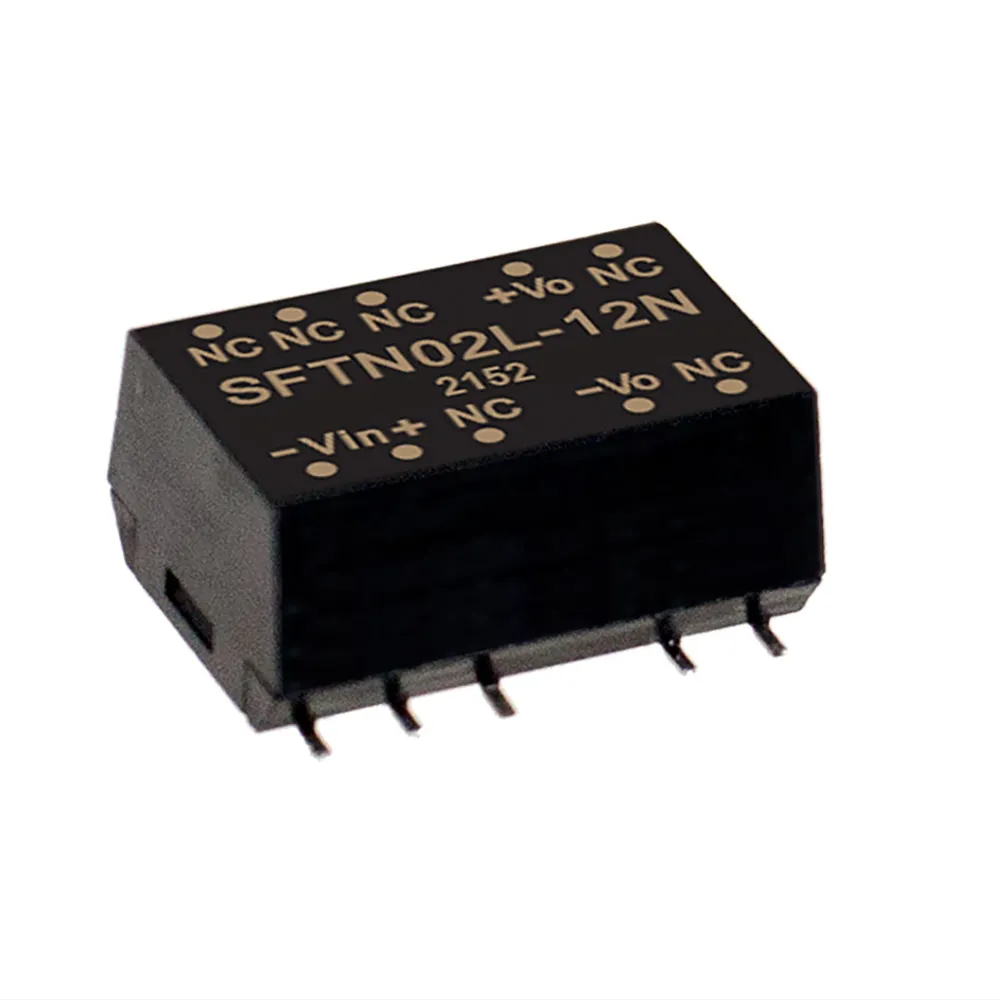

SMD Package DC-DC Unregulated Converter 2W 15V 27-133mA 12Vin 3KV Isolation 100C

Features

  • SMD package with industry standard pinout
  • Operating temperature range -40 to +100°C
  • High efficiency up to 86%
  • 3000V DC I/O isolation
  • Low cost
  • 3-year warranty

Overview

SFTN02-N series is a 2W isolated and unregulated module type DC-DC converter with SMD package. It features international standard pins, a high efficiency up to 86%, wide working temperature range -40 to +100C, 3KV I/P-O/P isolation voltage, compliance to BS EN/EN55032. The models account for different input voltage 5V/12V/24V±10%, and various output voltage, 5V/12V/15V for single output which are suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and more.

Applications

  • Telecom/datacom system
  • Wireless network
  • Industrial control facility
  • Instrument
  • Analyzer
  • Detector
  • Data switch

Product Identification

Type:Unregulated
Additional Feature:New Series
Product Type:DC-DC Unregulated Converter SMPS
Manufacturer Series:SFTN02-N

Compliance

Agency Approvals:CE, EN, EAC, UKCA

Dimensions & Appearance

Color:Black
Height:0.36 in.
Length:0.60 in.
Width:0.43 In.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Frequency:N/A
Input Voltage:12 VDC
Input Voltage Range:10.8 VDC to 13.2 VDC
Maximum Input Current:0.2 A

Output

Number of Outputs:1
Output Connector Diameters:N/A
Output Current:0.133 A
Output Voltage:15 VDC
Output Connector Type:SMD
Additional Output Voltages (VDC):N/A

Features

Isolation Voltage:3000V
Pins:10
AC Power Cord:N/A
Efficiency:83%
Power Rating:2 W
,
