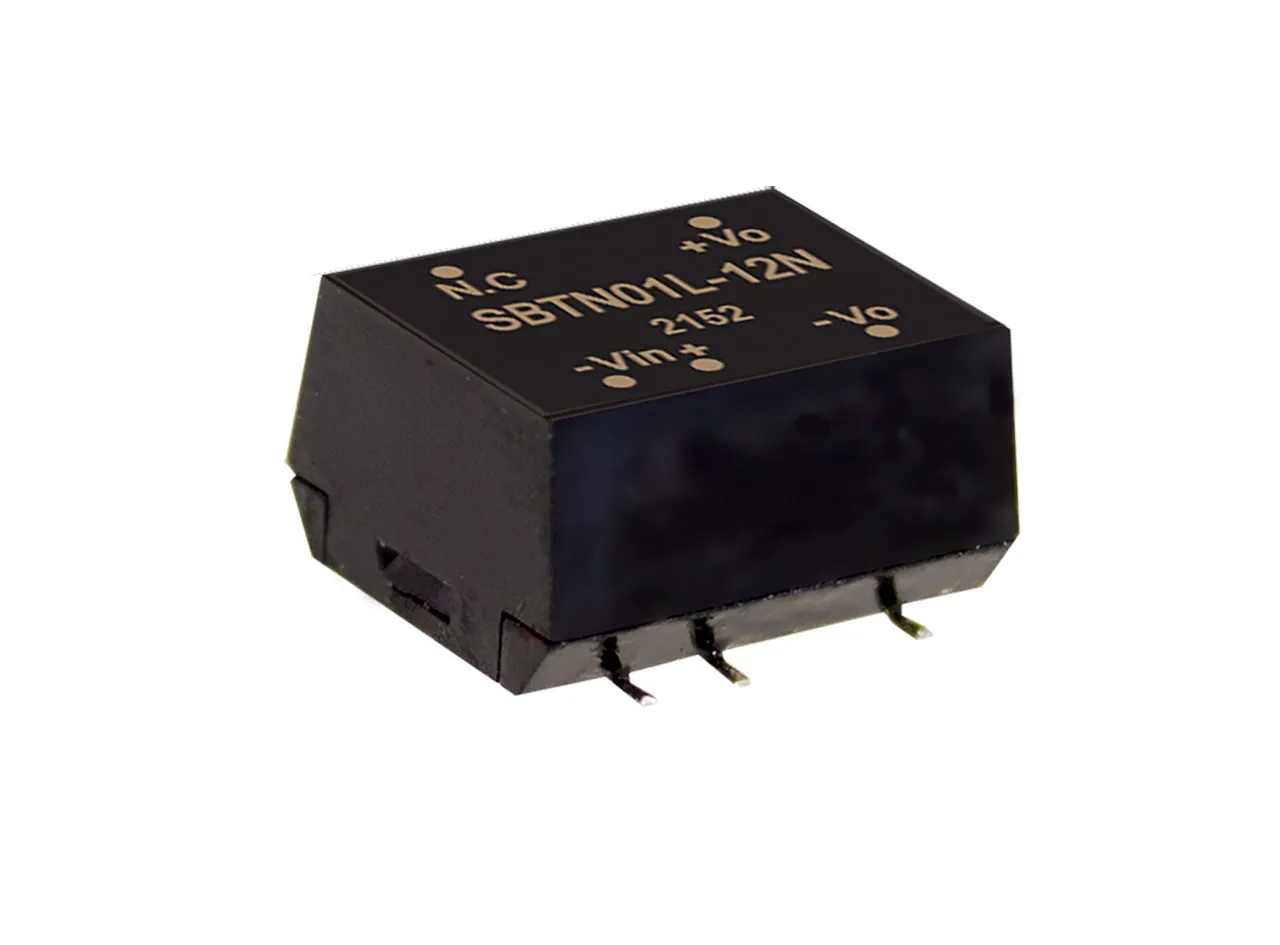

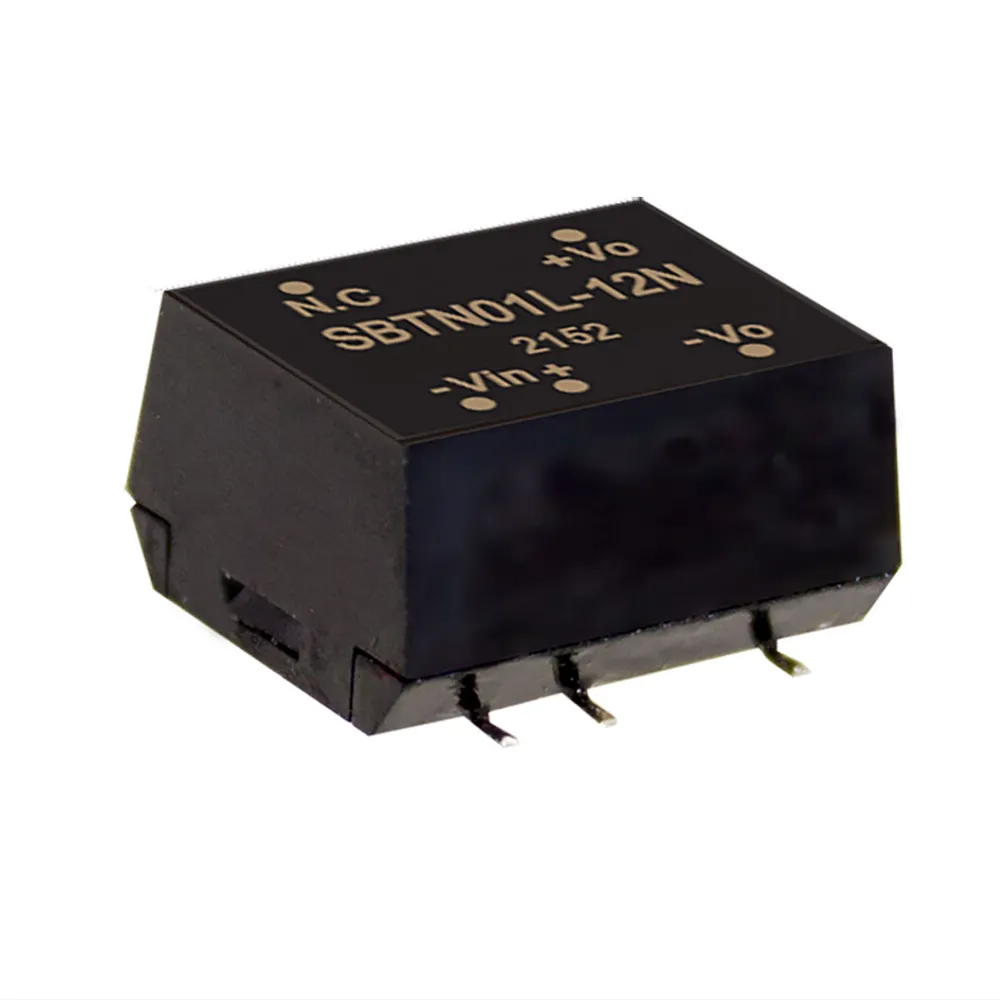

SMD Package DC-DC Unregulated Converter 1W 5V 20-200mA 5Vin 2KV Isolation

Features

  • SMD package with industry standard pinout
  • Operating temperature range -40 to +100°C
  • High efficiency up to 83%
  • 2000V DC I/O isolation
  • Low cost
  • 3 year warranty

Applications

  • Telecom/datacom system
  • Wireless network
  • Industrial control facility
  • Instrument
  • Analyzer
  • Detector
  • Data switch

Overview

SBTN01-N series is a 1W isolated and unregulated module type DC-DC converter with SMD package. It features international standard pins, a high efficiency up to 83%, wide working temperature range -40 to +100C, 2KV I/P-O/P isolation voltage, compliance to BS EN/EN55032. The models account for different input voltage 5V/12V/24V±10%, and various output voltage, 5V/12V/15V for single output which are suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and more.

Product Identification

Type:Unregulated
Additional Feature:New Series
Product Type:DC-DC Unregulated Converter SMPS
Manufacturer Series:SBTN01-N

Compliance

Agency Approvals:CE, EN, EAC, UKCA

Dimensions & Appearance

Color:Black
Height:0.28 in.
Length:0.50 in.
Width:0.43 In.

Operating conditions

Maximum Operating Temperature:100°C
Minimum Operating Temperature:-40°C

Input

Input Frequency:N/A
Input Voltage Range:4.5 VDC to 5.5 VDC
Input Voltage:5 VDC
Maximum Input Current:0.27 A

Output

Number of Outputs:1
Output Connector Diameters:N/A
Output Voltage:5 VDC
Output Current:0.20 A
Output Connector Type:SMD
Additional Output Voltages (VDC):N/A

Features

Pins:5
Isolation Voltage:2000V
AC Power Cord:N/A
Efficiency:77%
Power Rating:1 W
,
