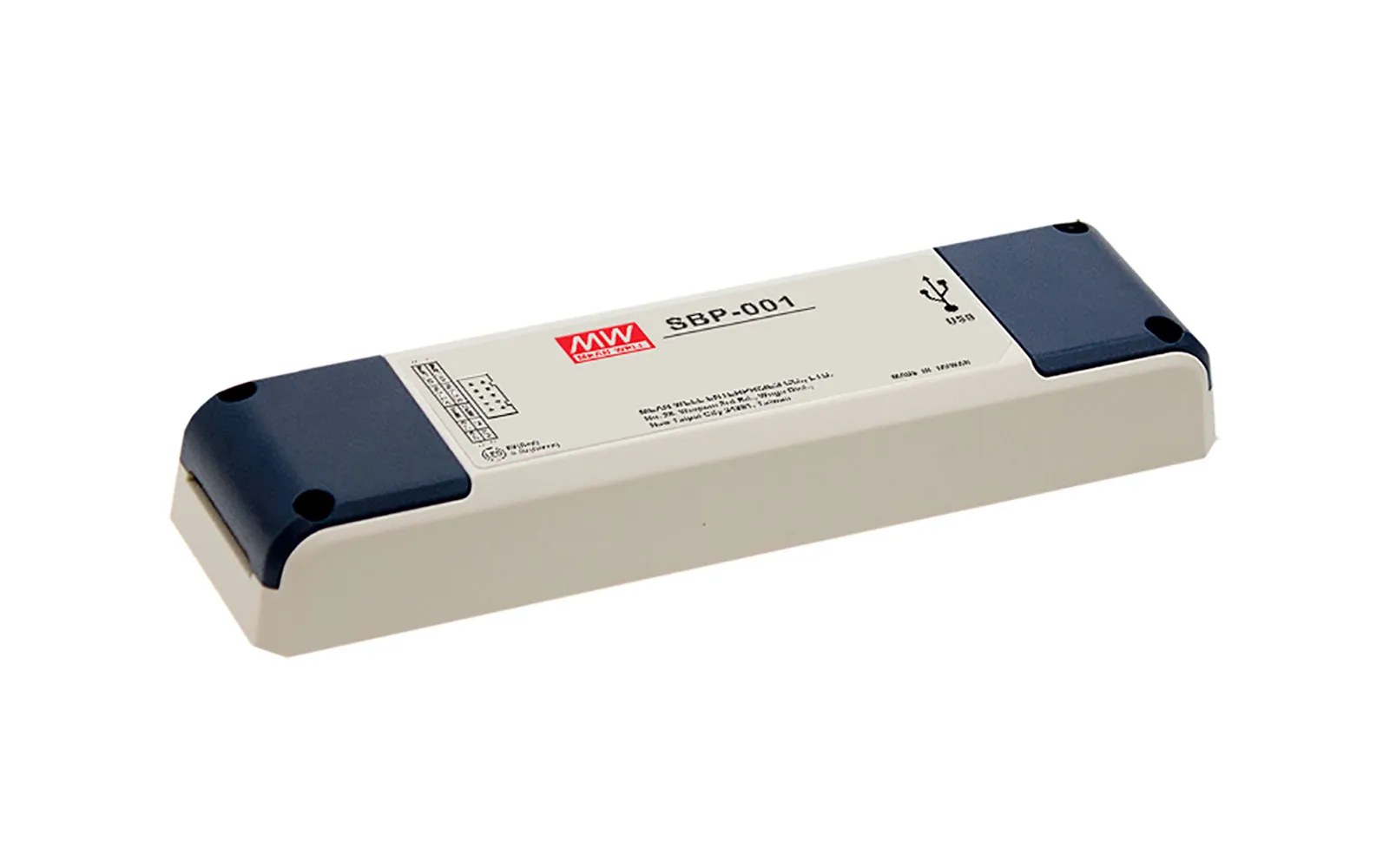

Smart Battery Charging Programmer

Features

  • For MEAN WELL battery chargers with charging curve programmable function (ENC Series, RPB/RCB-1600, DBU/DBR-3200, HEP-1000)
  • Simple connection and configuration
  • No need of battery of AC power
  • LED status indicator
  • Communications cables for ENC series, RPB-1600, DBU-3200, HEP-1000 are included (USB cable is not included)

Specifications

  • Output Programming Interface: PMBus, CANBus, UART
  • Programming Voltage: 5V and 3.3V for programming purpose only (Total 0.5W max)
  • Input Communication Interface: USB
  • Size: 6.50"L x 1.81"W x 0.91"H

Product Identification

Product Type:Smart Battery Charging Programmer

Compliance

Agency Approvals: CE, EAC, EN, UKCA, CB

Dimensions & Appearance

Height:0.91 in.
Width:1.81 in.
Length:6.50 in.

Input

Input Voltage:N/A

Output

Output Voltage:5 VDC, 3.3 VDC
Output Current:N/A

Features

Power Rating:0.5 W
Connector Type:USB

Related products

For Use With:ENC-120/240/360, DRS-240/480, NPB-450/750/1200/1700, HEP-1000, RPB/RCB-1600, HEP-2300-55, DBU/DBR-3200
,
