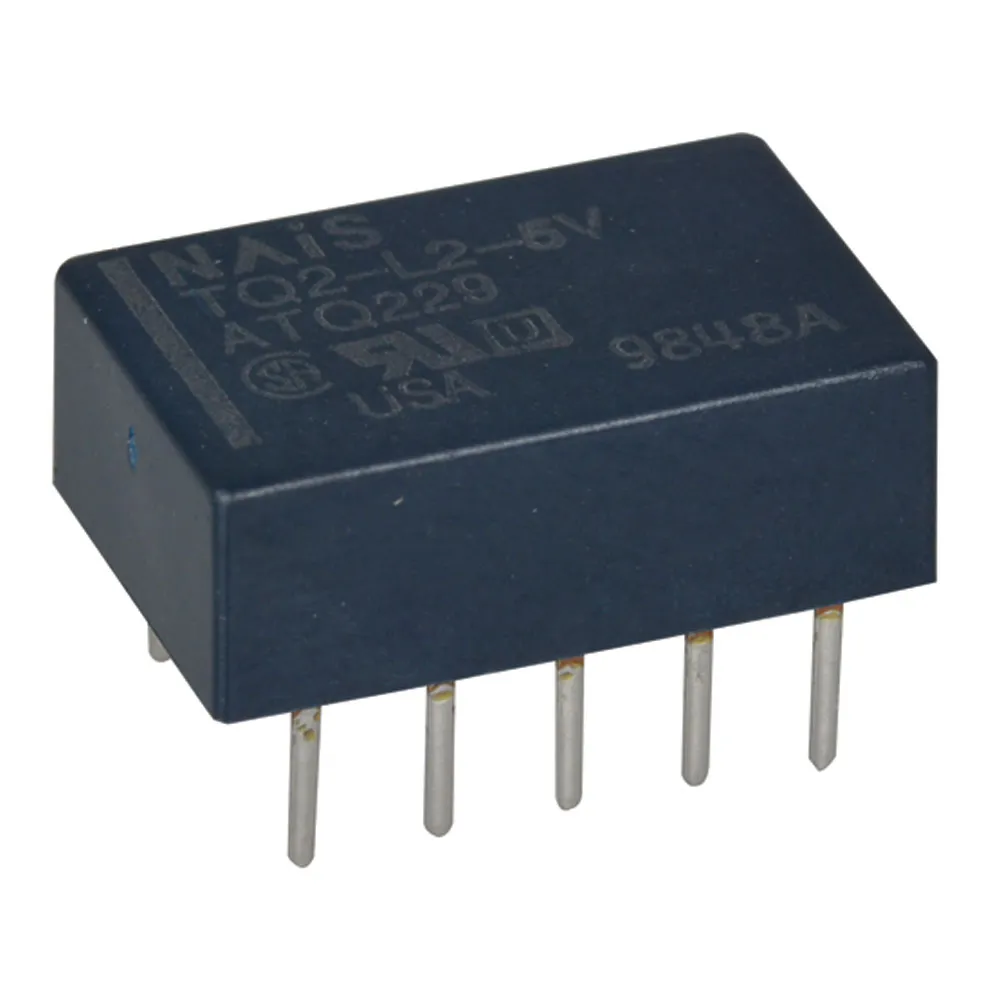

Small PC Mount Relay

Designed for the appliance and temperature control markets, these relays are also well suited for automotive load management.

Features


  • Contact form: DPDT
  • Coil voltage: 5VDC
  • Coil resistance: 178Ω
  • Contact voltage: 125VAC/110VDC
  • Contact current: 1A
  • Size: 0.55"L x 0.35"W x 0.20"H
  • 10-pin package
  • Mechanical life: 10 million operations
  • Electrical life: 1 million operations
  • 2 Coil Latching

    • Product Identification

    Family:TQ

    Dimensions & Appearance

    Length:14 mm
    Height:5 mm
    Width:9 mm

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:70°C

    Features

    Minimum Dropout Voltage:0.5 VDC
    Relay Construction:Latching
    Maximum Pick-Up Voltage:3.3 VDC
    Coil Voltage:5 VDC
    Pins:10
    Operate Time:3 ms
    Contact Current:1 A
    Contact Voltage:125 VAC, 110 VDC
    Coil Resistance:178 Ohm
    Contact Form:DPDT
    ,
