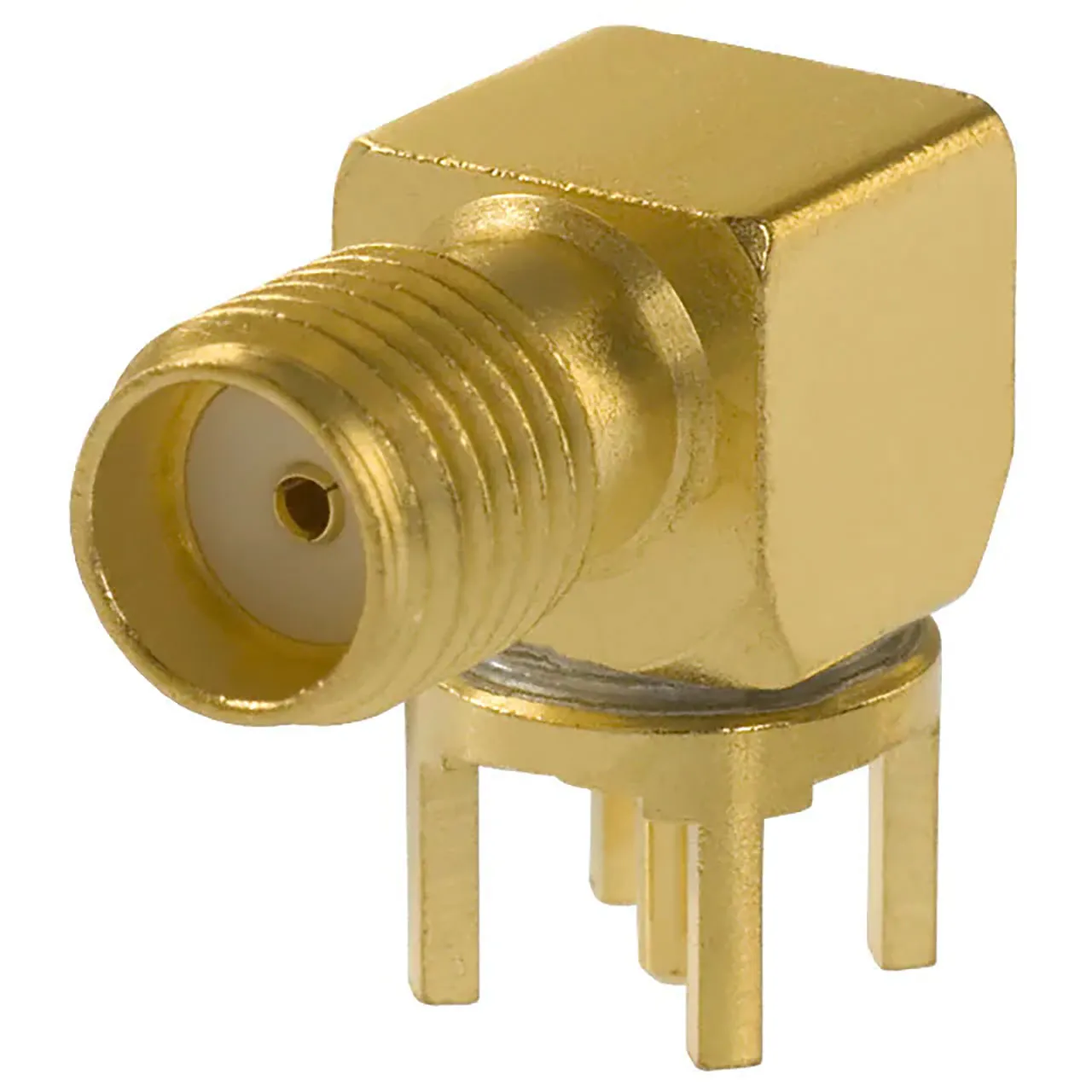

SMA Connector Jack Female Socket 50 Ohm Through Hole Right Angle Solder

Specifications

  • Connector Style: SMA
  • Connector Type: Jack, Female Socket
  • Contact Termination: Solder
  • Shield Termination: Solder
  • Impedance: 50 Ohm
  • Mounting Type: Through Hole, Right Angle
  • Fastening Type: Threaded
  • Frequency: 0 GHz to 18 GHz
  • Number of Ports: 1
  • Housing Color: Gold
  • Center Contact Material: Beryllium Copper
  • Body Material: Brass
  • Body Finish: Gold
  • Center Contact Plating: Gold
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Operating Temperature: -65°C to 165°C
  • Voltage Rating: 335 V
  • Mating Cycles: 500
  • Insertion Loss: N/A
  • Base Number: 142-0701

,
