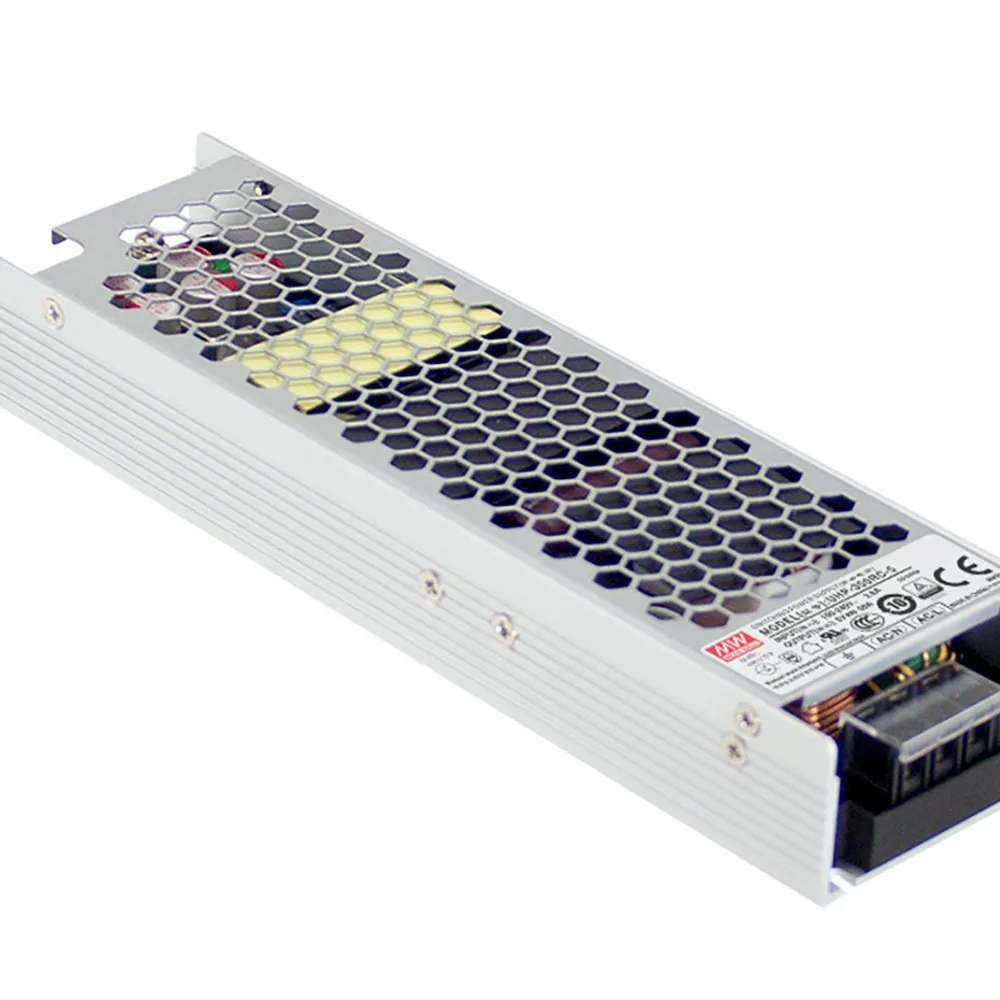

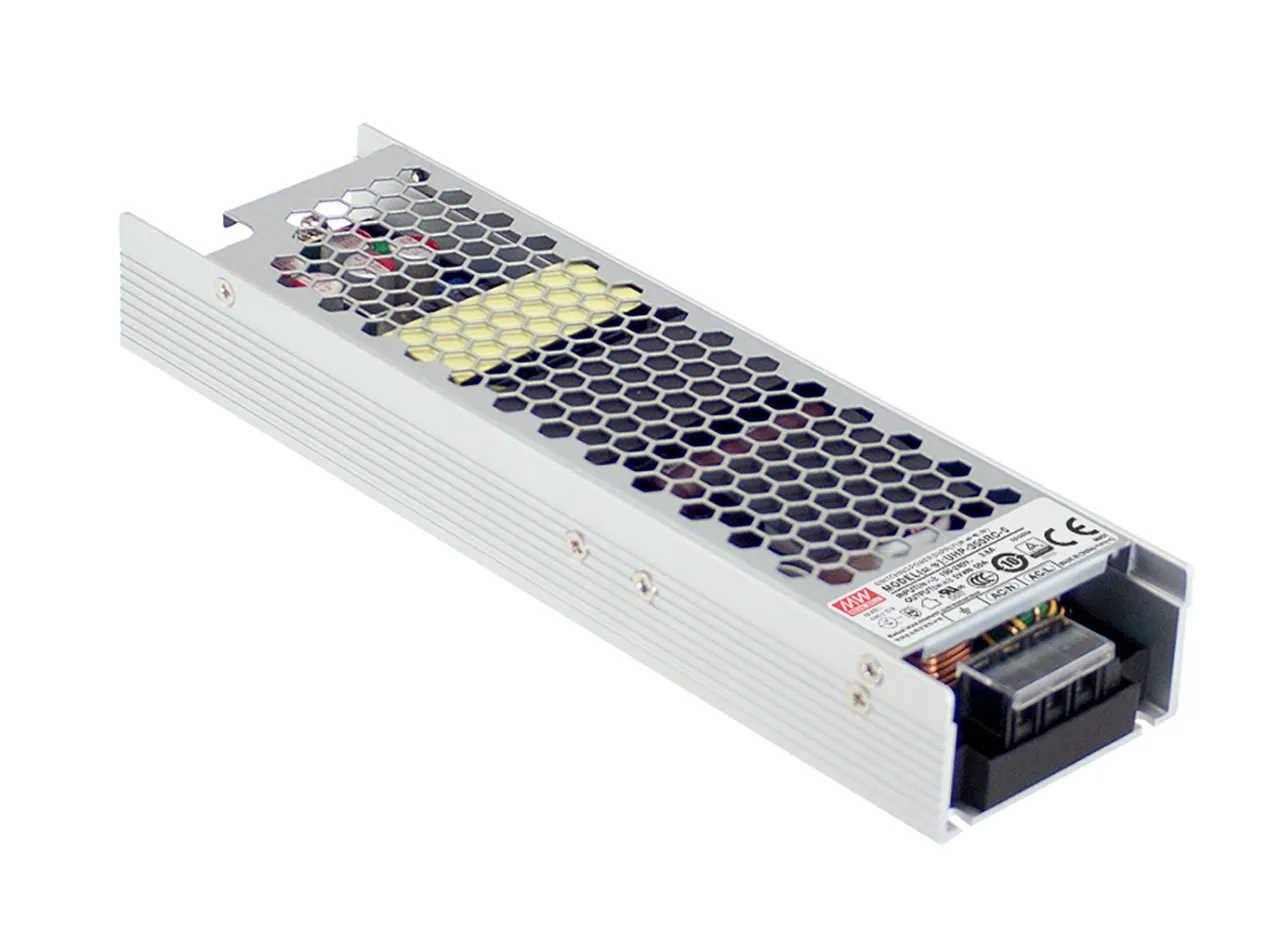

Slim-type Switching Power Supply 350W PFC 55V 6.3A with DC OK Signal and Redundant Function

Features

• Slim and low profile (31mm)
• Fanless design, 350W convection
• Withstand 300VAC surge input for 5 seconds
• Built-in active PFC function
• -30C to +70C working temperature
• Protections: short circuit, overload, over voltage, over temperature
• DC OK active signal and redundant function (optional)
• Operating altitude up to 5000 meters
• LED indicator for power on
• 3-year warranty

Overview

UHP-350 series is a 350W single-output slim type power supply with 31mm of low profile design. Adopting the fill range 90-264VAC input, the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V, 48V, and 55V. In addition to the high efficiency up to 94%, the whole series operates from -30C to +70C under free air convection without a fan. UHP-350 has the complete protection functions and 5G anti-vibration capability; It is compliant with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1, UL 62368-1 and GB 4943.1. UHP-350 series serves as a high performance power supply solution for various industrial applications.

Applications

• Industrial automation machinery
• Industrial control system
• Mechanical and electrical equipment
• Electronic instruments, equipment or apparatus
• Household appliances
• LED display application
• Power Source Equipment for PoE (55V model)
