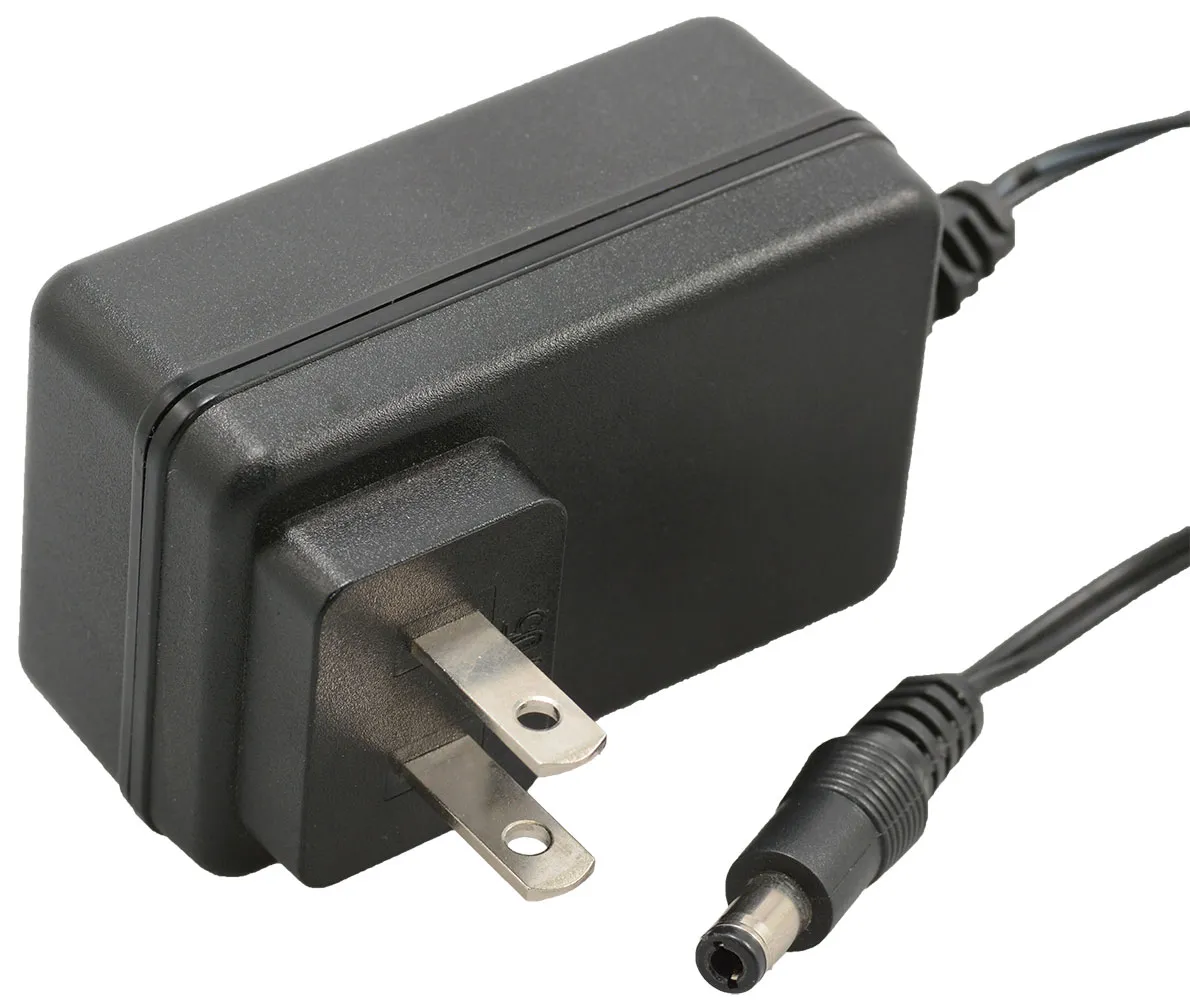

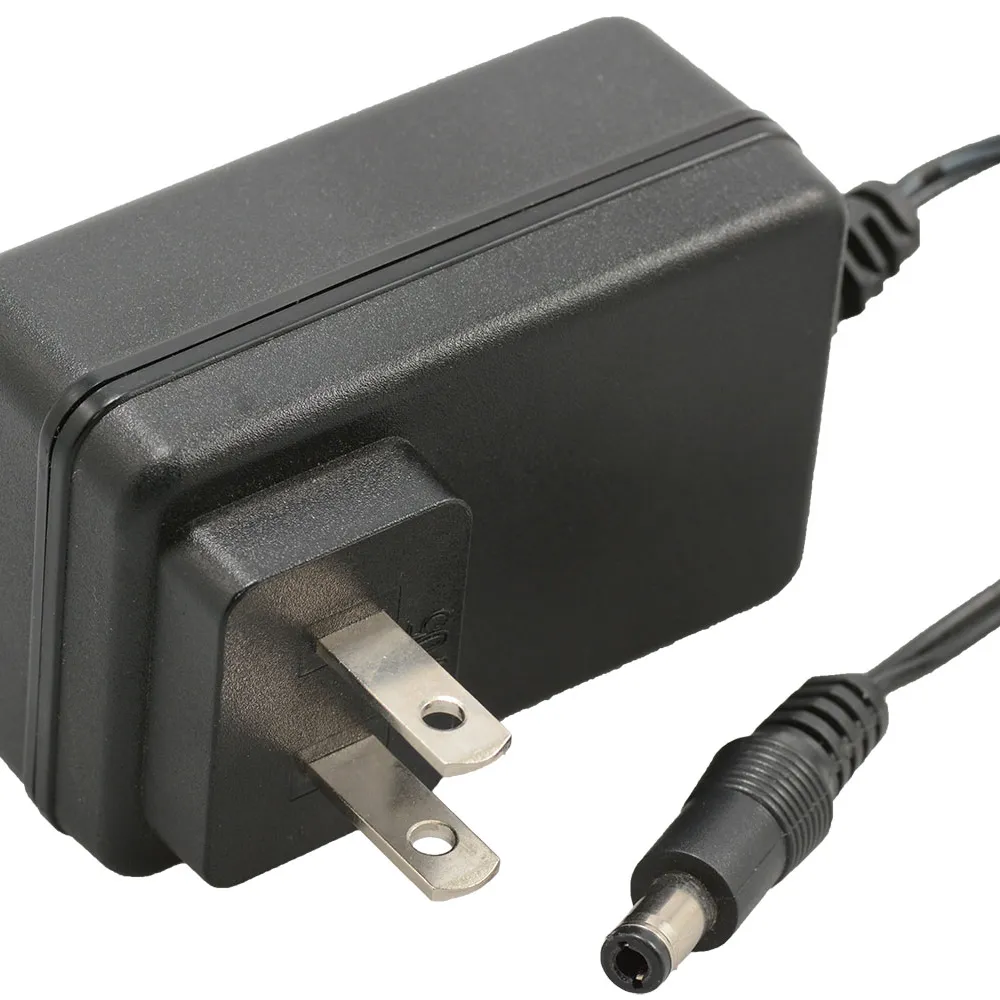

Slim Wall Adapter Power Supply 12V 750mA 2.5mm Center Positive Plug

12 Volts DC @ 0.75 Amps

Specifications

  • Output Voltage: 12 VDC
  • Output Current: 0.75A (750mA)
  • Rated Power: 9 watts
  • Output connector: 2.5mm x 5.5mm, center positive female barrel plug
  • Output Cord Length: 6 feet
  • Input Voltage: 120 VAC (110-127) @ 60 Hz; 0.25 A
  • Agency approvals: UL (E138754), CUL
  • CEC Level IV
  • Dimensions: 1.78"W x 2.75"H x 1.5"D
Power label sticker

Product Identification

Product Type:Unregulated Linear Wall Adapter
Manufacturer Series:ReliaPro

Compliance

Agency Approvals: CEC IV, CUL, UL

Dimensions & Appearance

Style:Wall Mount
Depth:1.5 in.
Width:1.78 in.
Height:2.75 in.

Input

Input Frequency:60Hz
Maximum Input Current:0.25 A
Input Voltage:120 VAC

Output

Number of Outputs:1
Output Cord Length:6 ft.
Output Connector Diameters:2.5mm x 5.5mm
Output Voltage:12 VDC
Output Connector Type:Cylindrical Female
Output Current:0.75 A

Features

Polarity:Center Positive
Power Rating:9 W
,
