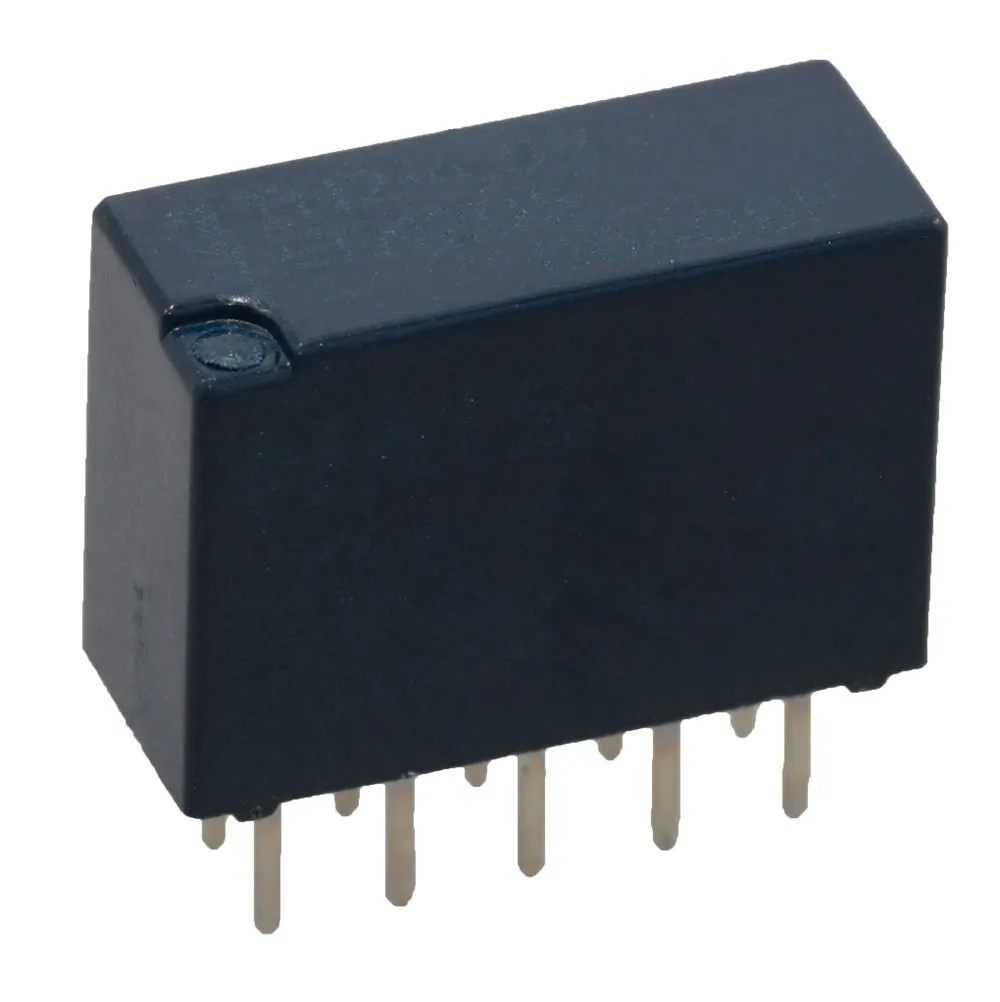

Slim Polarized Relay DPDT (2 Form C) 1A 4.5VDC Coil Through Hole

Specifications

  • Series: TN
  • Mounting Type: Through Hole
  • Coil Voltage: 4.5 VDC
  • Contact Form: DPDT (2 Form C)
  • Contact Rating (Current): 1 A
  • Switching Voltage: 125 VAC, 110 VDC - Max
  • Coil Current: 31.1 mA
  • Coil Type: Non-Latching
  • Termination Style: PC Pin
  • Seal Rating: Sealed - Fully
  • Must Operate Voltage: 3.38 VDC
  • Must Release Voltage: 0.45 VDC
  • Operate Time: 3 ms
  • Release Time: 3 ms
  • Operating Temperature: -40°C to 70°C
  • Contact Material: Silver (Ag), Gold (Au)
  • Coil Resistance: 145 Ohms

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Length:14 mm
Width:5.6 mm
Height:9.8 mm

Features

Coil Voltage:4.5 VDC
Relay Construction:Non-Latching
Pins:10
Contact Current:1 A
Contact Voltage:125 VAC, 110 VDC
Coil Resistance:145 Ohm
Contact Form:DPDT
,
