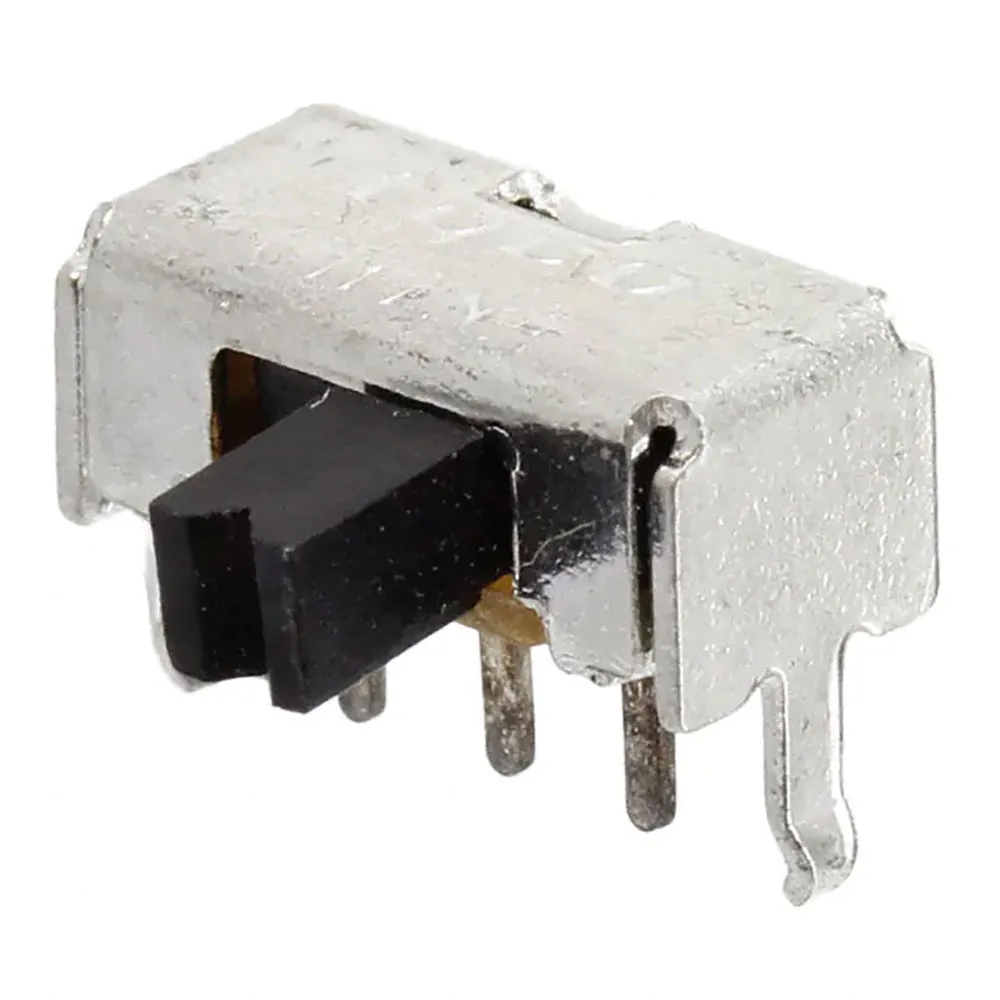

Slide Switch SPDT ON-ON 200mA 30VDC Through Hole Right Angle

Specifications

  • Circuit: SPDT
  • Contact Timing: Non-Shorting (BBM)
  • Switch Function: ON-ON
  • Current Rating (Amps): 200 mA (DC)
  • Voltage Rating - DC: 30 V
  • Actuator Type: Standard
  • Actuator Length: 3 mm
  • Contact Material: Copper Alloy
  • Contact Finish: Silver
  • Mounting Type: Through Hole, Right Angle
  • Termination Style: PC Pin
  • Features: Epoxy Sealed Terminals
  • Operating Temperature: -20°C to 70°C
  • Actuator Material: Polyoxymethylene (Acetal) (POM)
  • Switch Travel: 2 mm
  • Mechanical Life: 10,000 Cycles
  • Electrical Life: 10,000 Cycles
  • Operating Force: 200 gf

Dimensions & Appearance

Depth:0.11 in.
Height:0.14 in.
Width:0.17 in.
Length:0.34 in.
Color:Chrome

Features

Pins:3
Lead Pitch:0.079 in., 2 mm
Color - Actuator/Cap:Black
Contact Rating:0.2 A @ 30 VDC
Housing Material:Metal
Switch Function:ON-ON
Contact Form:SPDT
Actuator Type:Side Slide
,
