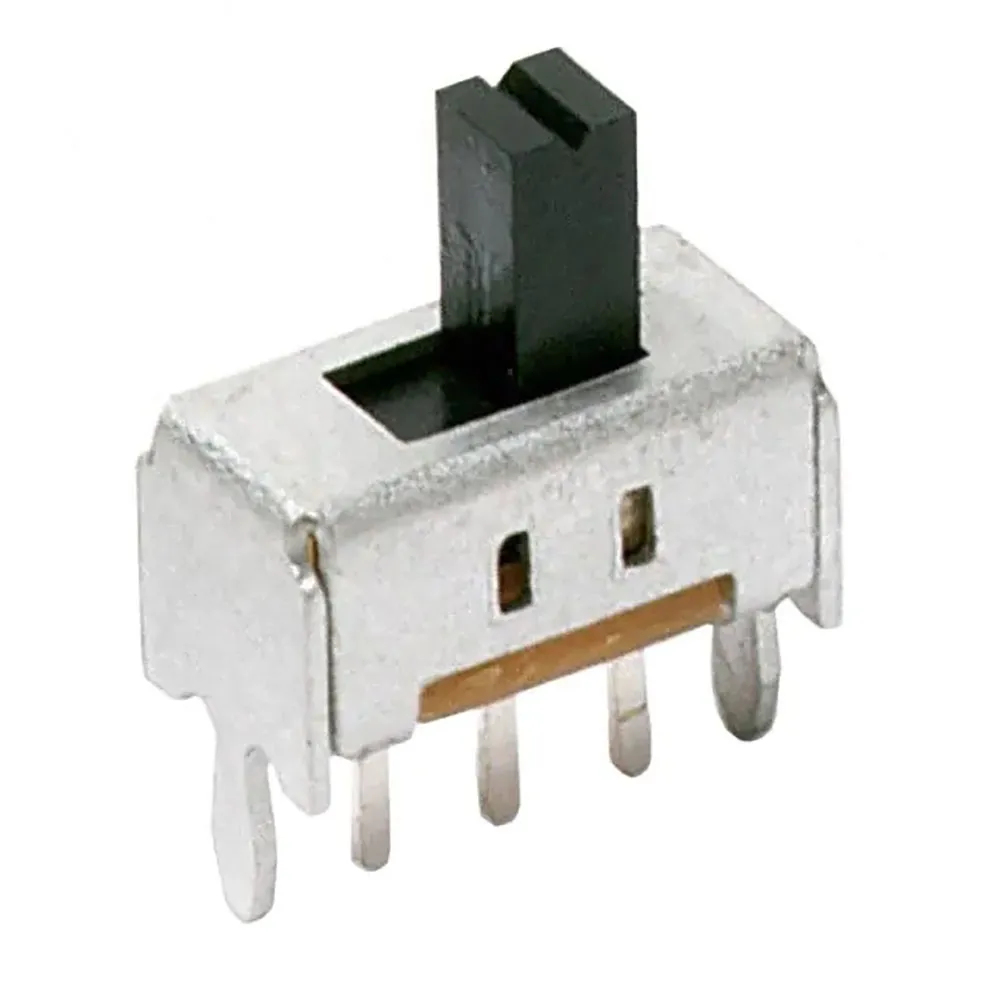

Slide Switch SPDT ON-ON 100mA 12VDC Through Hole

Specifications

  • Circuit: SPDT
  • Contact Timing: Non-Shorting (BBM)
  • Switch Function: ON-ON
  • Current Rating (Amps): 100 mA (DC)
  • Voltage Rating - DC: 12 V
  • Actuator Type: Standard
  • Actuator Length: 4.00 mm
  • Contact Material: Copper Alloy
  • Contact Finish: Silver
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Features: Epoxy Sealed Terminals
  • Operating Temperature: -30°C to 70°C
  • Actuator Material: Polyoxymethylene (Acetal) (POM)
  • Switch Travel: 2.00 mm
  • Mechanical Life: 10,000 Cycles
  • Electrical Life: 10,000 Cycles

Dimensions & Appearance

Width:0.17 in.
Height:0.34 in.
Length:0.34 in.

Features

Pins:3
Contact Rating:0.1 A @ 12 VDC
Housing Material:Brass
Lead Pitch:0.2 in.
Switch Function:ON-ON
Contact Form:SPDT
,
