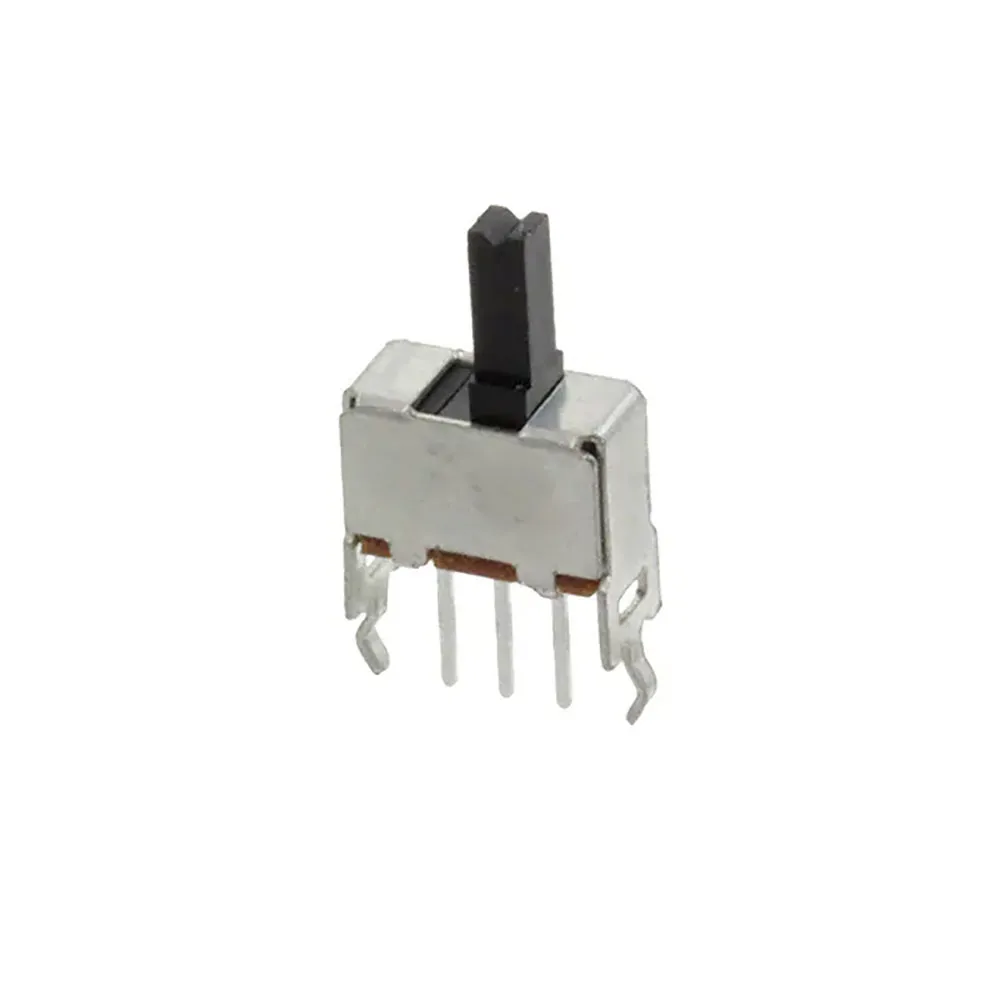

Slide Switch SPDT ON-ON 100mA 12VDC Through Hole

Specifications

  • Circuit: SPDT
  • Contact Timing: Non-Shorting (BBM)
  • Switch Function: ON-ON
  • Current Rating (Amps): 100 mA (DC)
  • Voltage Rating - DC: 12V
  • Actuator Type: Standard
  • Actuator Length: 6 mm
  • Actuator Material: N/A
  • Contact Material: Copper Alloy
  • Contact Finish: Silver
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Operating Temperature: -20°C to 70°C
  • Switch Travel: 2 mm
  • Operating Force: 250 gf

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Width:0.167 in.
Length:0.34 in.
Height:0.68 in.

Features

Pins:3
Contact Rating:0.1 A @ 12 VDC
Housing Material:Metal
Switch Function:ON-ON
Lead Pitch:2.0 in.
Contact Form:SPDT
,
