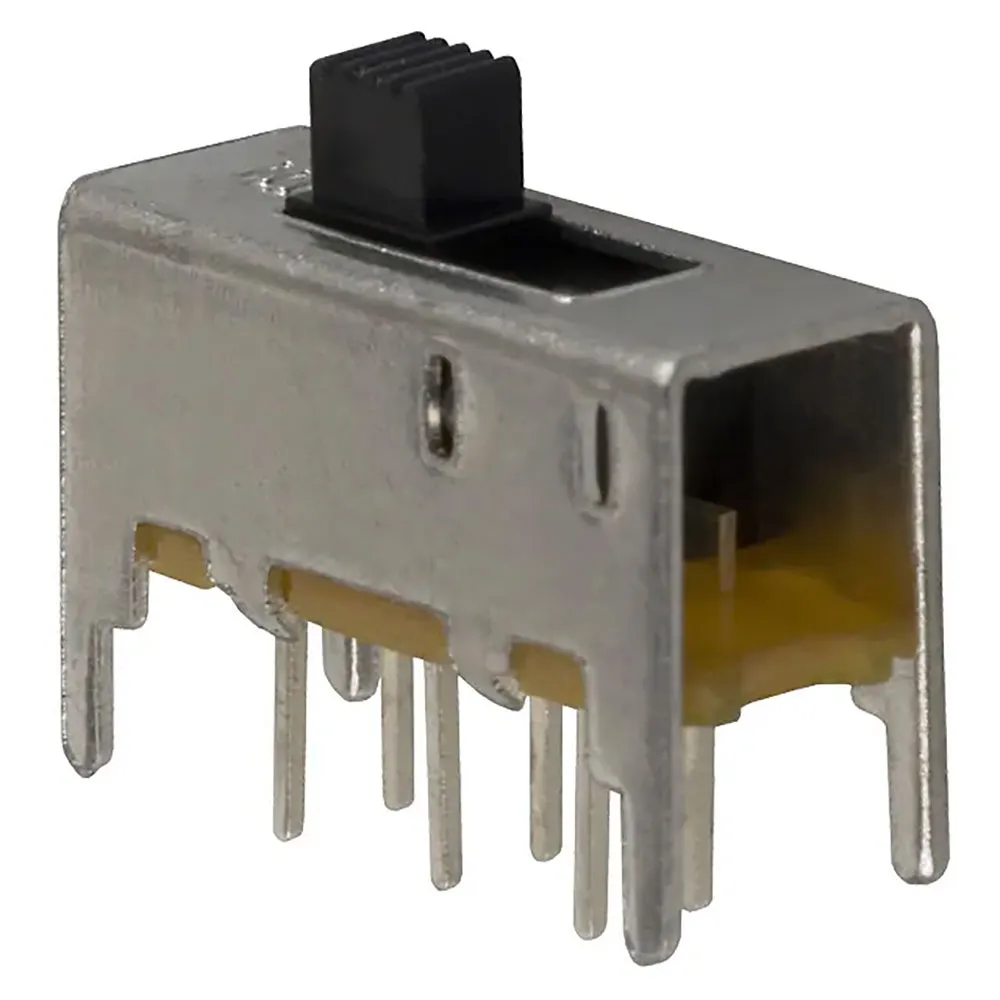

Slide Switch DPDT ON-ON 300mA 30VDC Through Hole

Specifications

  • Circuit: DPDT
  • Contact Timing: Non-Shorting (BBM)
  • Switch Function: ON-ON
  • Current Rating (Amps): 300 mA (DC)
  • Voltage Rating - DC: 30 V
  • Actuator Type: Standard
  • Actuator Length: 3 mm
  • Actuator Material: N/A
  • Contact Material: Copper Alloy
  • Contact Finish: Silver
  • Mounting Type: Through Hole
  • Termination Style: PC Pin
  • Operating Temperature: -20°C to 70°C
  • Switch Travel: 4 mm
  • Operating Force: 200 gf

Dimensions & Appearance

Width:0.25 in.
Height:0.59 in.
Length:0.625 in.

Features

Pins:6
Housing Material:Metal
Contact Rating:0.3 A @ 30 VDC
Switch Function:ON-ON
Lead Pitch:4.0 in.
Contact Form:DPDT
,
