Single Output Switching LED Power Supply 200W 12VDC 16.8A 180-264VAC Input

Features

  • AC input 180-264VAC
  • Withstand 300VAC surge input for 5 seconds
  • Design against rain splash
  • Protections: short circuit, overload, over voltage, over temperature
  • Cooling by free air convection
  • LED indicator for power on
  • Low cost, high reliability
  • 100% full load burn-in test
  • 3-year warranty

Applications

  • LED strip lighting
  • LED channel letters
  • LED display

Overview

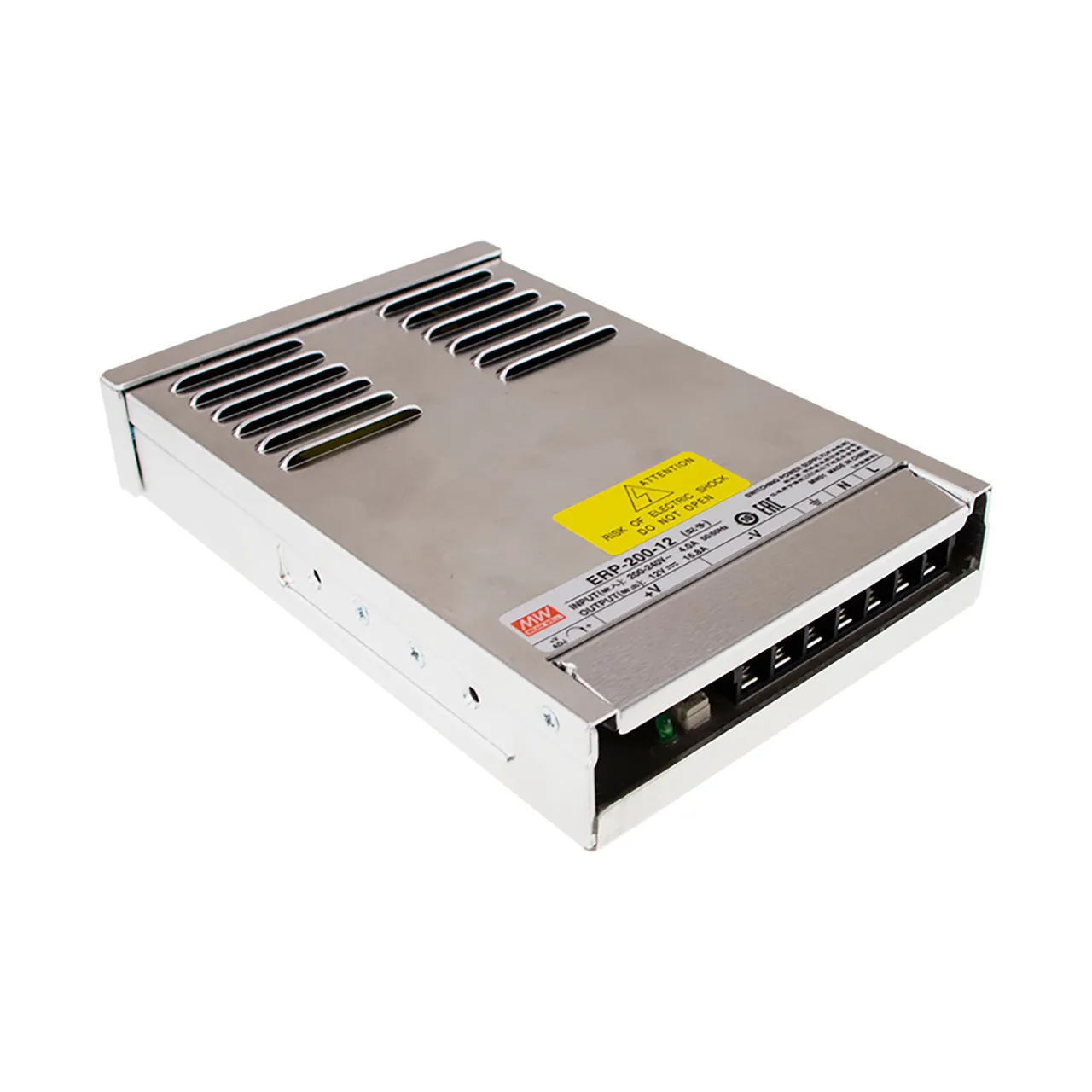

ERP-200 series is a 200W single output enclosed type AC/DC power supply. It adopts an aluminum case, and the interior is semi-potted, protecting the internal electronic components from rain splash and dust. With the complete protection functions, ERP-200 is suitable for the applications such as outdoor LED channel letters, billboard, commercial display, and more.

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:ERP-200

Compliance

Agency Approvals: CE, CQC, EAC, EN, IEC, UKCA, CB

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.57 in.
Width:4.72 in.
Length:7.87 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:180 VAC to 264 VAC
Maximum Input Current:4 A

Output

Number of Outputs:1
Output Voltage (Channel 1):12 VDC
Output Voltage:12 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):16.80 A
Output Current:16.80 A

Features

PFC Function:No
Minimum Isolation Voltage:3000V
Efficiency:87%
Power Rating:200 W
,
