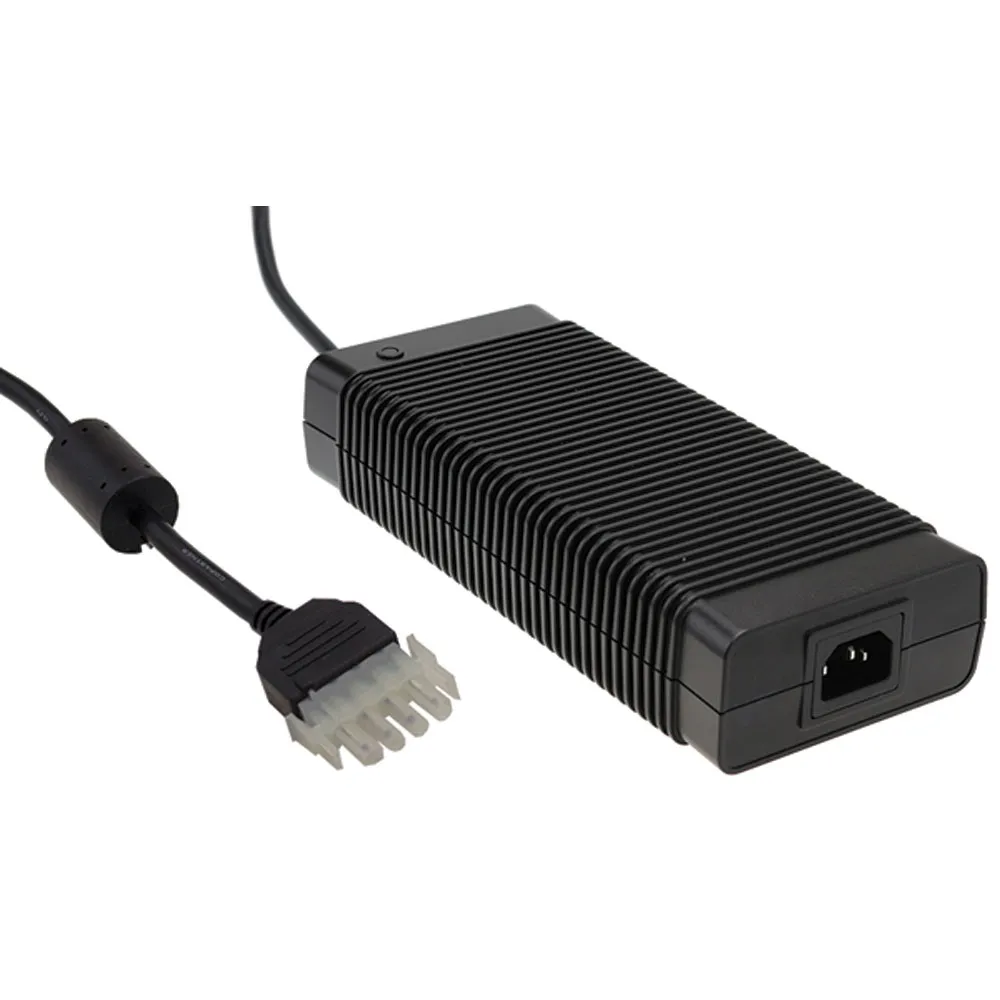

330W Single Output Battery Charger

40.8 Volts @ 6.4 Amps

Features

  • 2 stage charging characteristic
  • Universal AC input/Full range
  • Built-in active PFC function, PF>0.95
  • 3 pole AC inlet IEC320-C14
  • Class I power (with earth pin)
  • Protections: Short circuit/Over voltage/Over temperature
  • Fanless design, cooling by free air convection
  • Fully enclosed plastic case
  • 2 color LED indicator for charging status
  • Approvals: TUV/UL/CUL/CB/FCC/CE
  • 2 years warranty

    • Product Identification

    Additional Feature:For Lead-Acid (flooded /Gel / AGM) and Li-Ion
    Product Type:Battery Charger
    Manufacturer Series:GC330

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, FCC, TUV, UKCA, UL

    Dimensions & Appearance

    Color:Black
    Length:1.9 in.
    Width:3.8 in.
    Height:8.7 in.

    Operating conditions

    Minimum Operating Temperature:-30°C
    Maximum Operating Temperature:60°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:90 VAC to 264 VAC
    Maximum Input Current:4 A

    Output

    Output Connector Type:AMP 1-480702-0 equivalent
    Output Voltage:40.8 VDC
    Output Current:6.40 A

    Features

    PFC Function:Yes
    AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
    Efficiency:93.5%
    Power Rating:326 W
    ,
