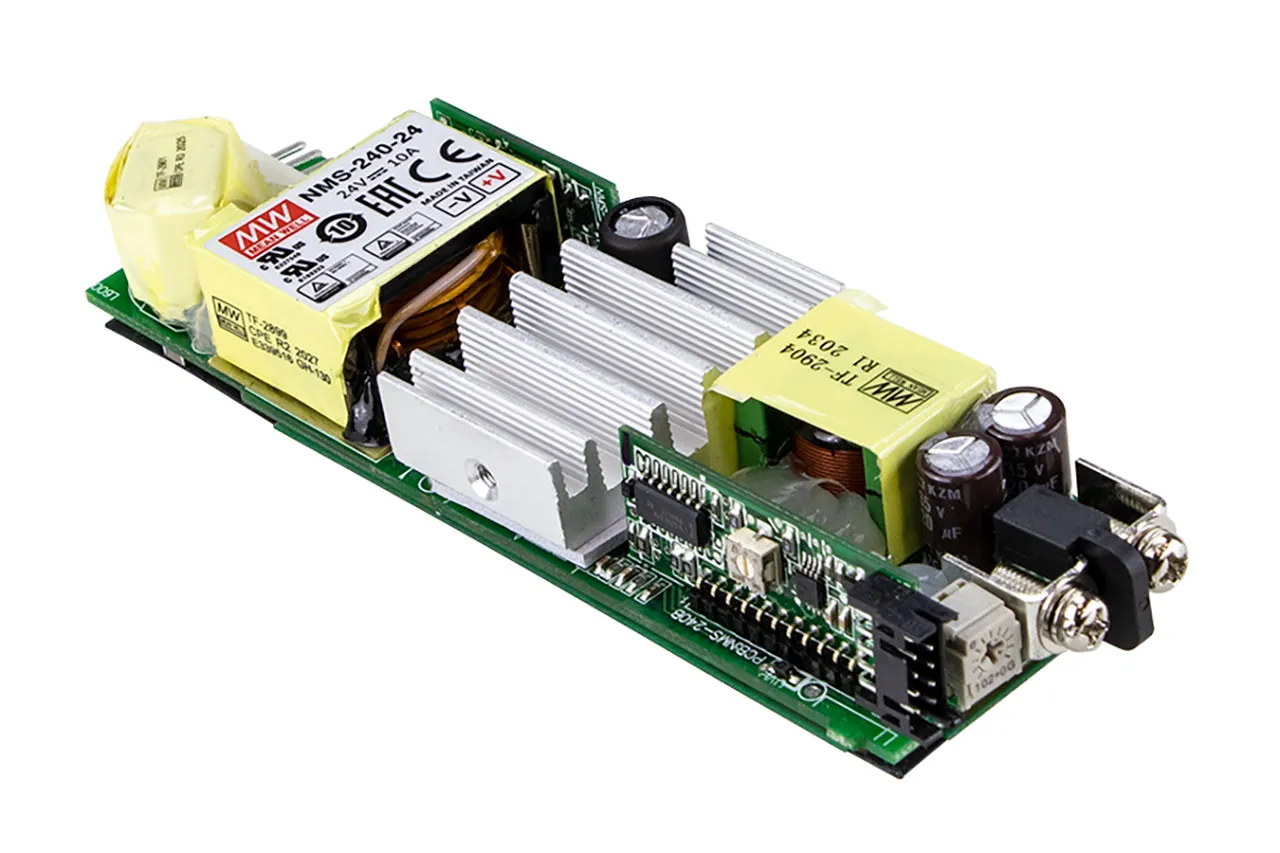

Single Output Power Supply Module for NMP Modular Power Series 240W 24V 10A

Features

• Medical (2x MOPP) ITE safety approvals
• Suitable for BF application with appropriate system consideration (Touch current <100µA/264VAC)
• 1U low profile
• Universal AC input / full range
• Output voltage and current programmable
• Built-in parallel function, output programmable, global enable, remote local ON-OFF, auxiliary DC output, over temperature alarm, DC OK
• Cooling by thermostatically controlled fan with fan alarm function
• Protections: Short circuit, overload, over voltage, over temperature for all output modules
• 5-year warranty

Overview

The NMP series is a 1U low profile modular and configurable type power supply from MEAN WELL. This family comprises two power wattage for the line-up, 650W and 1200W, and the output modules deliver up to 240W with adjustable options for the major working voltages used in the industry 5V, 12V, 24V, 48V, and Dual Output. NMP family complies with safety approval, the medical (2x MOPP between the primary to secondary) and ITE standards. It offers the best flexibility for various types of applications.

Applications

• Medical equipment
• Diagnostic or biological facilities
• MRI, CT and PET scanners
• Test or measurement systems
• Telecommunication equipment
• Factory automation and aging equipment
• Laser equipment
