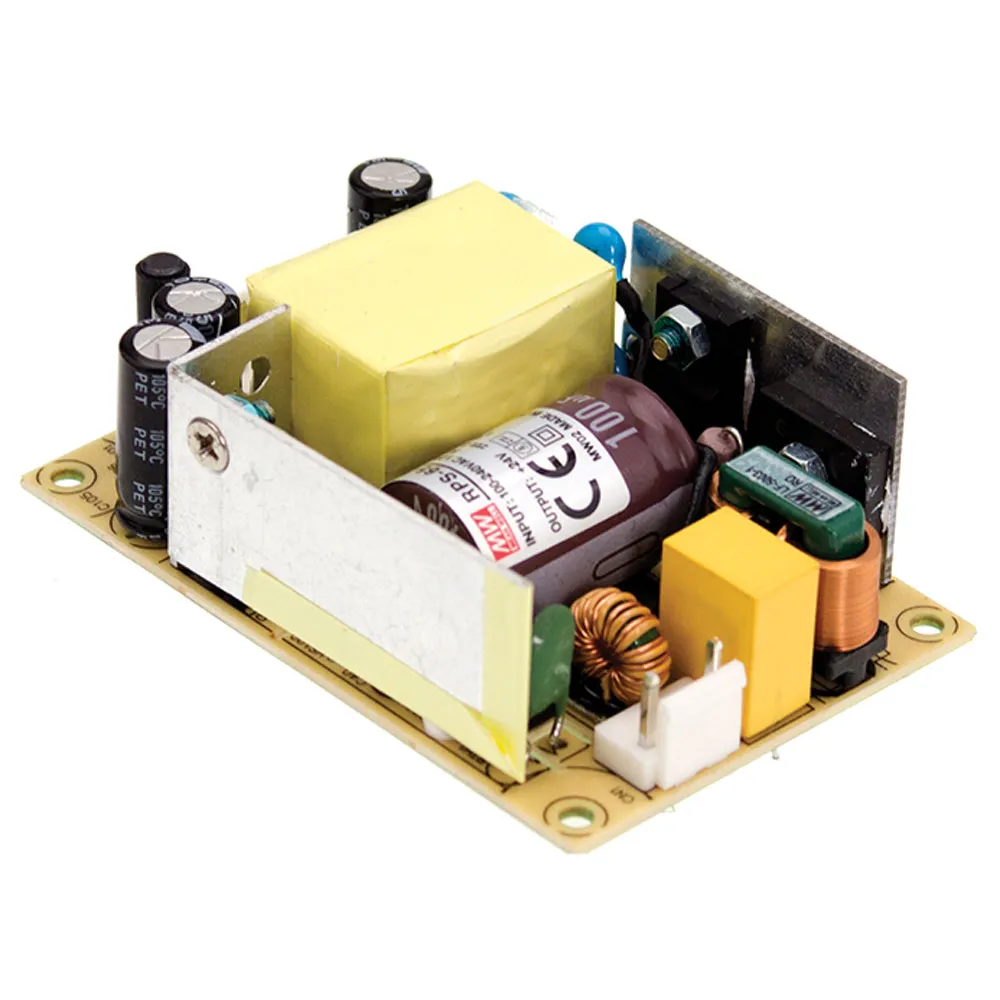

45W Single Output Medical Type

7.5 Volts @ 5.4 Amps

Features:

  • 3"x2" miniature size
  • Universal AC input/Full range
  • Medical safety approved (2 x MOPP between primary to secondary)
  • Suitable for BF application with appropriate system consideration
  • For 1U applications
  • Low leakage current < 100uA
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • No load power consumption < 0.1W
  • 3 year warranty

    Applications:

  • Oral irrigator
  • Hemodialysis machine
  • Medical monitors
  • Sleep apnea devices

    • Product Identification

    Type:Auto Switching SMPS
    Product Type:AC to DC Power Supply SMPS
    Manufacturer Series:RPS-45

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Medical Open Frame
    Height:0.945 in.
    Width:2 in.
    Length:3 in.

    Operating conditions

    Minimum Operating Temperature:-30°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:80 VAC to 264 VAC
    Maximum Input Current:1.2 A

    Output

    Number of Outputs:1
    Output Connector Type:JST B2P-VH or equiv.
    Output Connector Diameters:N/A
    Output Voltage:7.5 VDC
    Additional Output Voltages (VDC):N/A
    Output Current:5.40 A

    Features

    Minimum Isolation Voltage:4000V
    Efficiency:85%
    Power Rating:40.5 W
    ,
