Single Output Moisture-Proof Adapter Euro Plug Input 180-264VAC XLR 4P Output 36V 3.4A

Features

• Input range: 180-264VAC
• Class II power unit, no FG
• Built-in active PFC
• High efficiency up to 90.5%
• No load power consumption <0.15W
• Energy efficiency Level VI
• Comply with EU ErP
• Compliance to IEC/EN61558-1,-2-16 and IEC/EN60335-1 for household appliance
• Fanless design, cooling by free air convection
• Protections: short circuit, overload, over voltage, over temperature
• 5-year warranty

Overview

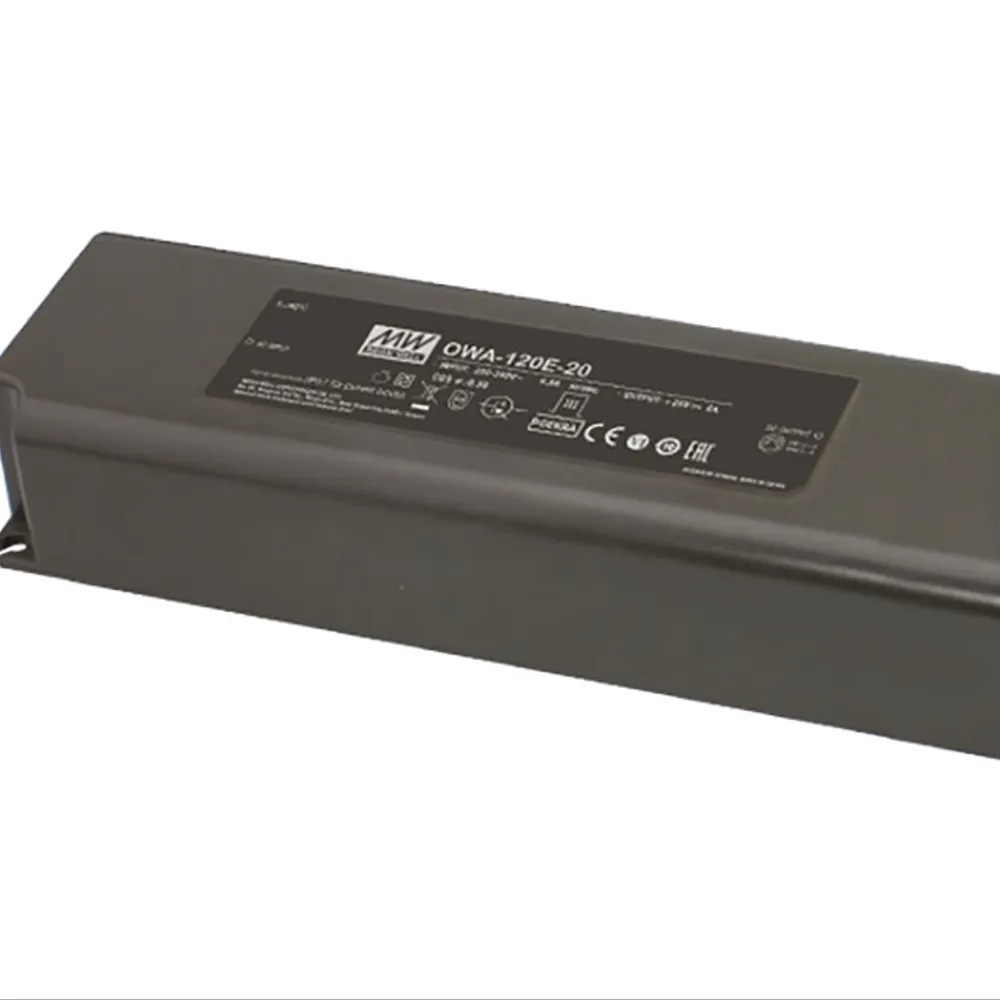

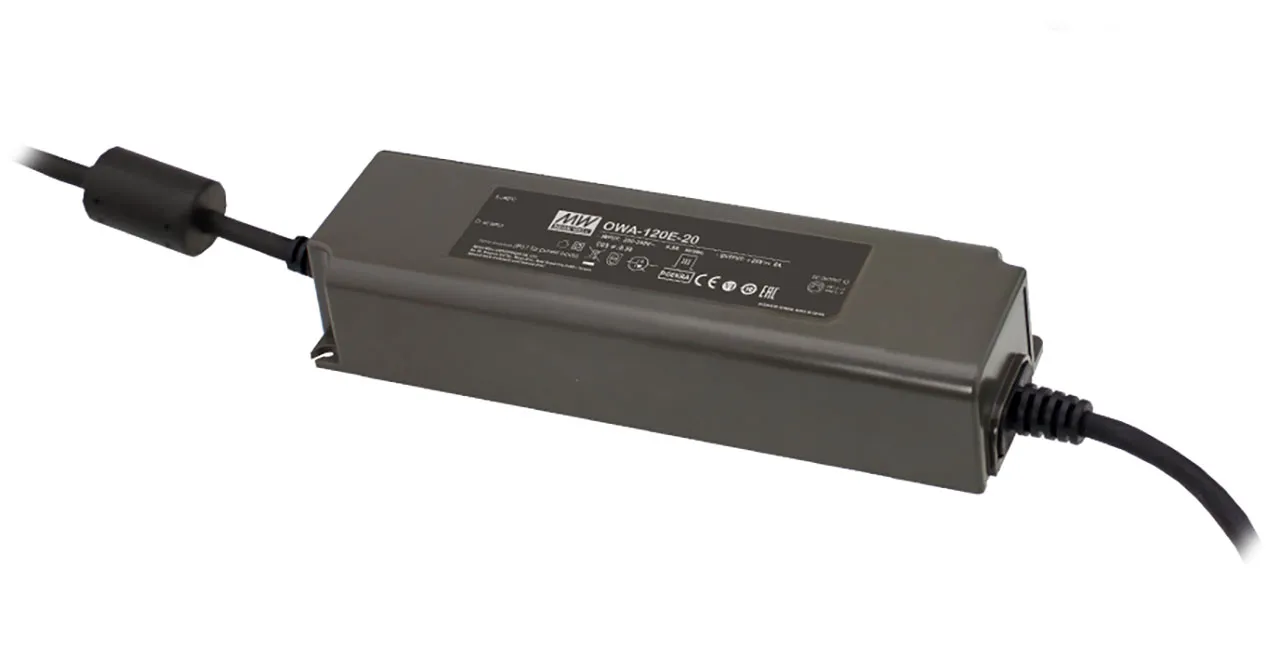

The OWA-120E series is a 120W AC/DC, class II (no FG) external power supply series pinpointing the moisture proof feature. The fully potted silicone inside the plastic enclosure enhances the head dissipation; it also benefits the power body of OWA-120E to achieve IP67 level, so the series specializes in the applications in which the damp, humidity or dust resistance is needed for the external power supply. OWA-120E follows the latest energy efficiency demand with the no load power consumption less than 150mW. It is certified with EN61558-2-16; moreover, the compliance to EN60335-1 for selected models can greatly simplify the system such a household appliances.

Applications

• Robotic lawn mower
• Household appliances
• Battery charging
• General electronic products in dusty or humid environment
