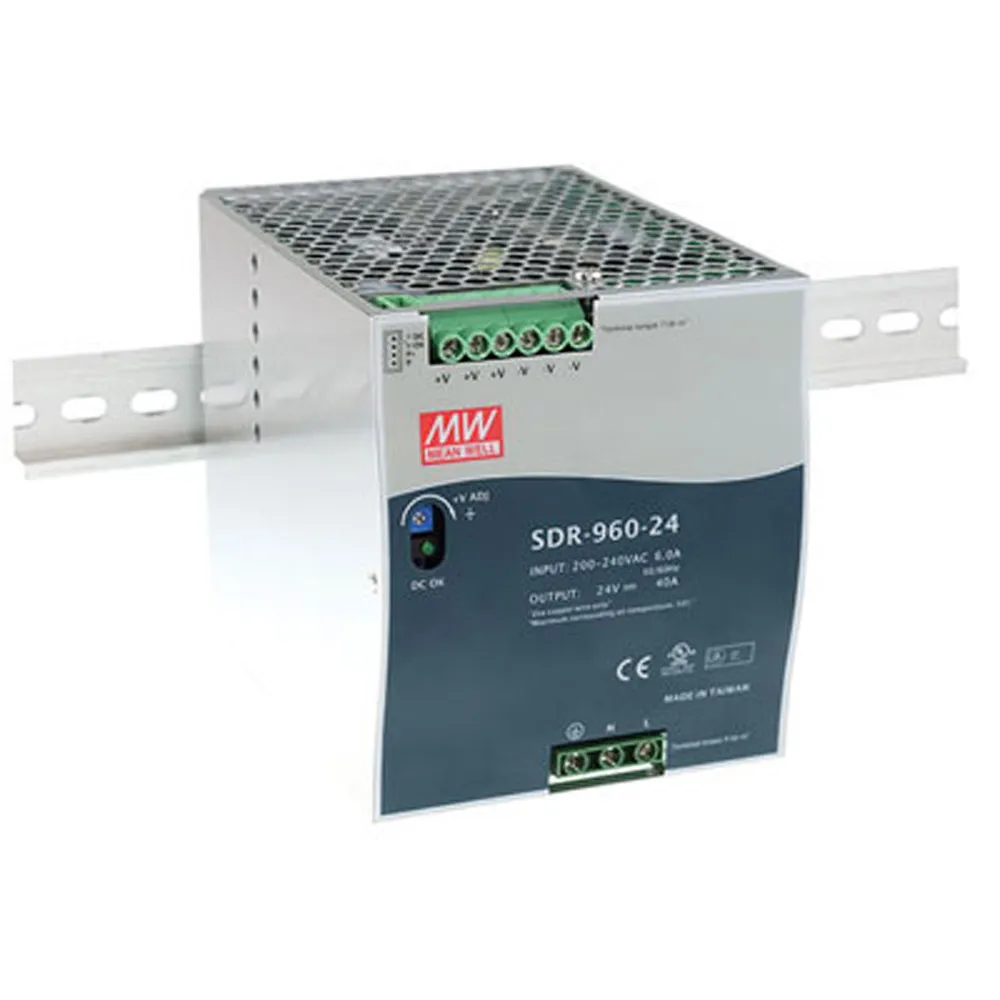

960 Watt Single Output Industrial DIN Rail Power Supply with PFC Function

24 Volts @ 40 Amps

Features

  • AC input 180~264VAC only
  • 130% Peak load capability
  • 110mm slim design
  • Built-in active PFC function compliance to EN61000-3-2
  • High efficiency 94% and low power dissipation
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL508 (industrial control equipment) approved
  • EN61000-6-2 (EN50082-2) industrial immunity level
  • Current sharing up to 3840W (3+1)
  • Built-in DC OK relay contact
  • 100% full load burn-in test
  • 3 years warranty

Overview

Product Identification

Product Type:DIN Rail Power Supply SMPS
Manufacturer Series:SDR-960

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Color:Silver
Depth:4.33 in.
Width:4.93 in.
Height:5.91 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:180 VAC to 264 VAC
Maximum Input Current:6 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:40 A

Features

Low Power Source (LPS):No
PFC Function:Yes
Efficiency:94%
Power Rating:960 W
,
