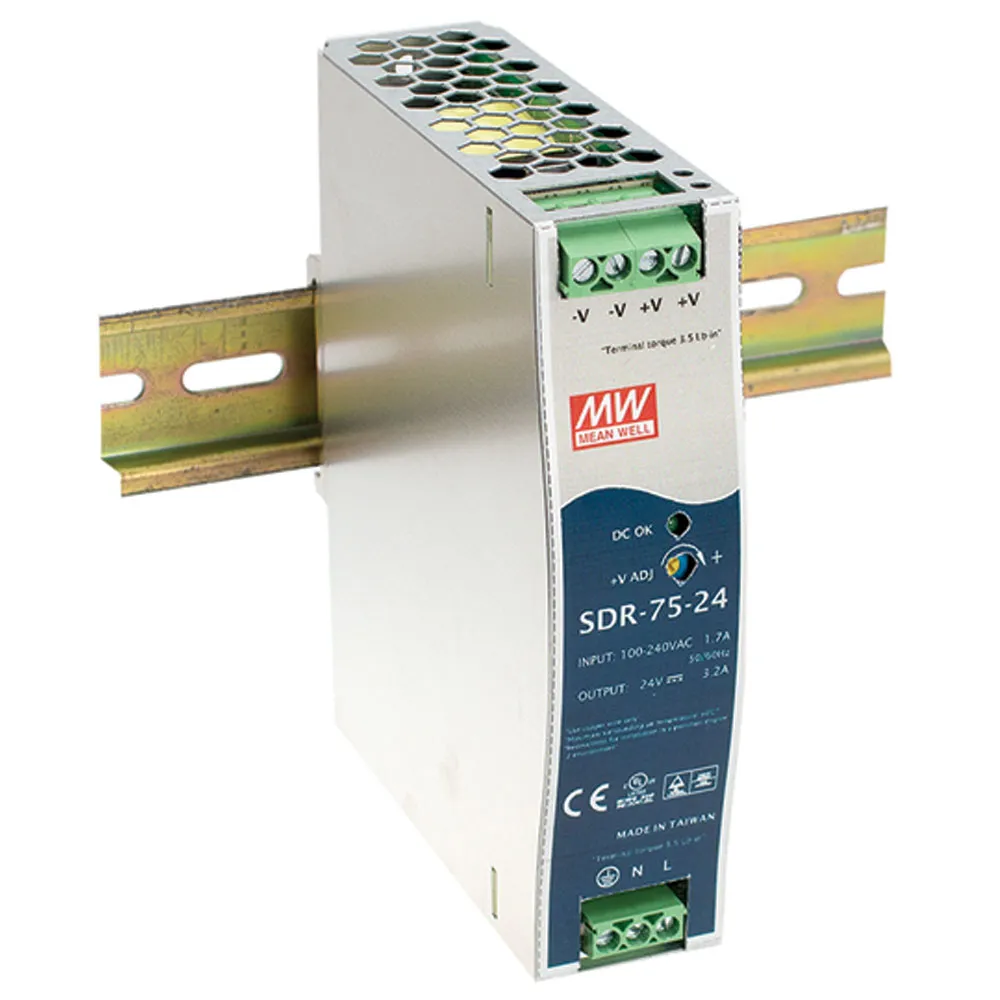

76.8W Single Output Industrial DIN RAIL Power Supply

24 Volts @ 3.2 Amps

Features

  • High efficiency 89% and low power dissipation
  • 150% peak load capability
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Can be installed on DIN Rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • 3 years warranty

Overview

Product Identification

Product Type:DIN Rail Power Supply SMPS
Manufacturer Series:SDR-75

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, SEMI, TUV, UL

Dimensions & Appearance

Depth:1.26 in.
Color:Silver
Height:4.02 in.
Width:4.93 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 264 VAC
Maximum Input Current:1.4 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:3.20 A

Features

PFC Function:No
Low Power Source (LPS):No
Efficiency:89%
Power Rating:76.8 W
,
