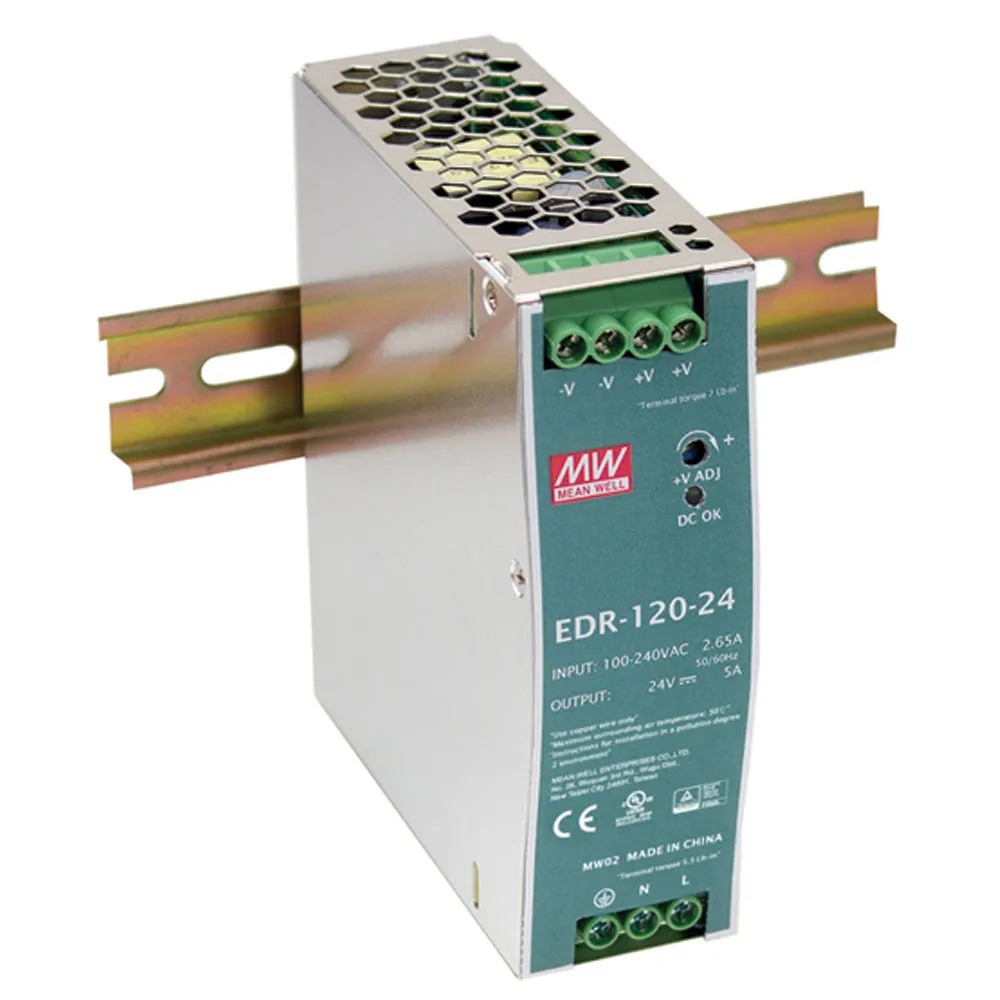

Single Output DIN rail power supply 24 Volts 5 Amps 120 Watts

24 Volts @ 5 Amps

Specifications

  • Output Power (W): 120
  • Ripple & Noise (mV p-p): 120
  • Load Regulation (±): 1%
  • Line Regulation (±): 0.5%
  • Efficiency: 87.5%
  • Size (L x W x H) inches: 4.5 x 1.6 x 4.9
  • Universal AC input / Full range
  • Built-in active PFC function
  • Protections: short circuit, over voltage, overload, over temperature
  • Cooling by free air convection
  • 100% full load burn-in test
  • 2 year warranty

Product Identification

Product Type:DIN Rail Power Supply SMPS
Manufacturer Series:EDR-120

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Depth:1.57 in.
Color:Silver
Height:4.47 in.
Width:4.93 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:2.25 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:5 A

Features

PFC Function:No
Low Power Source (LPS):No
Efficiency:87.5%
Power Rating:120 W
,
