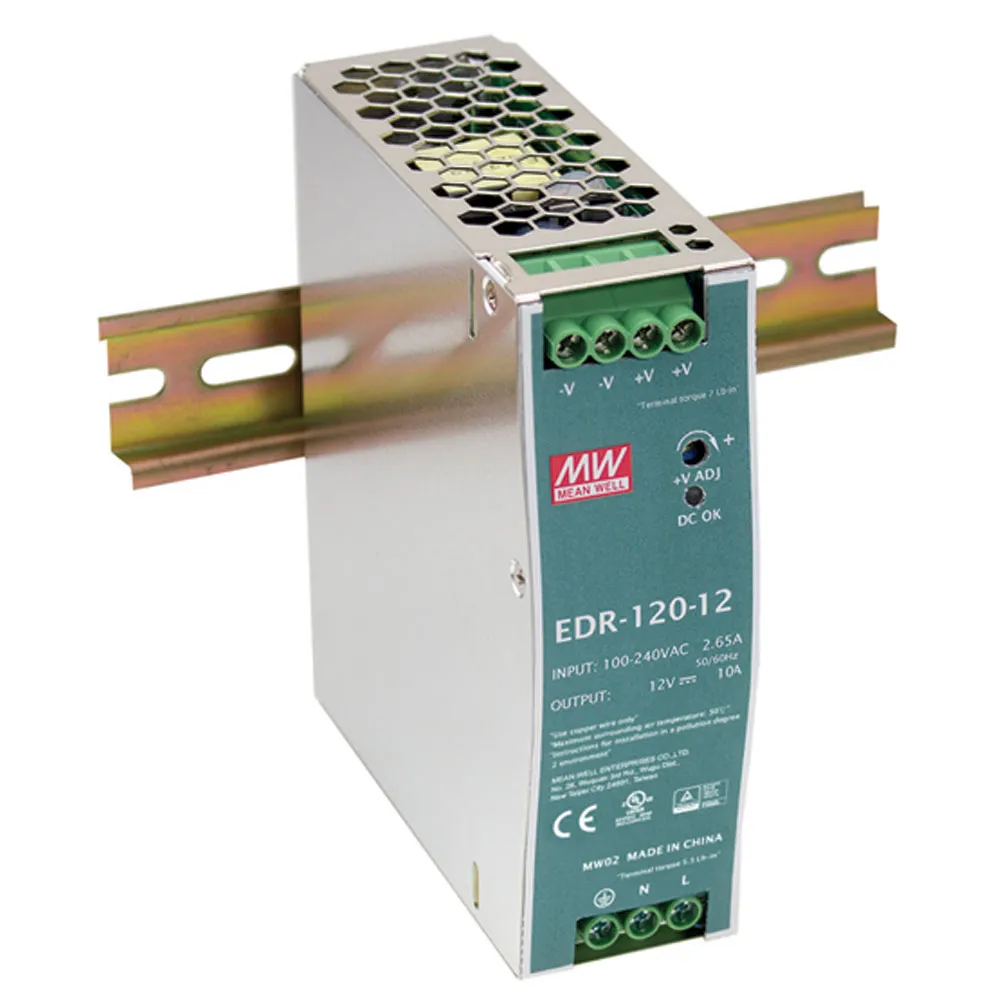

Single Output DIN rail power supply 12 Volts 10 Amps 120 Watts

12 Volts @ 10 Amps

Specifications

  • Output Power (W): 120
  • Ripple & Noise (mV p-p): 100
  • Load Regulation (±): 1%
  • Line Regulation (±): 0.5%
  • Efficiency: 85%
  • Size (L x W x H) inches: 4.5 X 1.6 X 4.9
  • Universal AC input / Full range
  • Built-in active PFC function
  • Protections: short circuit, over voltage, overload, over temperature
  • Cooling by free air convection
  • 100% full load burn-in test
  • 2 year warranty

    • Product Identification

    Product Type:DIN Rail Power Supply SMPS
    Manufacturer Series:EDR-120

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Depth:1.57 in.
    Color:Silver
    Height:4.47 in.
    Width:4.93 in.

    Operating conditions

    Minimum Operating Temperature:-20°C
    Maximum Operating Temperature:60°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:90 VAC to 264 VAC
    Maximum Input Current:2.25 A

    Output

    Number of Outputs:1
    Output Voltage:12 VDC
    Output Connector Type:Screw Terminal Block
    Additional Output Voltages (VDC):N/A
    Output Current:10 A

    Features

    PFC Function:No
    Low Power Source (LPS):No
    Efficiency:85%
    Power Rating:120 W
    ,
