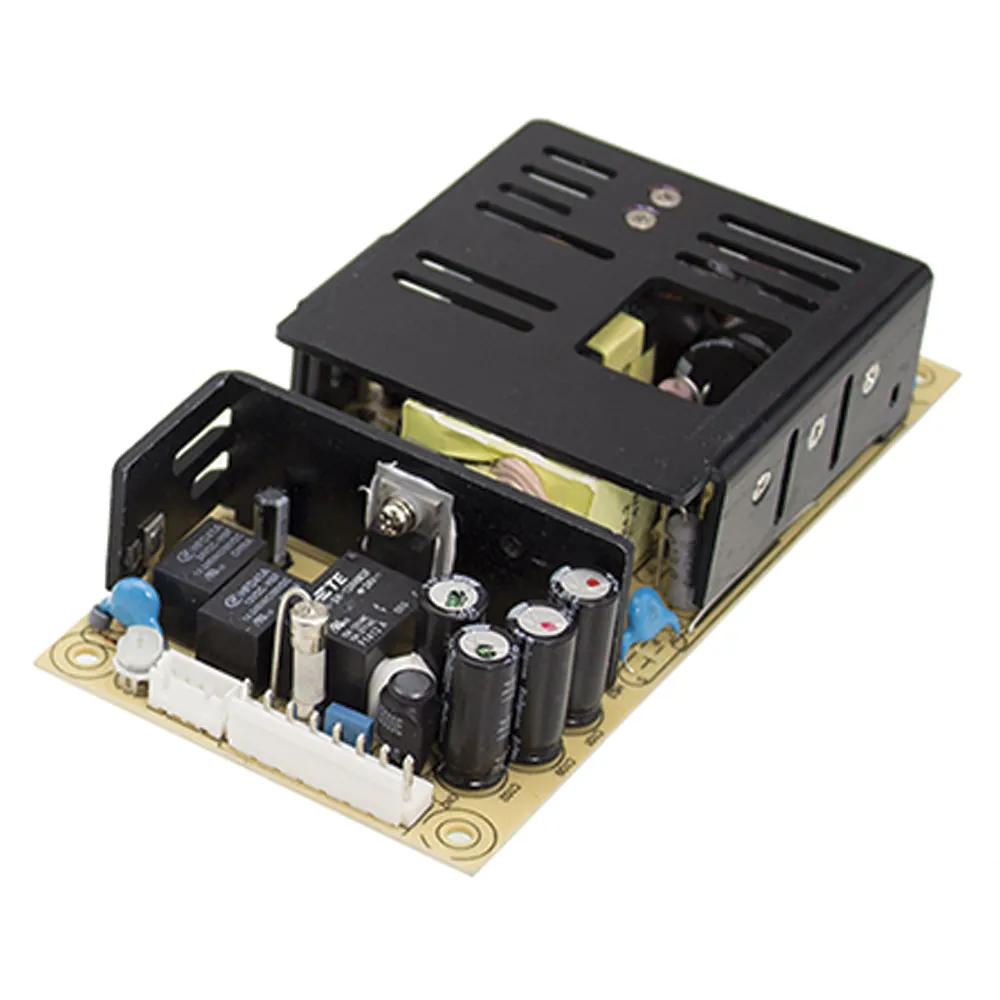

Single Output 2 Channel Security power Supply 13.8 Volts 7.6/4 Amps 160 Watts (Enclosed type)

13.8 Volts @ 7.6/4 Amps

Find out more about MEAN WELL Security Power Solutions.

Specifications

  • Output Power (W): 160
  • Ripple & Noise (mV p-p): 150
  • Load Regulation (±): 0.5%
  • Line Regulation (±): 0.5%
  • Efficiency: 88%
  • Size (L x W x H) inches: 6.1 X 3.3 X 1.5
  • Universal AC input / Full range
  • Built-in active PFC function
  • Protections: short circuit, over voltage, overload
  • Battery low protection/ Battery reverse polarity protection by fuse
  • Cooling by free air convection
  • 2 year warranty

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:PSC-160

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.5 in.
Width:3.3 in.
Length:6.1 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:2.5 A

Output

Number of Outputs:1
Output Voltage (Channel 1):13.8 VDC
Output Voltage:13.8 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):7.6 A
Output Current:7.60 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:88%
Power Rating:160 W
,
