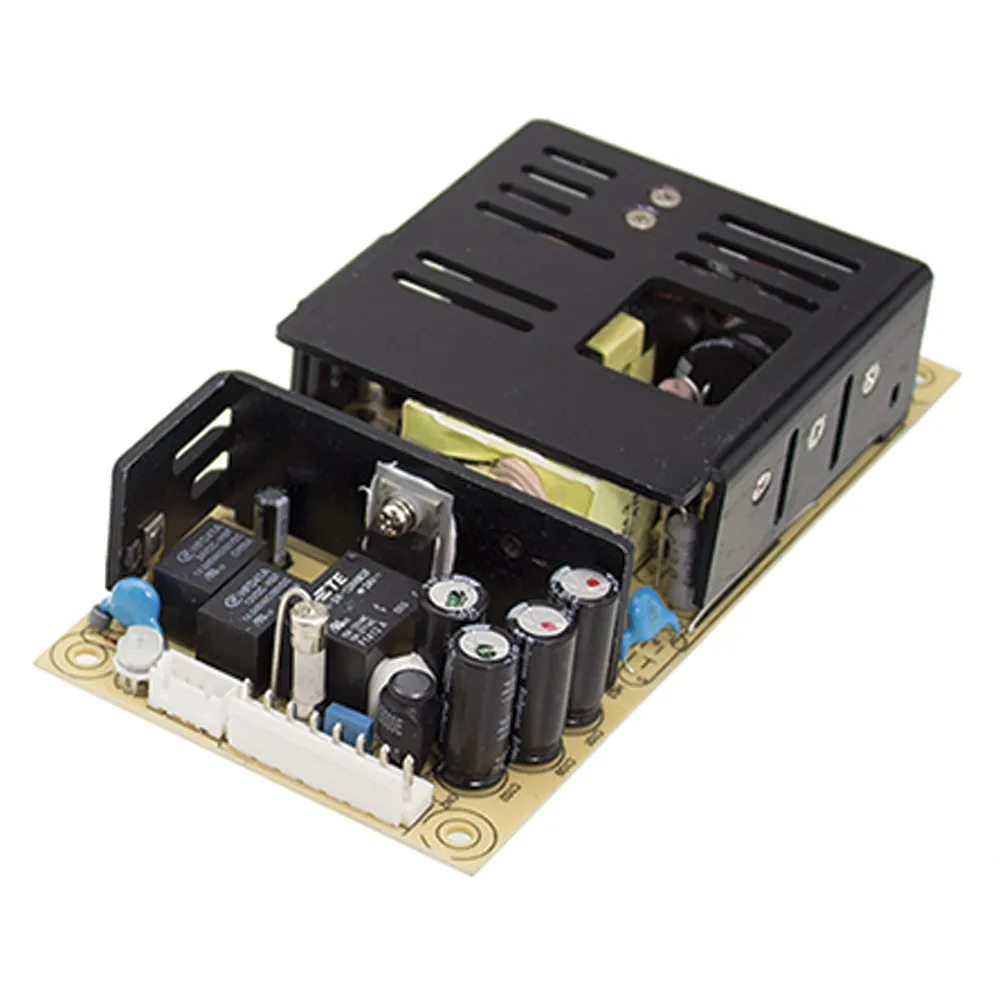

Single Output 2 Channel Security power Supply 13.8 Volts 7.6/4 Amps 160 Watts

13.8 Volts @ 7.6/4 Amps

Find out more about MEAN WELL Security Power Solutions.

Specifications

  • Output Power (W): 160
  • Ripple & Noise (mV p-p): 150
  • Load Regulation (±;): 0.5%
  • Line Regulation (±;): 0.5%
  • Efficiency: 88%
  • Size (L x W x H) inches: 6 X 3 X 1.3
  • Universal AC input / Full range
  • Built-in active PFC function
  • Protections: short circuit, over voltage, overload
  • Battery low protection/ Battery reverse polarity protection by fuse
  • Cooling by free air convection
  • 2 year warranty

Product Identification

Manufacturer Series:PSC-160

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Open Frame
Height:1.30 in.
Width:3 in.
Length:6 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:2.5 A

Output

Number of Outputs:2
Output Connector Type:JST B8P-VH or equiv.
Additional Output Voltages (VDC):13.8
Output Voltage:13.8 VDC
Output Current:7.60 A

Features

PFC Function:Yes
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:88%
Power Rating:160 W
,
