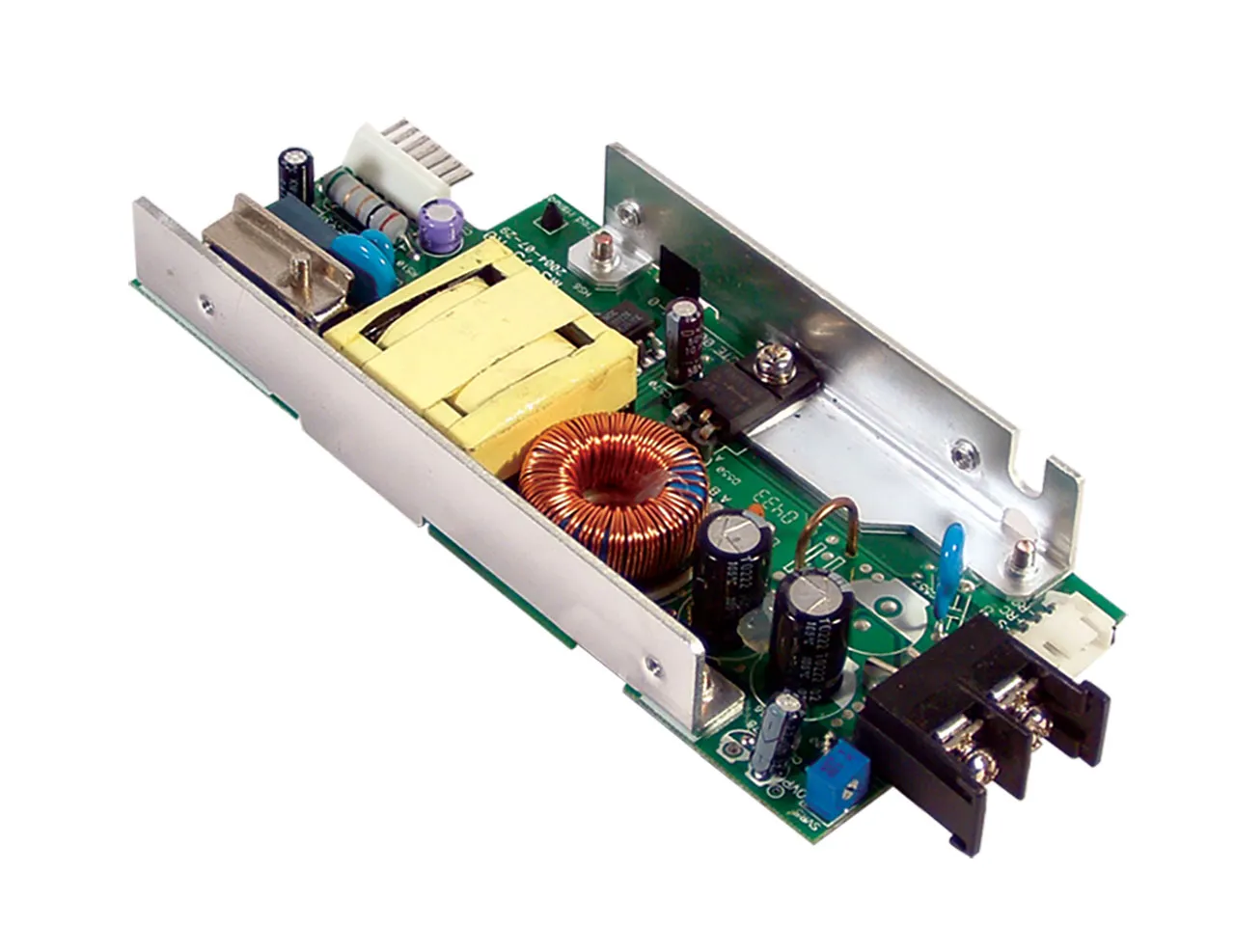

Single Output 1-Slot for Modular Power Supply 76W 24V 3.2A Remote Sense PFC

Features

  • Various output configurations are selectable
  • Built-in active PFC, PF>0.95
  • Universal AC input / full range
  • Remote control on every individual output module
  • Remote sense on every single output module (MS-75, 150, 210, 300, 360)
  • Remote margin / V-Program (MS-210/360)
  • Built-in parallel function (MS-210/300/360)
  • Protections: Short circuit, overload, over voltage for all output modules
  • Additional 12V/0.1A auxiliary output for remote control
  • Cooling by built-in DC fan with fan alarm function
  • 3-year warranty

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:MS-75

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UKCA, UL

Dimensions & Appearance

Style:Modular
Color:Silver
Width:0.83 in.
Height:2.36 in.
Length:5.43 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC

Output

Number of Outputs:3
Output Voltage (Channel 1):24 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Output Current (Channel 1):3.20 A
Output Current:3.20 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3000V
Power Rating:76.8 W
,
