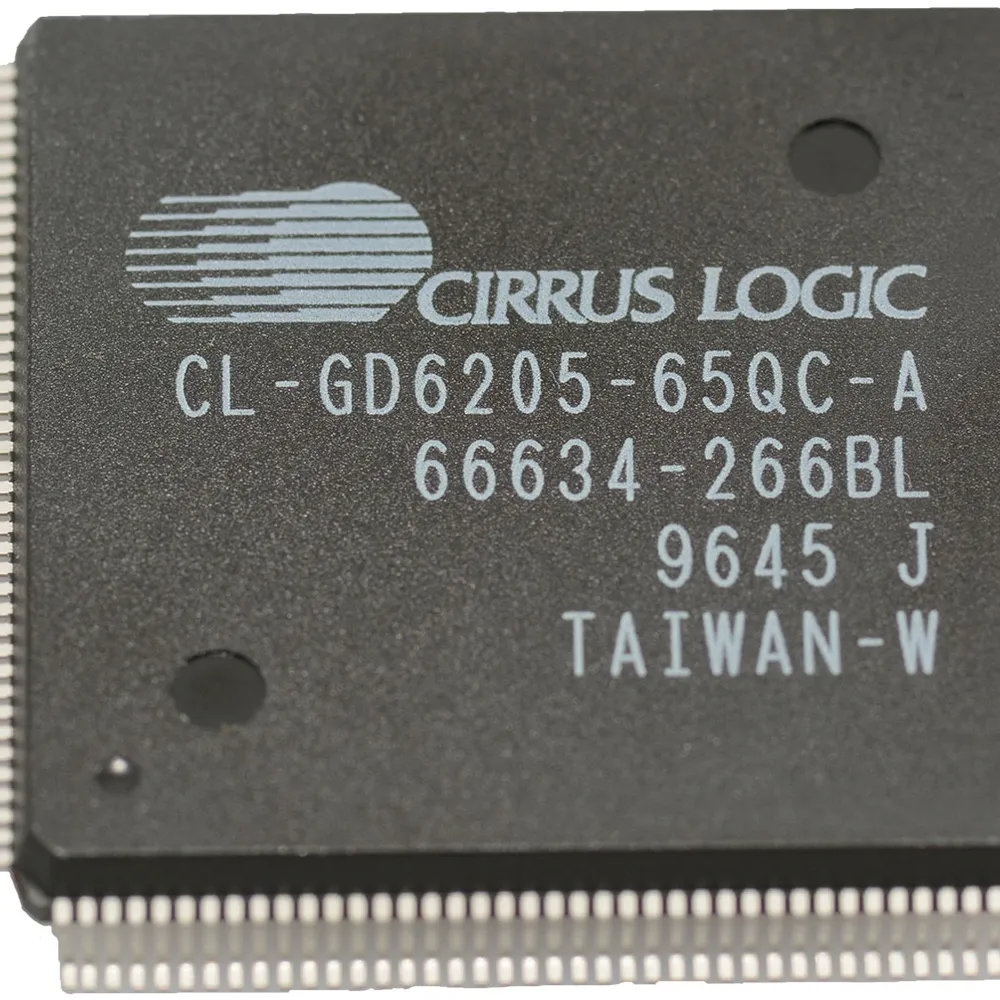

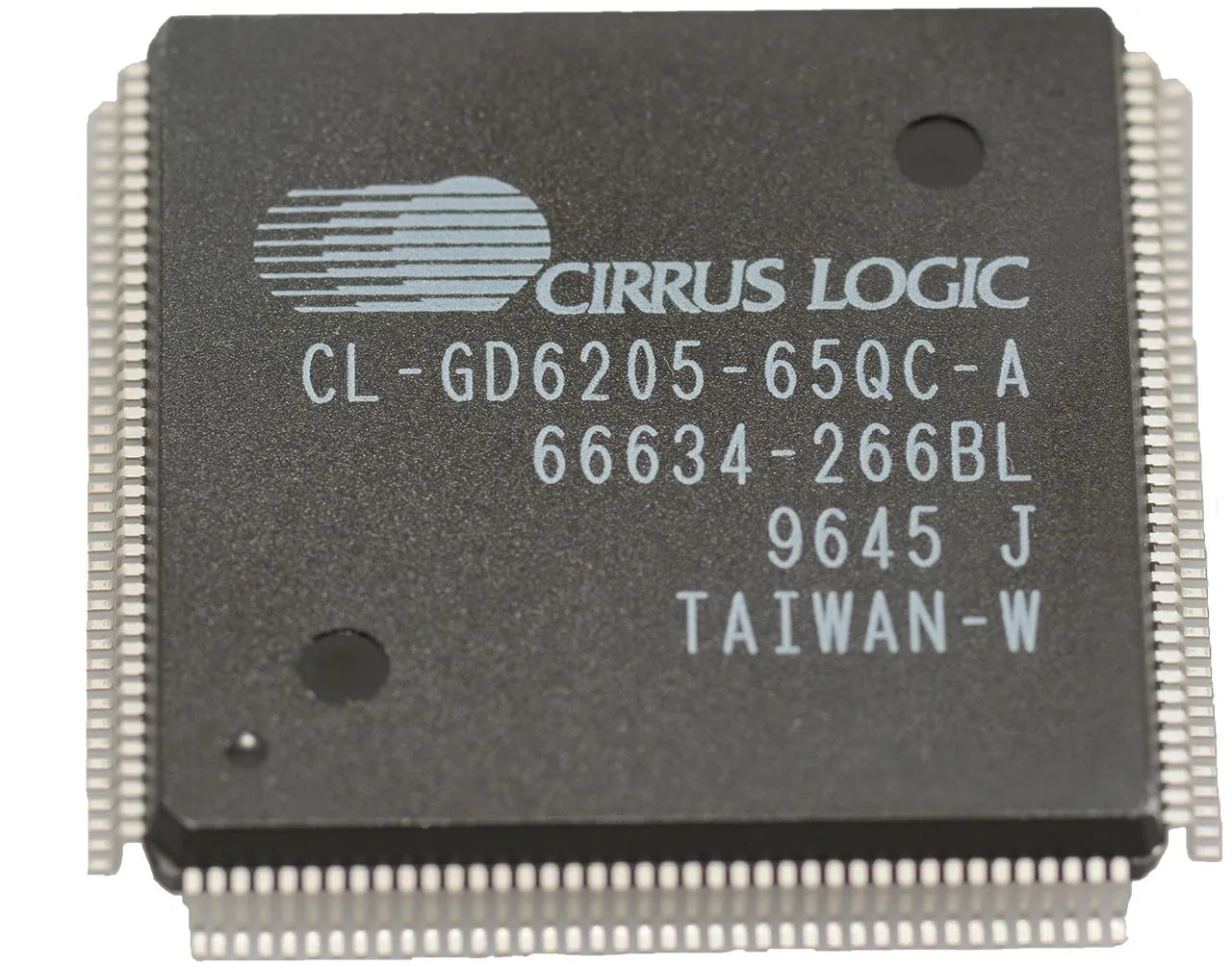

Single DRAM LCD/VGA Controller for Notebook Computers

Clearance

Cirrus Logic

Jameco Part #:

Manufacturer #:

Primary datasheet

Product Price:

$6.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$6.950	-	-
10+	$6.250	0.70	10.07%
50+	$5.590	1.36	19.57%
100+	$4.950	2.00	28.78%

Features

Bus Supported: ISA
Panels Supported: Monochrome STN, Color TFT
IBM VGA hardware-compatible
Integrated RAMDAC
Integrated programmable frequency synthesizer
Supports single 256K x 16 DRAM configuration
Integrated color TFT panel support
Windows performance improvement features
Supports 3.3V and 5.0V mixed-voltage operation
160-pin QFP

Overview

The (CL-GD6205 family of advanced single-chip flat panel VGA controllers are designed for use in portable systems with stringent power consumption and form-factor requirements. Product family pin compatibility provides easy upgrade capability to color or higher performance systems.
