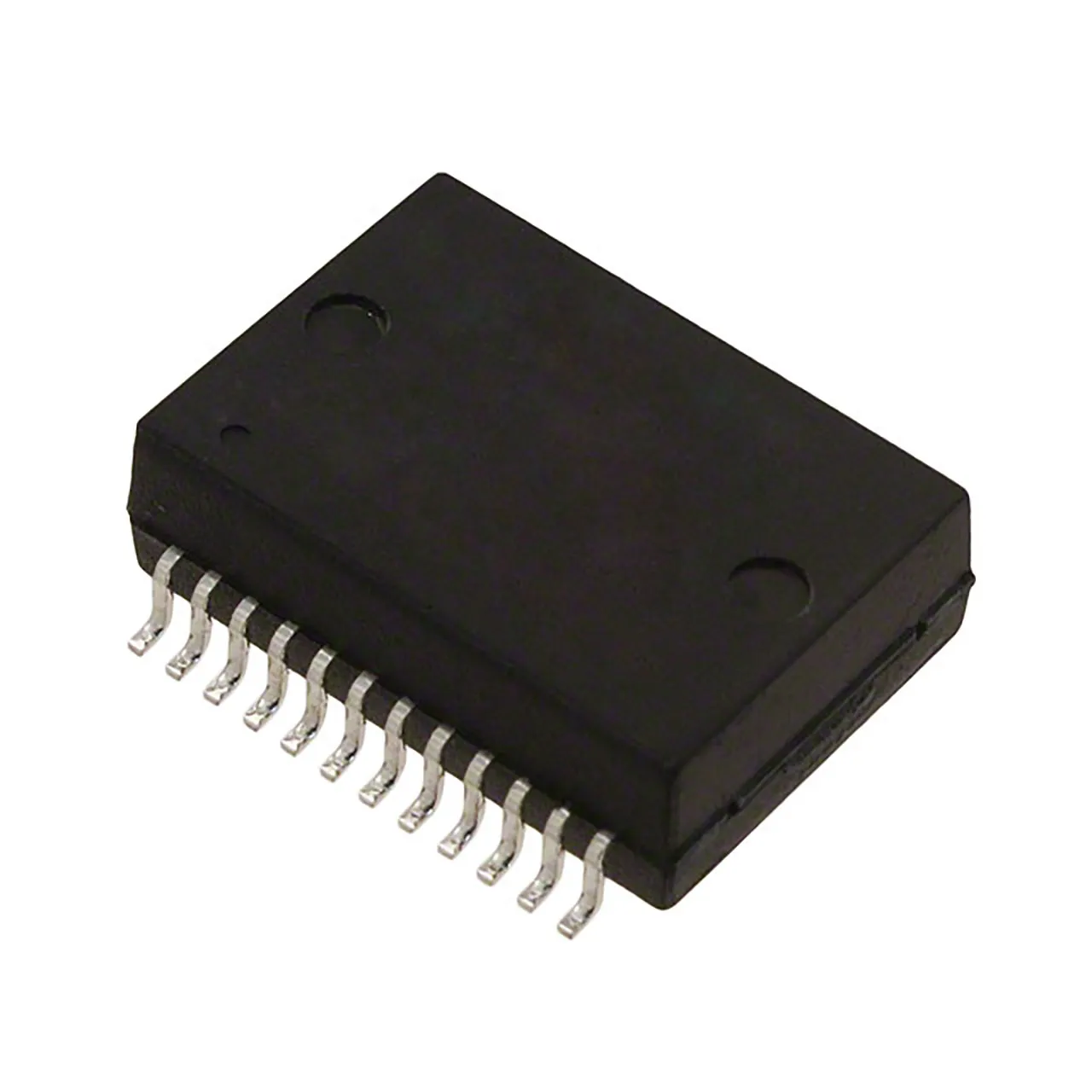

Signal Transformer 1000BaseT SMD 1-Port

Features

  • RoHS: N
  • Product: LAN Transformers
  • Type: Module
  • Termination Style: Pin
  • Frequency Range: 1 MHz to 100 MHz
  • Isolation Voltage: 1.5 kV
  • Minimum Operating Temperature: 0 C
  • Maximum Operating Temperature: + 70 C
  • Number of Channels: Single
  • Application: 1000 Base-T
  • Package / Case: SOIC-24
  • Length: 17.53 mm
  • Width: 16 mm
  • Height: 5.51 mm
  • Series: H5007
  • Brand: Pulse Electronics
  • Current Rating: 8 mA
  • Moisture Sensitive: Yes
  • Product Type: Audio & Signal Transformers
  • Shielding: Unshielded

Overview

Product Identification

Product Type:LAN Isolation and Data Interface (Encapsulated)

Dimensions & Appearance

Width:16 mm
Length:17.53 mm
Height:5.51 mm
Mounting:Surface Mount

Features

Turns Ratio:1:1
Transformer Type:Pulse Transformer
Secondary Impedance:N/A
Primary Impedance:N/A
Inductance:N/A
Power Rating:N/A
,
