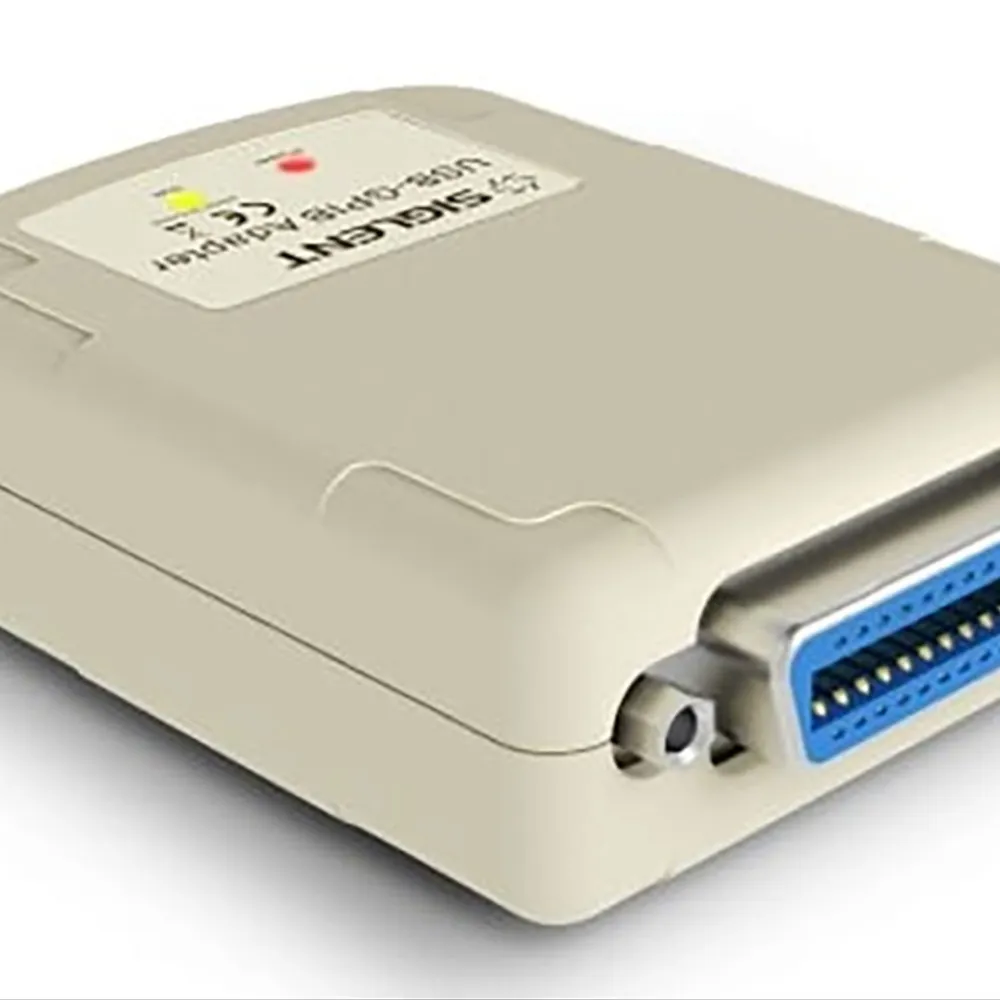

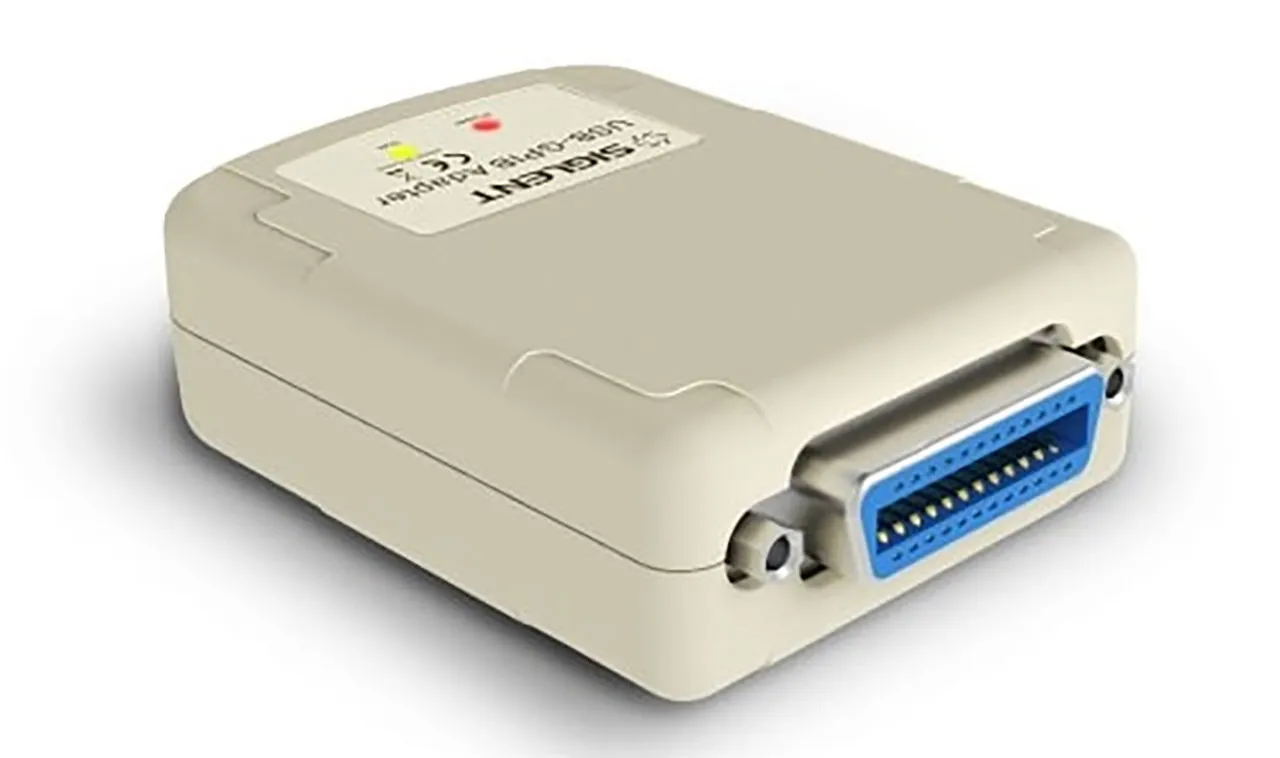

Siglent USB-GPIB Adapter

USB-GPIB adapter is used with a Siglent instrument which has the USB Host interface but has no GPIB interface (eg SDS1000 series digital oscilloscope) .

This GPIB connector end follows the IEEE 488.2 standard and the USB connection terminal follows the USB 2.0 specification. Detailed GPIB commands, please consult the "Remote Command Control Manual."

Key Features

• Compatible with:
  • SDM3065X/SDM3055/SDM3045X digital multimeters
  • SDG6000X/SDG5000/SDG2000X/SDG1000X/SDG1000 arbitrary waveform generators
  • SSA3000X/SVA1000X spectrum analyzers
  • SDS1000CFL oscilloscopes
  • SSG3000X/-IQE series of RF generators
  • SSG5000X/-V series RF generators
• NOTE: Not compatible with the SDS1000X, X-E or SDS2000X families of oscilloscopes.


• Features and Benefits:
  • This adapter is powered by the USB Host interface power supply, no external power supply is required
  • The adapter communicates with the Siglent instrument through its USB Host interface using GPIB control
  • The GPIB interface is only supported in the Device model, does not support Controller mode



• Weight: 2 lbs
• Dimensions: 9 × 6 × 3 in
