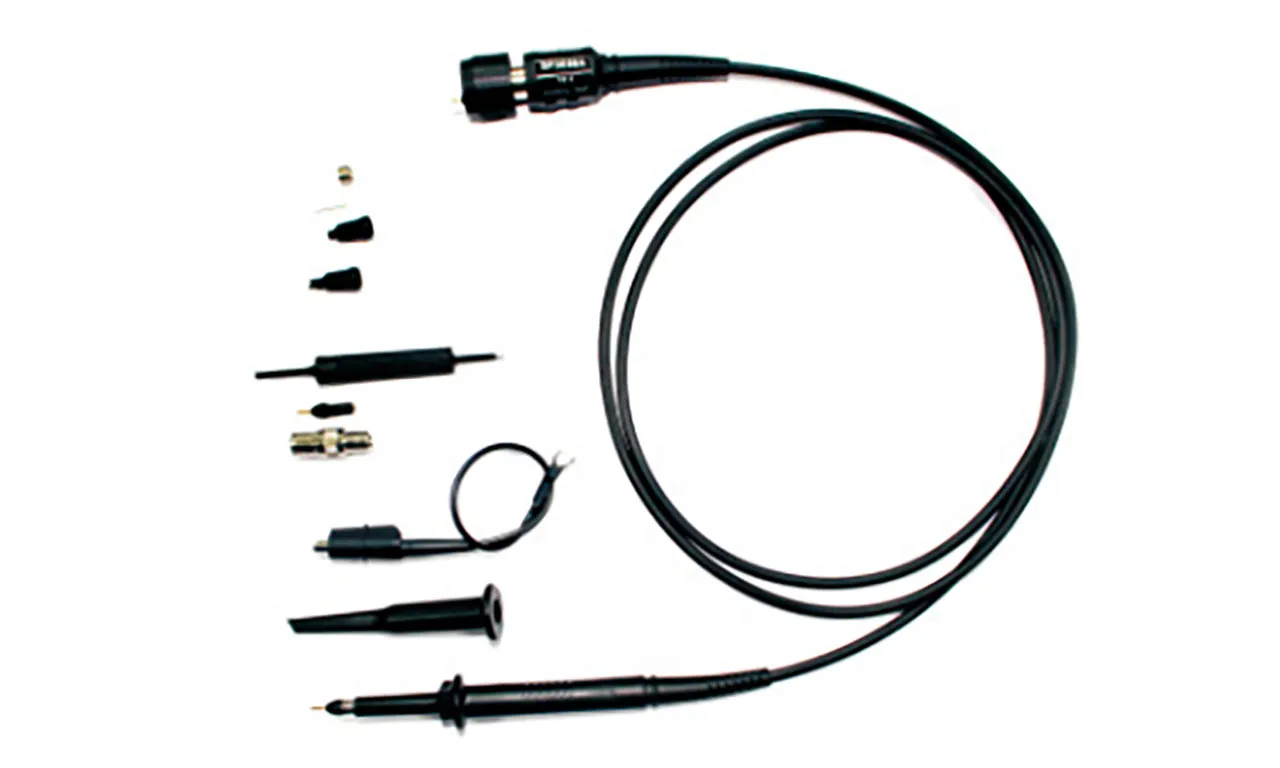

Siglent Oscilloscope Probe 500 MHz
Features
- Bandwidth: 500 MHz
- 11 pf, 10 Mohm ± 1%
- Maximum input: CAT II 400 Vrms
- Operating temperature 0 to 50 degrees
- Weight: 2 lbs
- Dimensions: 9 x 6 x 3 in
Overview
This 10X 500 MHz probe is tuned for use with SIGLENT SDS6000A Oscilloscopes. Not recommended for use with other Siglent oscilloscopes.
Product Identification
Product Type:Probe
Features
Attenuation Ratio:10:1
Bandwidth:500 MHz
Resistance:10M Ohm
Capacitance:11 pF (10X)
Voltage Rating:400 Vrms
