Siglent 4-Piece Lab Test Equipment Bundle

Save money when you buy the bundle! A full range of testgear for electronics engineers, production testing, and school labs to generate signals and capture and analyze responses from equipment under test.

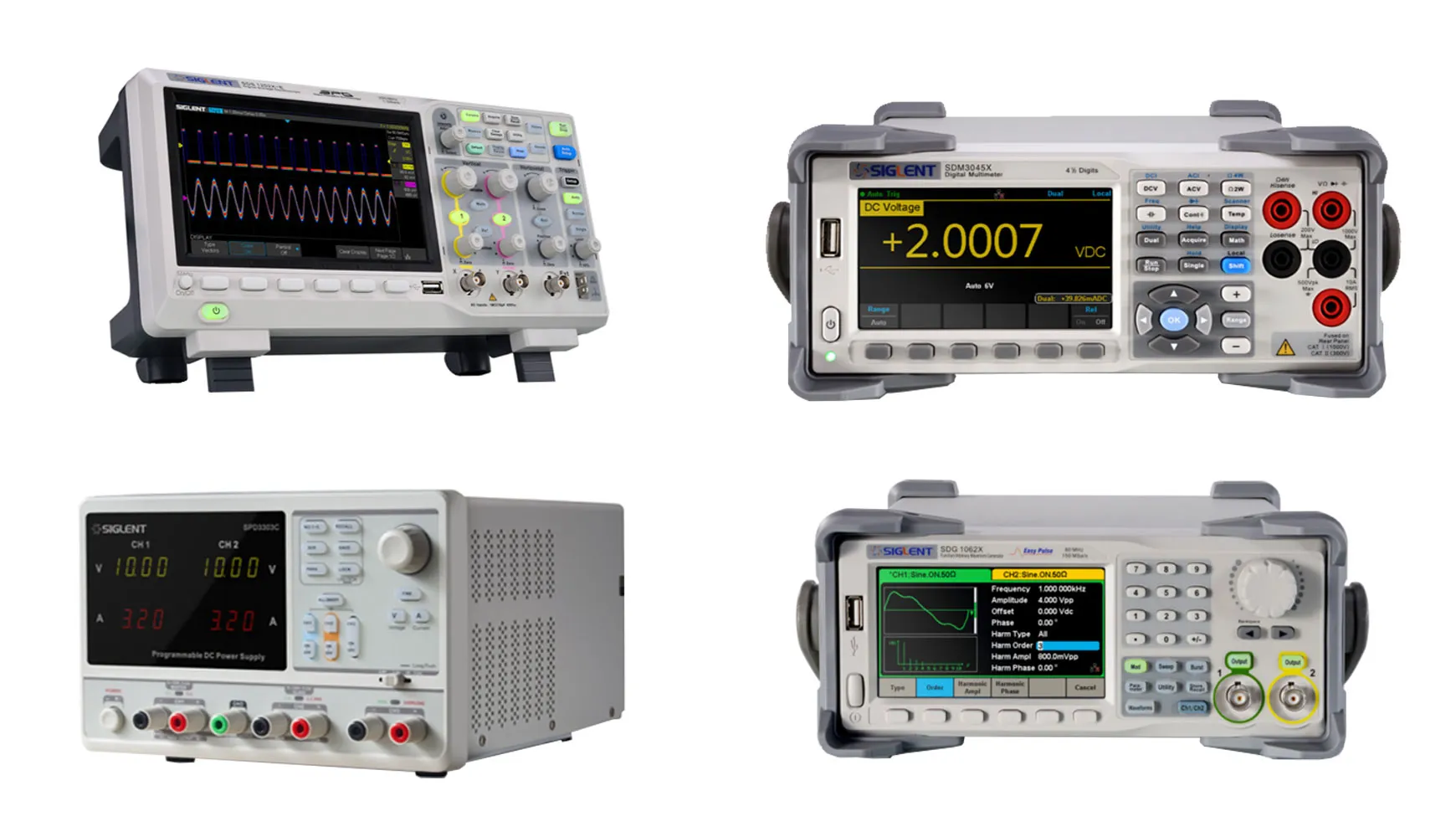

What's in the Bundle?

(1) SPD3303C: Programmable Linear DC Adjustable Power Supply

• Three independent outputs (2 channels of adjustable voltage, and one fixed set where 2.5V, 3.3V or 5V are selectable)
• Three output modes: independent, series, parallel
• 100V/120V, 220V/230V compatible design, to meet the need of different power grids
• Smart temperature controlled fan, effectively reduce the noise
• Save/Recall 5 group system specifications, support data storage expansion
• Comes with a USB cable, quick start guide, and user guide

(1) SDS120X-E: Dual Channel Digital Oscilloscope 200MHz 1GS/sec

• Super Phosphor Oscilloscope at 200 MHz bandwidth
• Real-time sampling rate up to 1 GSa/s
• Video trigger, supports HDTV
• True measurement and math of all sampled data points
• Supports SCPI remote control commands
• Large 7 inch TFT-LCD display with 800 x 480 resolution
• High Speed hardware based Pass/Fail function
• Supports Multi-language display and embedded online help

(1) SDG1032X: 30 MHz Waveform Generator with Frequency Counter

• Dual-channel, bandwidth up to 60 MHz, amplitude up to 20 Vpp
• 150 MSa/s sampling rate, 14-bit vertical resolution, and 16 kpts waveform length
• Innovative EasyPulse technology, generates lower-jitter Pulse waveforms and offers a wide range and extremely high precision in pulse width and rise/fall times adjustment
• Special circuit for Square wave function, (Square waves up to 60 MHz with jitter less than 300 ps+0.05 ppm of period)
• Sweep and Burst functions
• Harmonics Generator and Waveform Combining function

(1) SDM3045X: 4½-Digit Benchtop Digital Multimeter

• Up to 150 rdgs/s measurement speed
• True-RMS AC Voltage and AC Current measuring
• 1 Gb NAND flash size, Mass storage configuration files and data files
• USB Device, USB Host and LAN interfaces
• 4.3 inch 480x272 true color TFT-LCD large screen display
• USB & LAN remote interfaces support common SCPI command set. Compatible with other popular DMMs on the market
