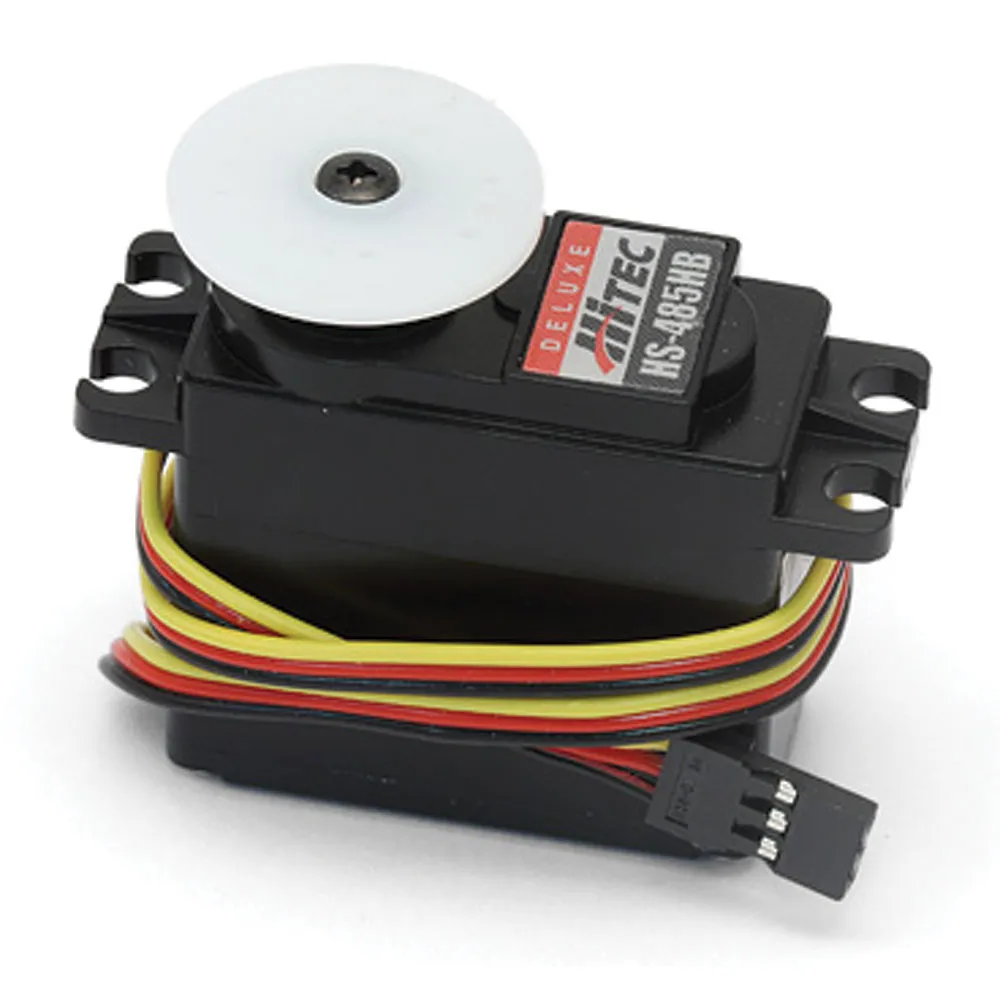

Deluxe HD Ball Bearing Servo
The HS-485HB updates the very popular HS-475HB by adding more torque and greater speed. With its top ball bearing, heavy duty, high impact Karbonite™ gears and high performance circuitry, the HS-485HB offers lots of torque and features excellent centering and resolution.Specifications:
| Motor Type: | 3 Pole |
| Bearing Type: | Top Ball Bearing |
| Speed (4.8V/6.0V): | 0.22 / 0.18 sec @ 60 deg. |
| Torque oz./in. (4.8V/6.0V): | 67 / 83 |
| Torque kg./cm. (4.8V/6.0V): | 4.8 / 6 |
| Size in Inches: | 1.57 x 0.78 x 1.49 |
| Size in Millimeters: | 39.88 x 19.81 x 37.85 |
| Weight ounces: | 1.59 |
| Weight grams: | 45.08 |
Warning: Do not use thread lockers on a Karbonite geared servo as it will cause the output shaft to fail.
Need the look at a datasheet? Click here!
Find out more about how servo motors work.
Dimensions & Appearance
Width:0.8 in.
Height:1.5 in.
Length:1.6 in.
Features
Rotation:Clockwise
Direction Type:180 Degree
Current Drain mA- Idle/No Load:8.8 / 180
No-Load Speed (4.8V):0.22 sec/60°
Stall Torque (4.8V):66.6 oz.in (4.8 kg.cm)
Stall Torque (6.0V):83.3 oz.in (6.0 kg.cm)
Motor Drive Type:Standard Servo
