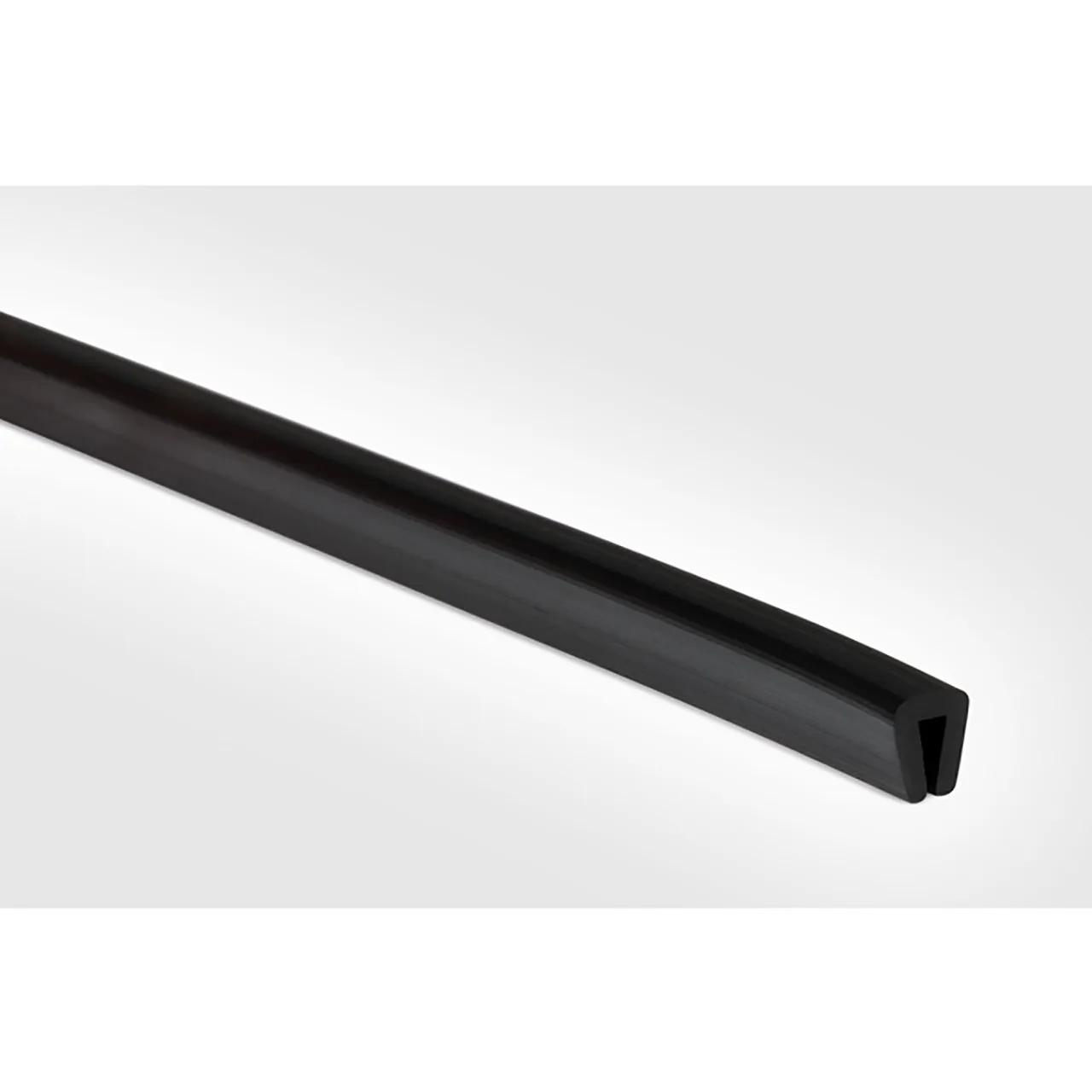

Self-Extinguishing Flexiform Grommet, Panel Thickness 0.039"-0.079", PVC, Black, 75m/roll

Features

• Fits in holes of all shapes and sizes without the aid of tools or adhesives, making installation easy. Easily cut to the right length with scissors, thus reducing stock and eliminating waste. Can be used on any type of material including wood, steel, aluminum, plexiglass and glass, ensuring flexibility of application.
• Product Type: Grommet Edging - Special Materials

Technical Specifications

• Material: Polyvinylchloride (PVC)
• Operating Temperature: -85°F to +221°F (-65°C to +105°C)
• Color: Black (BK)
• Storage Conditions: Store in a sealed package. Avoid direct heat sources and sunlight. Ideal storage conditions: 73°F (22.8°C), 50% RH
• Use Conditions: For Indoor Use Only
• Focused Markets and Industries: Electronics Industry
• Height H (Imperial): 0.248"
• Height H (Metric): 6.3 mm
• Height H2 (Imperial): 0.193"
• Height H2 (Metric): 4.9 mm
• Length L (Imperial): 246.1 ft
• Length L (Metric): 75 m
• Panel Thickness (Imperial): 0.04 - 0.08"
• Panel Thickness (Metric): 1.0 - 2.0 mm
• Panel Thickness Max. (Imperial): 0.08"
• Panel Thickness Max. (Metric): 2.0 mm
• Panel Thickness Min. (Imperial): 0.04"
• Panel Thickness Min. (Metric): 1.0 mm
• Reel Length (imperial): 246.1 ft
• Reel Length (metric): 75 m
• Weight (Lbs) per 1 Content Unit without Packaging: 0.078594796403
• Width W (Imperial): 0.1969"
• Width W (Metric): 5.0 mm
• Width W2 (Imperial): 0.039"
• Width W2 (Metric): 1.0 mm
• Width W3 (Imperial): 0.07"
• Width W3 (Metric): 1.8 mm
• Width W4 (imperial): 0.165"
• Width W4 (metric): 4.2 mm
• CE Certified: No
• CSA Certified: No
• Flammability: UL 94 HB
• Halogen Free: No
• Hazardous Goods: No
• Prop65 Warning: No
• REACH Conformity: Yes
• ROHS Compliant: Yes
• UL Listed (US): No
• UL Listed (US and Canada): No
• UL Recognized (US): No
• UL Recognized (US and Canada): No
• UV Resistant (Yes/No): No
• UPC: 089306253280

Overview

EdgeGuard is used to cover panel edging to protect cables, prevent chafing and provide an attractive finish.The EdgeGuard is manufactured from a flexible PVC compound ensuring ease of use.
