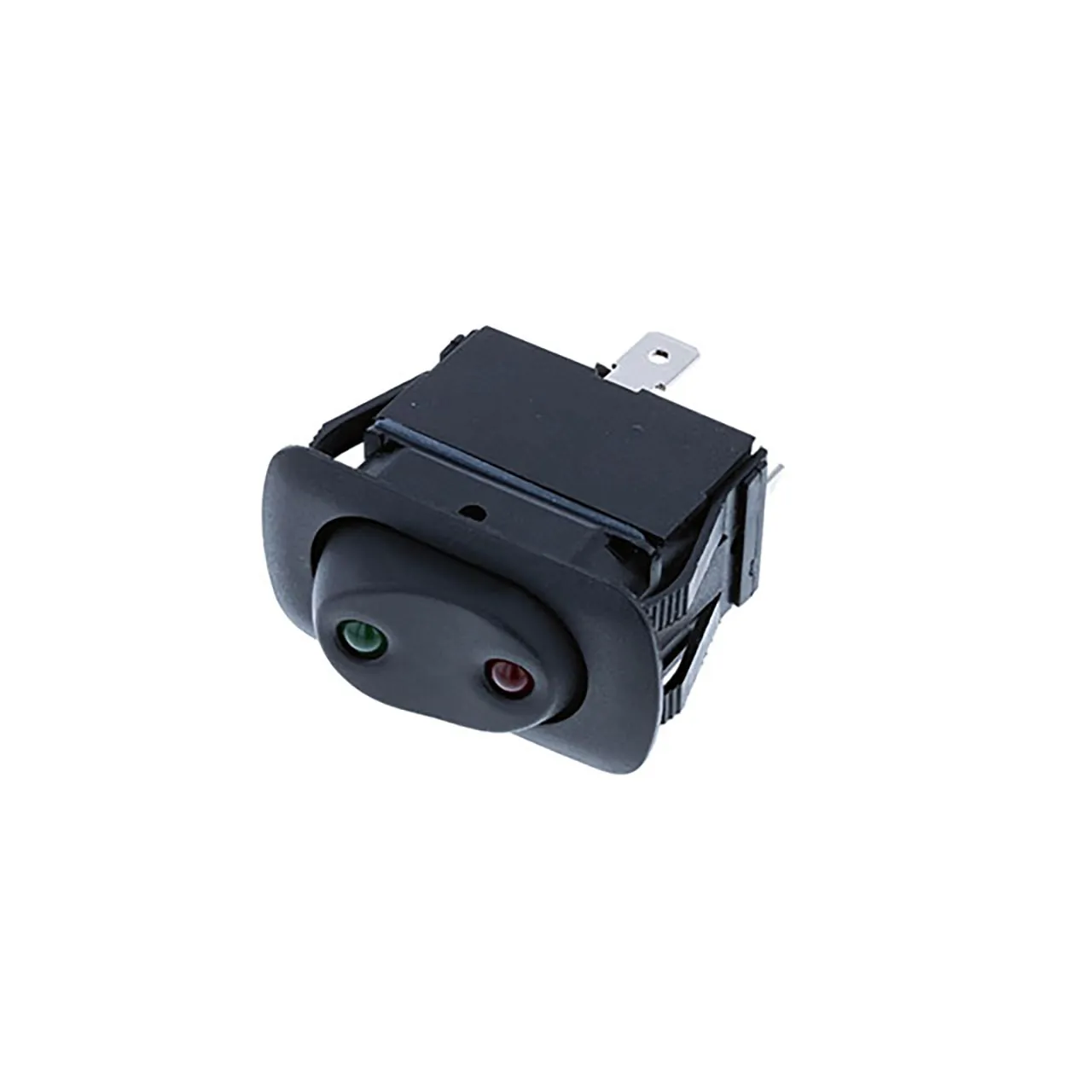

Sealed Rocker (IP56) Waved - 4P SPDT ON-ON Red/Green LEDs

Features

  • Series: SRA2
  • Mounting Type: Panel Mount, Snap-In
  • Circuit: SPDT
  • Switch FunctiON: ON-ON
  • Current Rating (Amps): 21A (DC)
  • Voltage Rating - DC: 14 V
  • Actuator Type: Oval - Illuminated
  • Color - Actuator/Cap: Black
  • Actuator Marking: No Marking
  • Illumination Type, Color: LED, Green/Red
  • Illumination Voltage (Nominal): 14 VDC
  • Termination Style: Quick Connect - 0.250" (6.3mm)
  • Ingress Protection: IP56 - Dust Protected, Water Resistant
  • Panel Cutout Dimensions: Rectangular - 36.60mm x 21.20mm
  • Operating Temperature: -20°C to 85°C
  • Approval Agency: CSA, cURus, ENEC
  • Product Type: Rocker Switch
  • Harmonized Code: 8536.50.4000
  • ECCN: EAR99
  • 360 Animation Download (.zip)

Overview

Sealed Rocker (IP56) Waved - 4P SPDT ON-ON, Red/Green LEDs.

Product Identification

Product Type:Rocker Switch

Compliance

RoHS Status:ROHS Compliant

Dimensions & Appearance

Body Color:Black
Mounting Style:Panel Mount, Snap-In

Features

Pins:4
Color - Actuator/Cap:Black (No Marking)
Termination Style:Quick Connect - 0.250" (6.3mm)
Illumination Type:LED, Green/Red
IP Rating:IP56 - Dust Protected, Water Resistant
Switch Function:ON-ON
Actuator Type:Oval - Illuminated
Contact Form:SPDT
Current Rating:21 A @ 14 VDC
,
