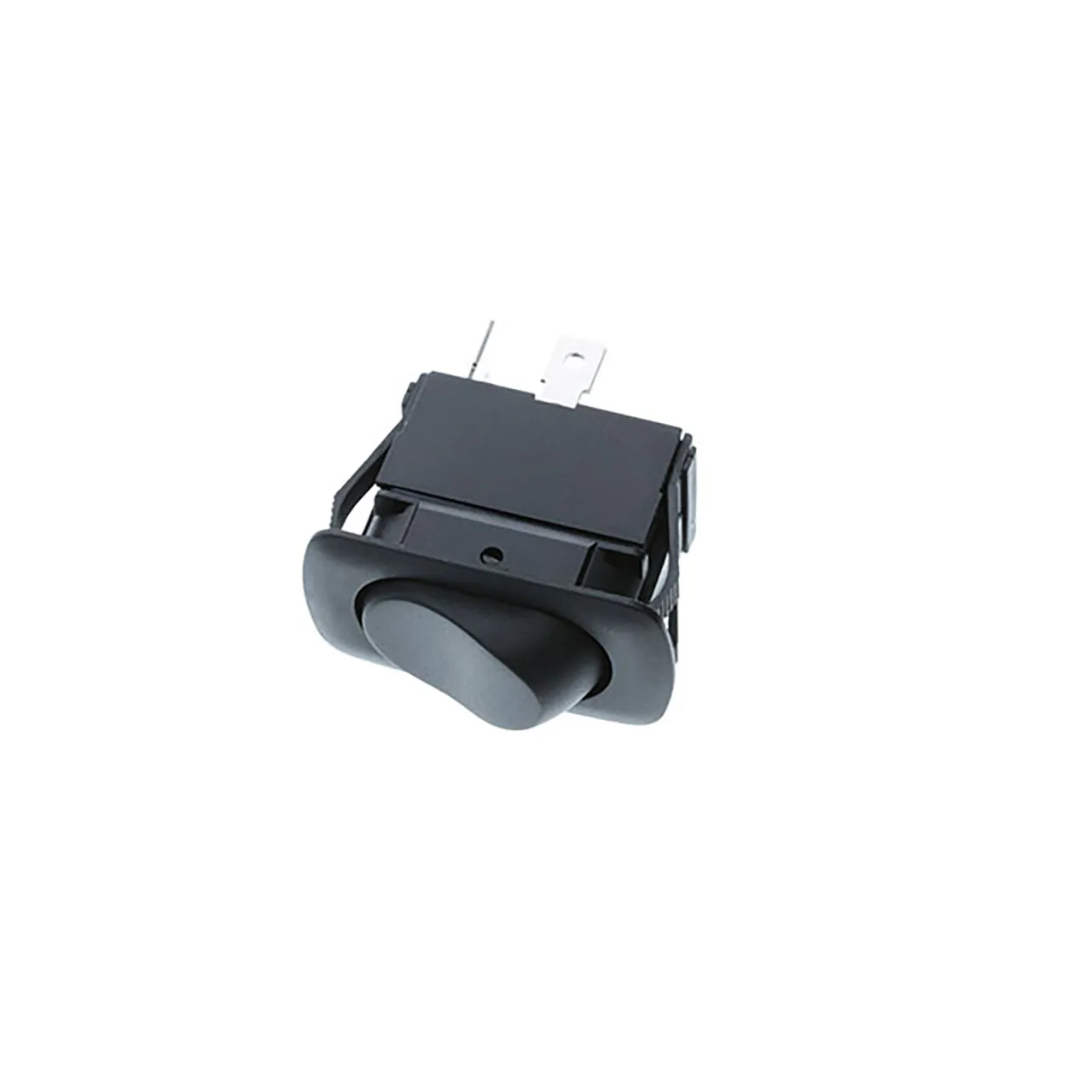

Sealed Rocker (IP56) Waved - 4P DPST OFF-(ON)

Features

• Series: SRA1
• Mounting Type: Panel Mount, Snap-In
• Circuit: DPST-NO
• Switch FunctiON: OFF-MOM
• Current Rating (Amps): 18 (AC), 21 (DC)
• Voltage Rating - AC: 125 V
• Voltage Rating - DC: 14 V
• Actuator Type: Concave (Curved)
• Color - Actuator/Cap: Black
• Actuator Marking: No Marking
• Termination Style: Quick Connect - 0.250" (6.3mm)
• Ingress Protection: IP56 - Dust Protected, Water Resistant
• Panel Cutout Dimensions: Rectangular - 36.60mm x 21.20mm
• Operating Temperature: -20°C to 85°C
• Approval Agency: CSA, cURus, ENEC
• Product Type: Rocker Switch
• Harmonized Code: 8536.50.4000
• ECCN: EAR99
• 360 Animation Download (.zip)

Overview

Sealed Rocker (IP56) Waved - 4P DPST OFF-(ON).
