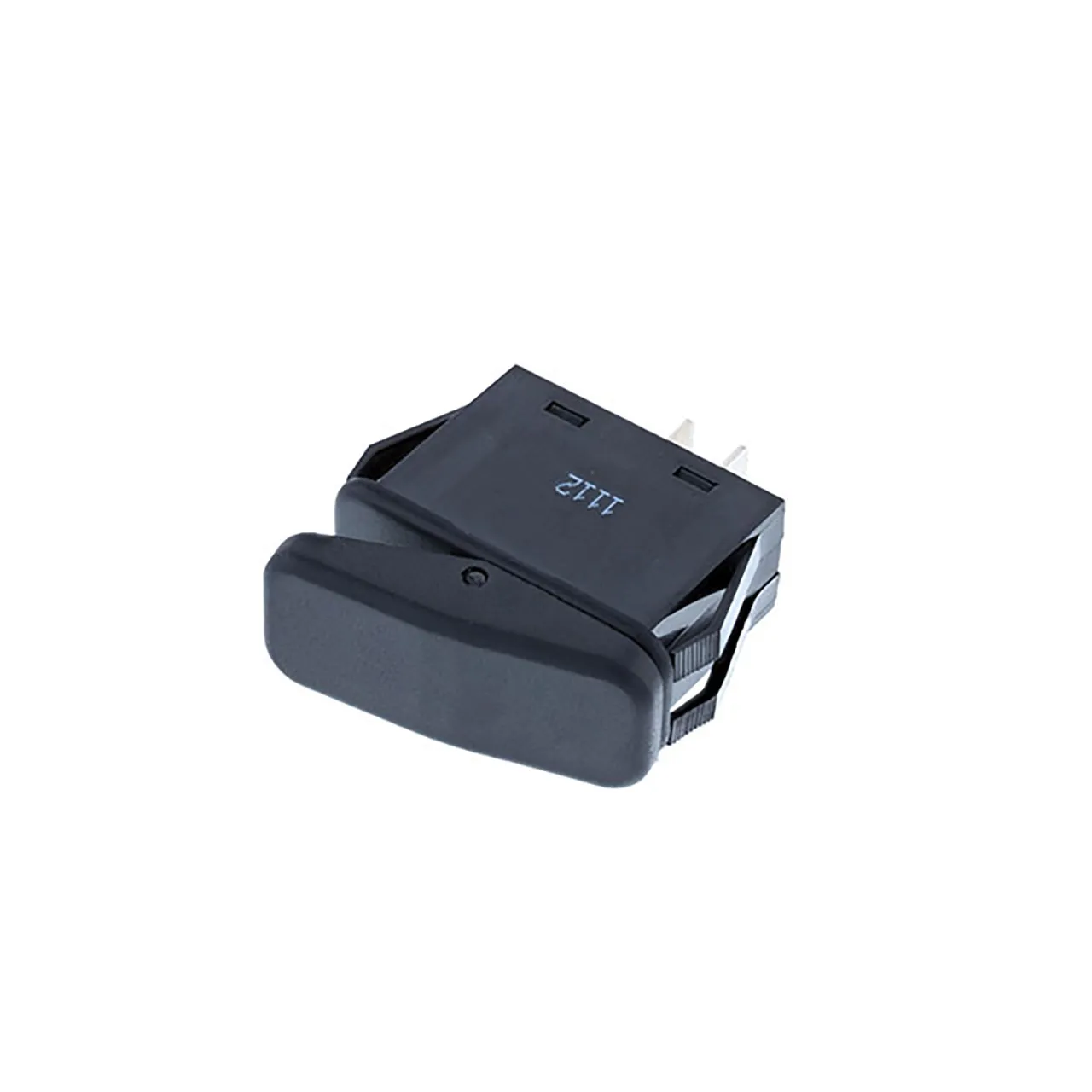

Sealed Rocker (IP56) Flat - 2P SPST OFF-ON

Features

  • Series: SRC1
  • Mounting Type: Panel Mount, Snap-In
  • Circuit: SPST
  • Switch FunctiON: ON-OFF
  • Current Rating (Amps): 20 (AC), 20 (DC)
  • Voltage Rating - AC: 125 V
  • Voltage Rating - DC: 14 V
  • Actuator Type: Convex (Reverse V)
  • Color - Actuator/Cap: Black
  • Actuator Marking: No Marking
  • Termination Style: Quick Connect - 0.250" (6.3mm)
  • Ingress Protection: IP56 - Dust Protected, Water Resistant
  • Panel Cutout Dimensions: Rectangular - 36.80mm x 15.30mm
  • Operating Temperature: -20°C to 85°C
  • Product Type: Rocker Switch
  • Harmonized Code: 8536.50.4000
  • ECCN: EAR99
  • 360 Animation Download (.zip)

Overview

Sealed Rocker (IP56) Flat - 2P SPST OFF-ON.

Product Identification

Product Type:Rocker Switch

Dimensions & Appearance

Mounting Style:Panel Mount, Snap-In
Height:0.47 in.
Width:0.71 in.
Length:1.65 in.
Body Color:Black

Features

Pins:2
Color - Actuator/Cap:Black (No Marking)
Termination Style:Quick Connect - 0.250" (6.3mm)
Lead Spacing A (inch):0.270
UL Flammability Code:N/A
Illumination Type:None
Switch Function:ON-OFF
IP Rating:IP56 - Dust Protected, Water Resistant
Actuator Type:Convex (Reverse V)
Actuator Length:0.390 in.
Contact Form:SPST
Current Rating:20A @ 14VDC, 10A @ 24VDC, 20A @ 125VAC
,
