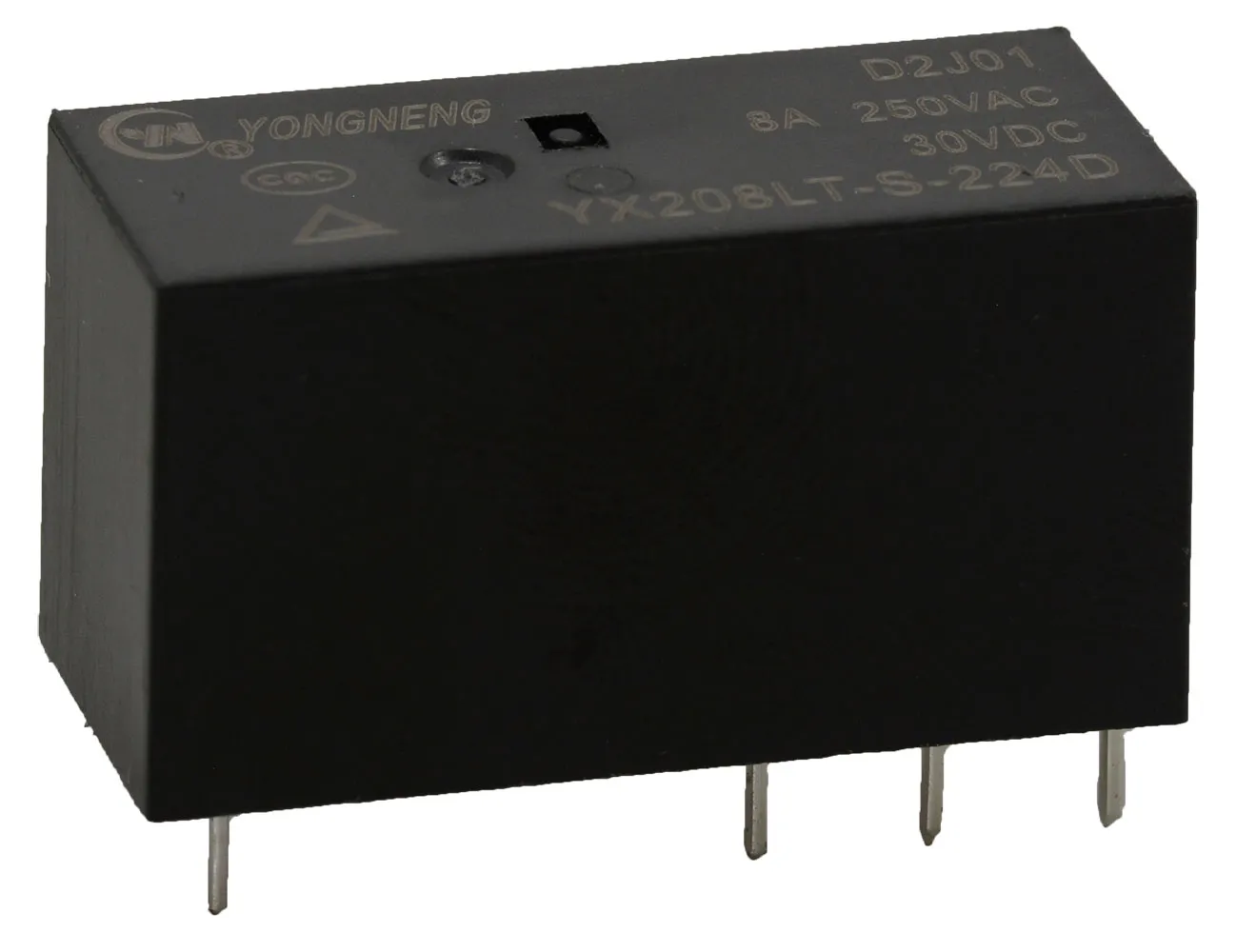

Sealed DPDT General Purpose 24V Power PCB Relay

Clearance

Jameco Part #:

Manufacturer #:

Product Price:

$2.950

In Stock: 0

Quantity	Unit Price	You Save	Discount
1+	$2.950	-	-
10+	$2.590	0.36	12.2%
50+	$2.290	0.66	22.37%
100+	$1.950	1.00	33.9%

Rated load: 5A @ 250VAC/30VDC (resistive); 2A @ 250VAC, 3A @ 30VDC (inductive)
Rated voltage: 24 VDC
Rated current: 16.7 mA
Coil resistance: 1440 Ω
Creepage distance of 8.0 mm min. between coil and contact.
Non-latching, 2-pole
Highly stable magnetic circuit for latching endurance and excellent resistance to vibration and shock.
Safety-oriented design assuring high surge resistance: 10,000 V min. between coil and contacts.
UL recognized / CSA certified. RoHS Complaint

Dimensions & Appearance

Height:0.63 in.

Width:0.50 in.

Length:1.15 in.

Coil Voltage:24 VDC

Contact Form:DPDT

Coil Resistance:1440 Ohm

Termination:PC Pin

Current Rating:8 A
