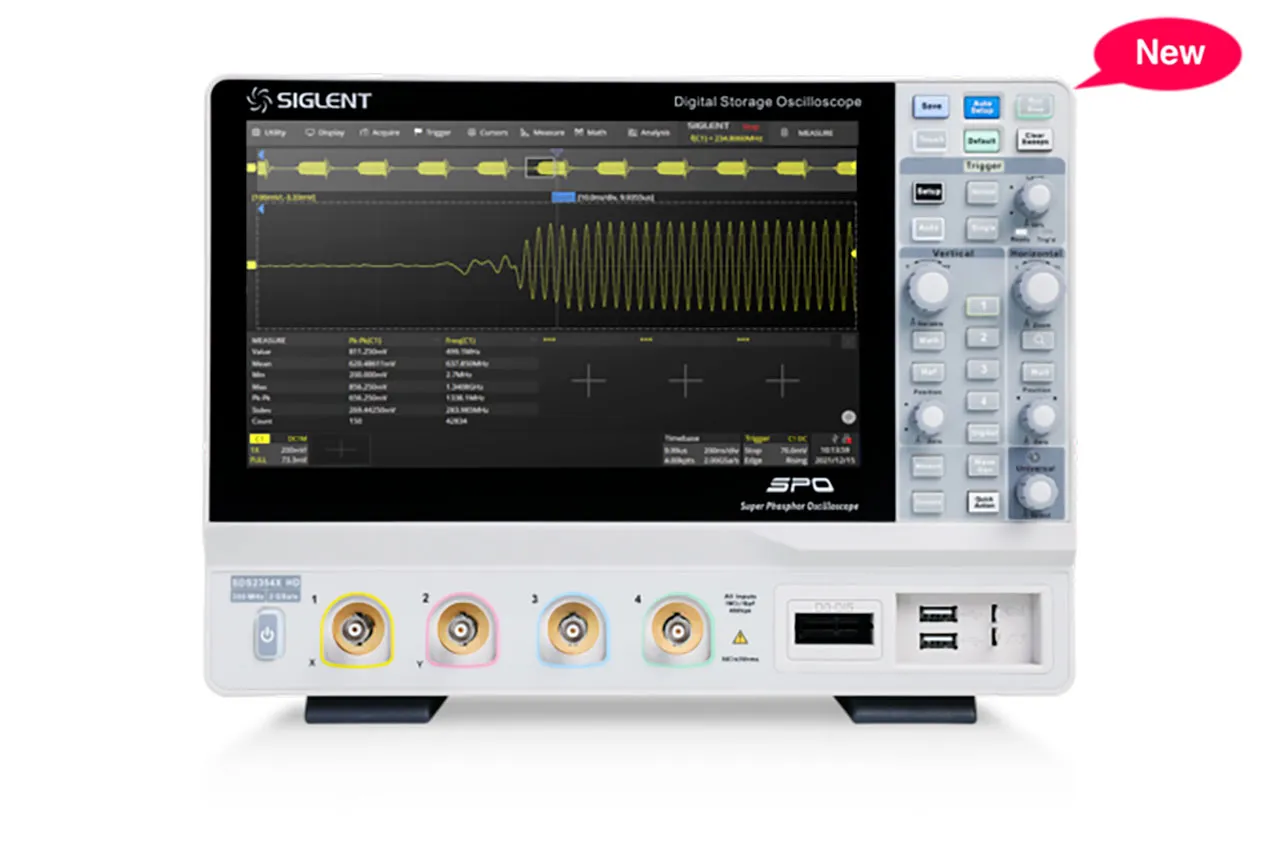

SDS2354X HD Digital Storage Oscilloscope 350 MHz

Specifications

• Bandwidth: 350 MHz
• Channels: 4+EXT
• Real time sampling rate: 2 GSa/s
• 500,000 wfm/s (Sequence mode)
• Memory depth: 200 Mpts/ch
• 12-bit High Resolution
  • 12-bit Analog-Digital Convertors with sample rate up to 2 GSa/s
  • Front ends with 70 µVrms noise floor @ 500 MHz bandwidth and 0.5% DC gain accuracy
• 4 analog channels, up to 350 MHz bandwidth (upgradable to 500 MHz)
• SPO technology
  • Supports 256-level intensity grading and color temperature display modes
  • Up to 200 Mpts/ch record length
  • Digital trigger system
• Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
• Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT and Manchester
• Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
• History waveform record (History) function, the maximum recorded waveform length is 80,000 frames
• Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History and Ref
• 2 Math traces (2 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
• Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode plot and Power Analysis
• High Speed hardware-based Average, ERES; High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
• Built-in 25 MHz waveform generator
• Large 10.1" TFT-LCD display with 1024 * 600 resolution; Capacitive touch screen supports multi-touch gestures
• Interfaces include: USB Hosts, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out
• Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard

Support and Resources

• Software (off-site)
• Firmware (off-site)
• Drivers (off-site)
• Scripts and Others (off-site)
• Documents (off-site)
• Operating Tips (off-site)
• Videos (off-site)

Upgrade Options

• 25 MHz built-in function generator option (software)
• MSO function (software), use with SPL2016 probe
• Logic Probe, 16-channel, 500 MSa/s
• Power Analysis: Power Quality, Current Harmonics, Inrush Current, Switching Loss, Slew Rate, Modulation, Output Ripple, Turn On/Off, Transient Response, PSRR, Efficiency
• I2S trigger & decode (software)
• MIL-STD-1553B trigger & decode (software)
• FlexRay trigger & decode (software)
• CAN FD trigger & decode (software)
• SENT trigger & decode (software)
• Manchester decode (software)
• Upgrade bandwidth from 350 MHz to 500 MHz
