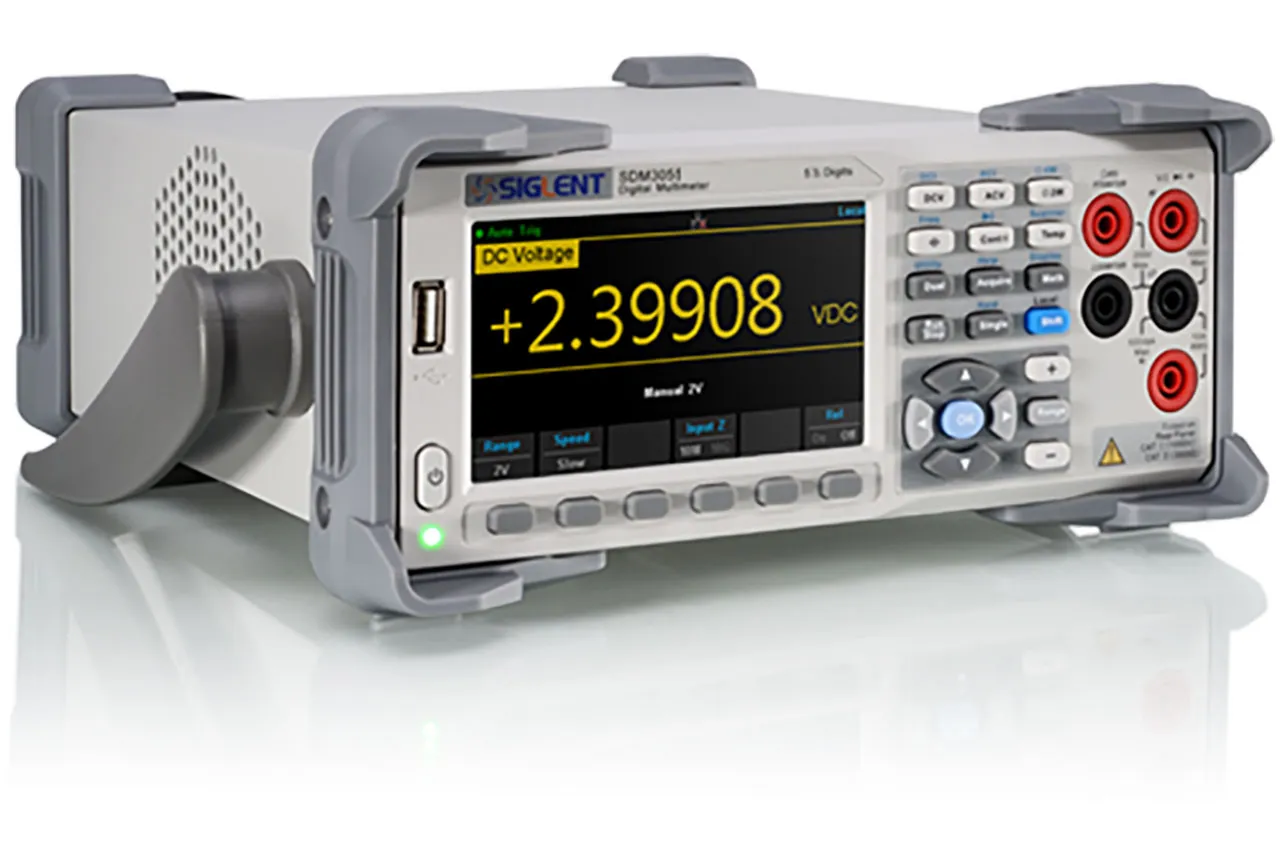

SDM3055 + Scanner Card 5 ½ Digits Dual-Display Digital Multimeters

The SDM3055 digital multimeter and SDM3055-SC digital multimeter are designed with 5 ½ digits readings resolution and dual-display, especially fitting to the needs of high-precision, multifunction, and automatic measurement.

The SIGLENT SDM3055-SC includes a multiplexer that provides multi-point measurement capabilities. The scanner features 12 multi-purpose + 4 current channels and supports the following measurement functions: DCV, ACV, DCI, ACI, 2WR, 4WR, CAP, FREQ, DIODE, CONT and TEMP (RTD and Thermocouple). It provides a convenient and versatile solution for test applications that require multiple measurement points or signals and is an ideal tool for R&D burn-in and production testing.

Key Features

• Reading Resolution: 5 1/2
• DC Voltage Accuracy in a Year: 0.015% of reading + 0.003% of range
• DC Voltage Measurement Range: 200 mV - 1000 V
• AC Voltage Measurement Range: 200 mV - 750 V
• DC Current Measurement Range: 200 µA - 10 A
• Built-in cold terminal compensation for thermocouple temperature measurements
• With easy, convenient, and ?exible PC software: EasyDMM
• Standard interfaces: USB Host, LAN (Optional Accessories USB-GPIB Adapter)
• Support remote control operation via SCPI commands. Compatible with commands of mainstream multimeters
