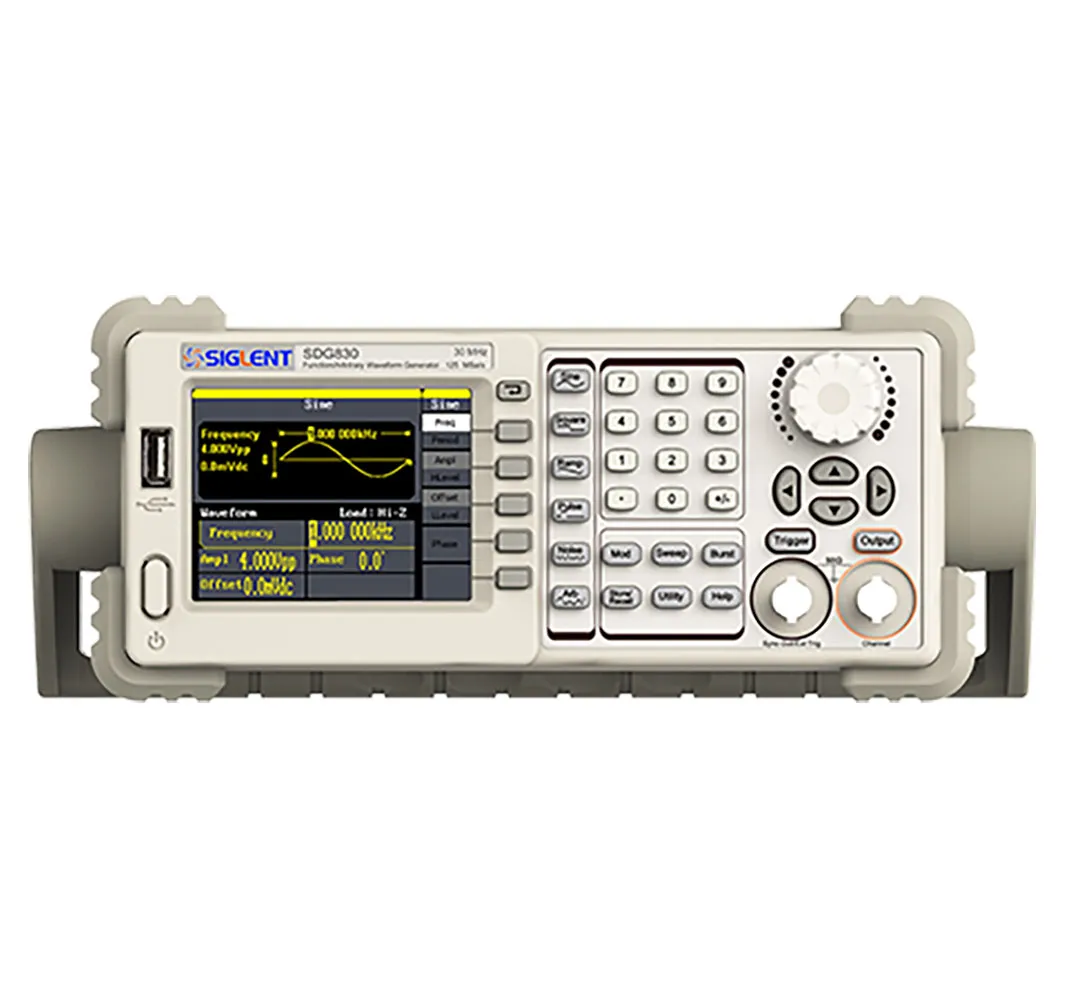

SDG830 30 MHz Function & Arbitrary Waveform Generator 125MS

SDG800 series Function/Arbitrary Waveform Generator is a new family member of SIGLENT with friendly design: 3.5 inch TFT-LCD display, Built-in Chinese/English language, Online help function, Support U click and internal storage, facilitative files management.

Specifications

• DDS Technology
• Max Output Frequency: 30 MHz
• Output Channels: 1
• Sample Rate: 125 MSa/s
• Arbitrary Waveform Length: 16 kpts
• Frequency Resolution: 1 uHz (1 µHz)
• Vertical Resolution: 14 bits
• Waveform: Sine, Square, Ramp, Pulse, Gaussian Noise. 46 built-in arbitrary waveforms (includes DC)
• Modulation: AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, Burst
• Standard Interface: USB Hose & USB Device
• Size: 9.02"W x 4.13"H x 11.06"D (229 x 105 x 281 mm)

Applications

• Analog sensor
• Simulation environment signals
• Circuit function test
• IC test
• Research and training
