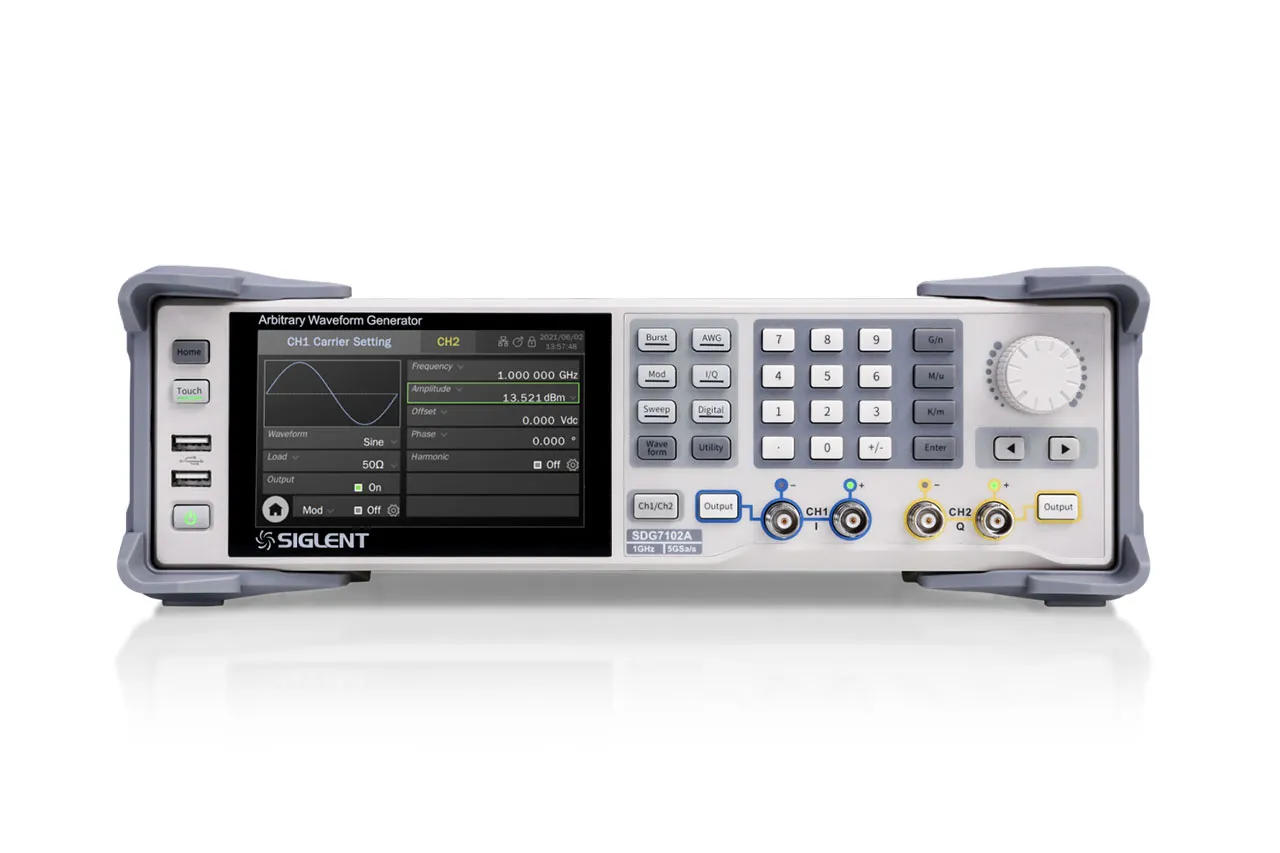

SDG7102A Arbitrary Waveform Generator 1 GHz

Key Features

• Max Output Frequency: 1 GHz
• Generates arbitrary waveform with sample rates of 0.01 Sa/s ~ 2.5 GSa/s
• Max Sampling Rate: 5 GSa/s
• Vertical Resolution: 14-bit
• Waveform Length: 512 Mpts
• Channels: 2 Differential/Single-ended
• Generates low jitter pulses with 1 ns minimum pulse width and 500 ps minimum edge
• Up to 1 GHz bandwidth and White Gaussian Noise with adjustable bandwidth
• PRBS up to 312.5 Mbps
• LVTTL and LVDS Digital bus options for digital signal sourcing up to 1 Gbps
• Includes popular analog/digital modulation types, sweeping and bursting functions
• Enhanced dual-channel operation functions: inter-channel tracking, coupling, and copying
• Dual-channel superposition function
• Mutual modulation between channels
• The 24 Vpp analog output is superimposed with ± 12 Vdc offset to provide a maximum output range of ± 24 V (48 V)
• High precision Frequency Counter
• 5-inch capacitive touch screen with a resolution of 800×480
• External mouse and keyboard operation
• WebServer to control the instruments remotely without downloading software
• Includes 10 MHz In, 10 MHz Out, Trigger In/Out, and Marker sync connections
• Full SCPI command manual for easy integration into test systems

Support and Resources

• Software (off-site)
• Firmware (off-site)
• Drivers (off-site)
• Scripts and Others (off-site)
• Documents (off-site)
• Operating Tips (off-site)
• Videos (off-site)

Upgrade Options

• High accuracy clock source (Assembled in factory only)
• Digital Bus Kit-LVTTL (Hardware)
• Digital Bus Kit-LVDS (Without RF cables) (Hardware)
• Digital Bus Kit-LVDS (With 32 RF cables) (Hardware)
• IQ Signal Generator Function (software)
